Troubleshooting
4-114 Samsung Electronics
4-4-70 Fan IPM Overheat error
Outdoor unit
display
(FAN1 PCB)
(FAN2 PCB)

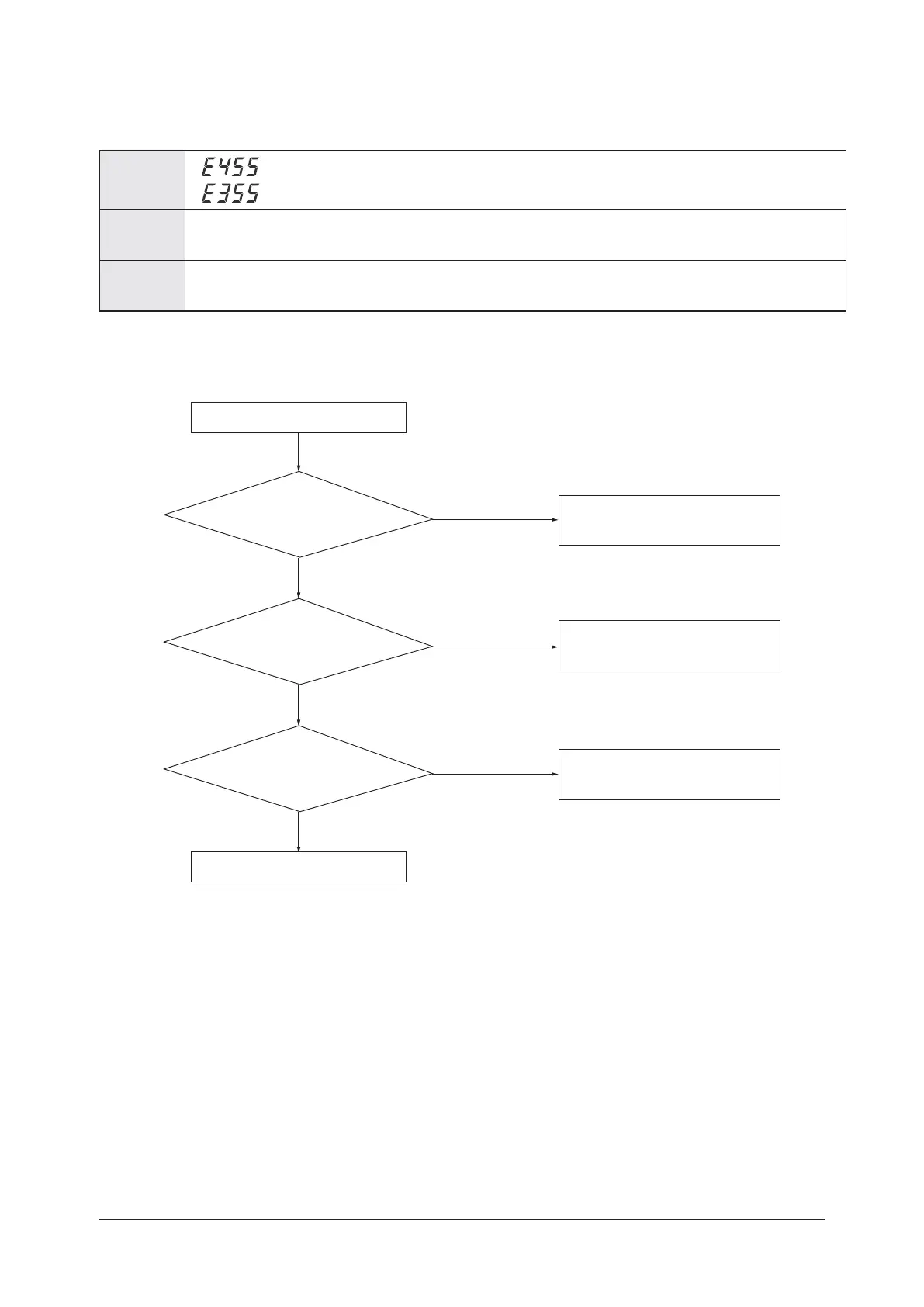

Judgment
Method
IPM internal temperature more than 85°C (E455, E355)
Cause of prob-
lem
Heat sink and IPM assembly defective.
Defective heat sink cooling
Power Off
Yes
Did check the foreign objects between
the heat sink pin?
Remove foreign objects
*Cold heat sink assembly defect occurs.
No
Yes
Is the bolt of the heat sink fully tightened?
Tighten Bolt
No
Yes
Did check the foreign objects between
the heat sink and IPM?
No
1.
Cause of problem
Complete
Remove foreign objects and
apply the heat sink grease.
And then reassembly
To Next Page
