Disassembly and Reassembly
Samsung Electronics 3-97
QGlobal Mini 4way
No Parts Procedure Remark

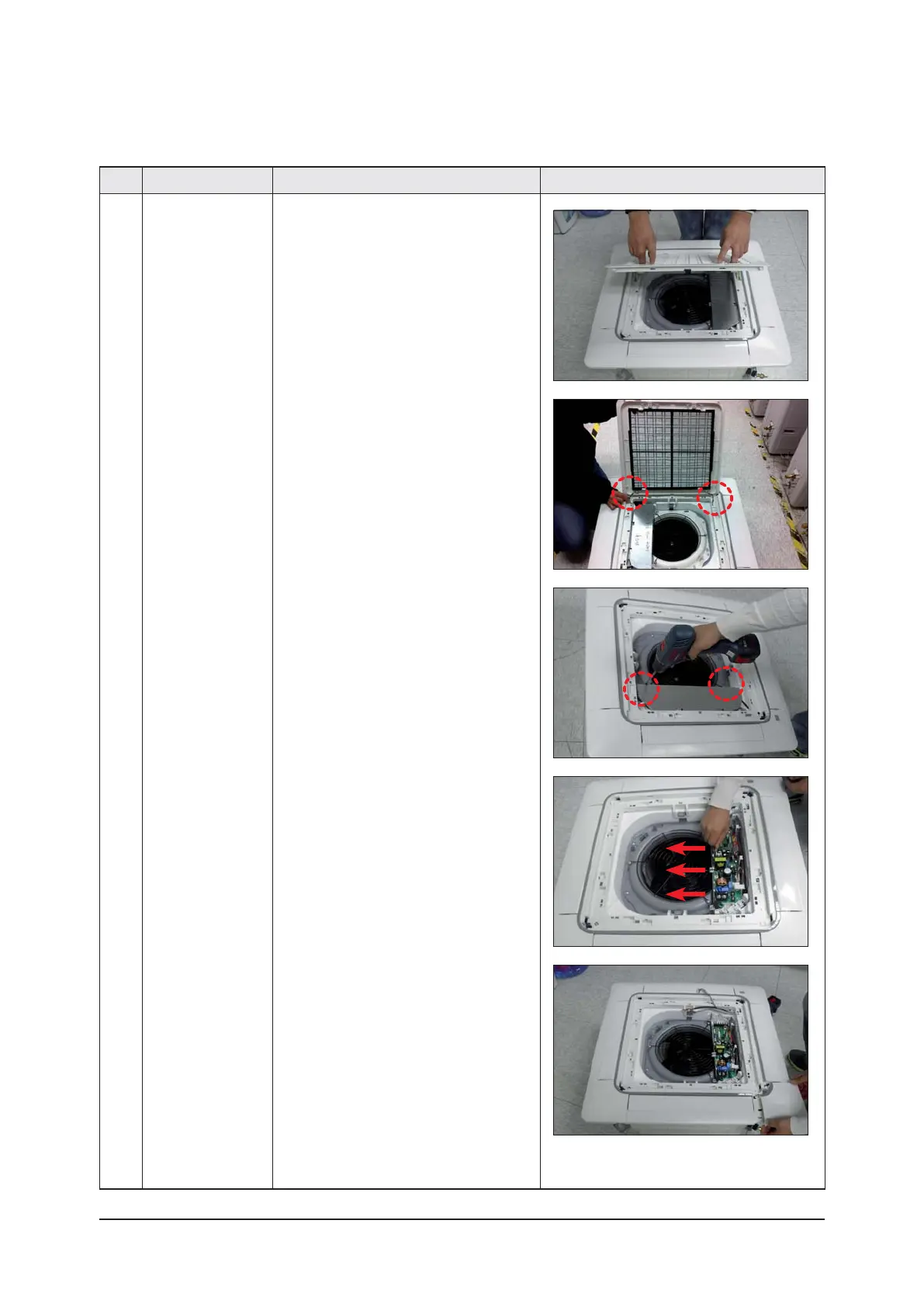

1 Panel 1) Pull both hooks and take the grille down-
ward. Two safety clips are mounted to the
front grille to prevent it from dropping.
2) Detach the safity clip and take up the grille.
3) Remove the 2 fixed screws to remove the
Control-Box Cover. (Use +Screw Driver)
4) Remove the Remocon-Receiver and Blade
Connector Wire from the PBA. (3EA)
5) Push the 4 panel corners and cover down-
wards to remove it.
To Next Page
