PCB Diagram and Parts List
Samsung Electronics 5-9

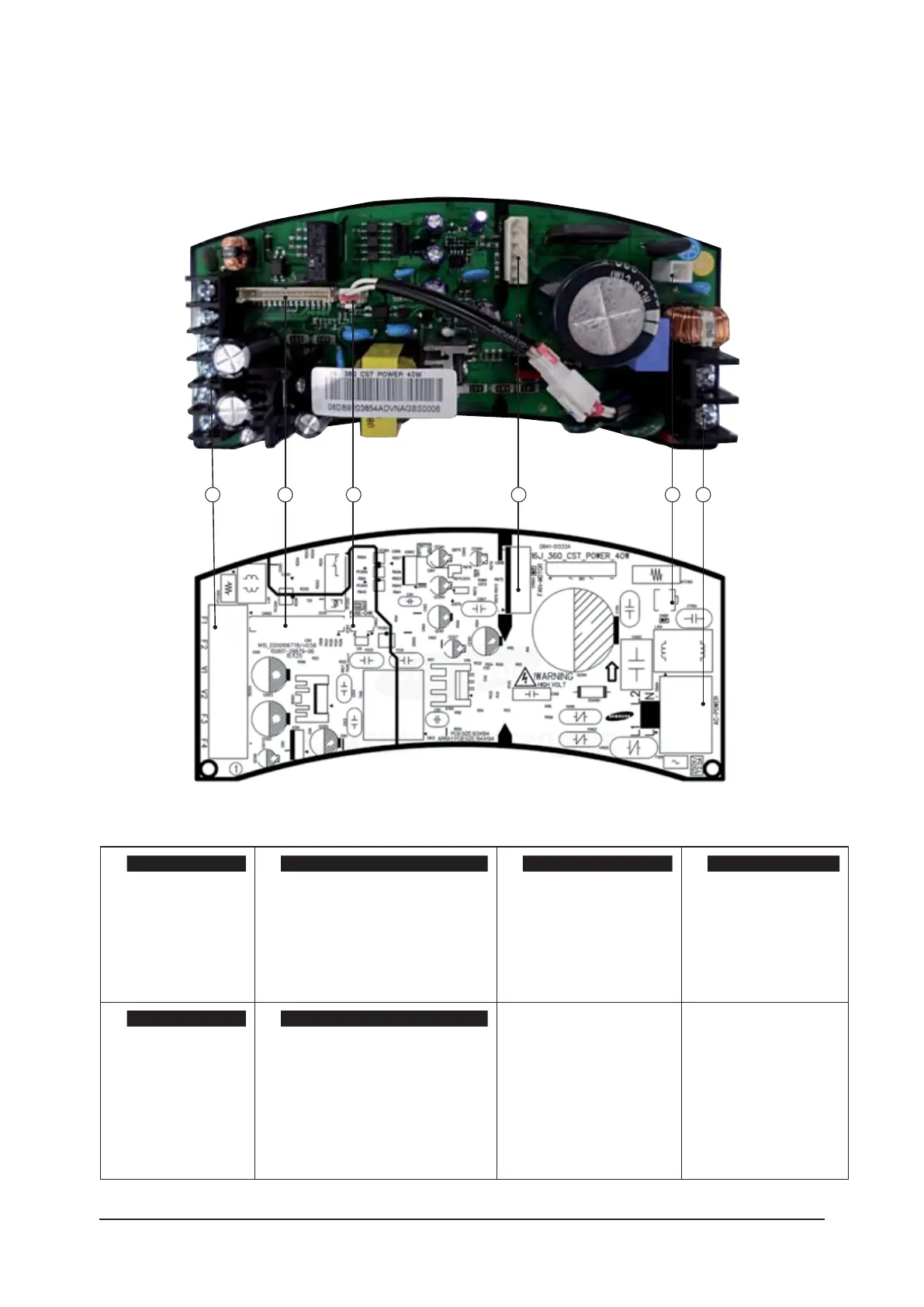

5-1-5 Indoor Unit Power PCB
123465
①
TB100  POWER T/B
②
CN101  EARTH
③
CN900  MAIN FAN MOTOR
④
CN102  THERMAL FUSE
#1 : POWER CORD CONNECTION  L
L1
#2 : POWER CORD CONNECTION  N
L2
#1 : EARTH PBA  SET GND CN81
#1 : 310V DC LINK
#2 : NC
#3 : PGND
#4 : 15V VCC
#5 : MAIN FAN MOTOR PWM
#6 : MAIN FAN MOTOR F/B
#1 : FUSE SHORT/OPEN CHK
#2 : SGND
⑤
TB300  COMM. T/B
⑥
CN100  POWER TO MAIN CONNECTOR
#1 : F1  INDOOR/OUTDOOR COMM.
#2 : F2  INDOOR/OUTDOOR COMM.
#3 : V1  12V
#4 : V2  SGND
#5 : F3  WIRED REMOTE CONTROL
COMM.
#6 : F4  WIRED REMOTE CONTROL
COMM.
CN81
#1, 3 : 12V
#2 : ERROR CHK 12V JUNCTION
#4 : COMP CHK 12V JUNCTION
CN83
#1 : EXT_CTRL 5V
#2 : SGND
