PCB Diagram and Parts List
5-10 Samsung Electronics

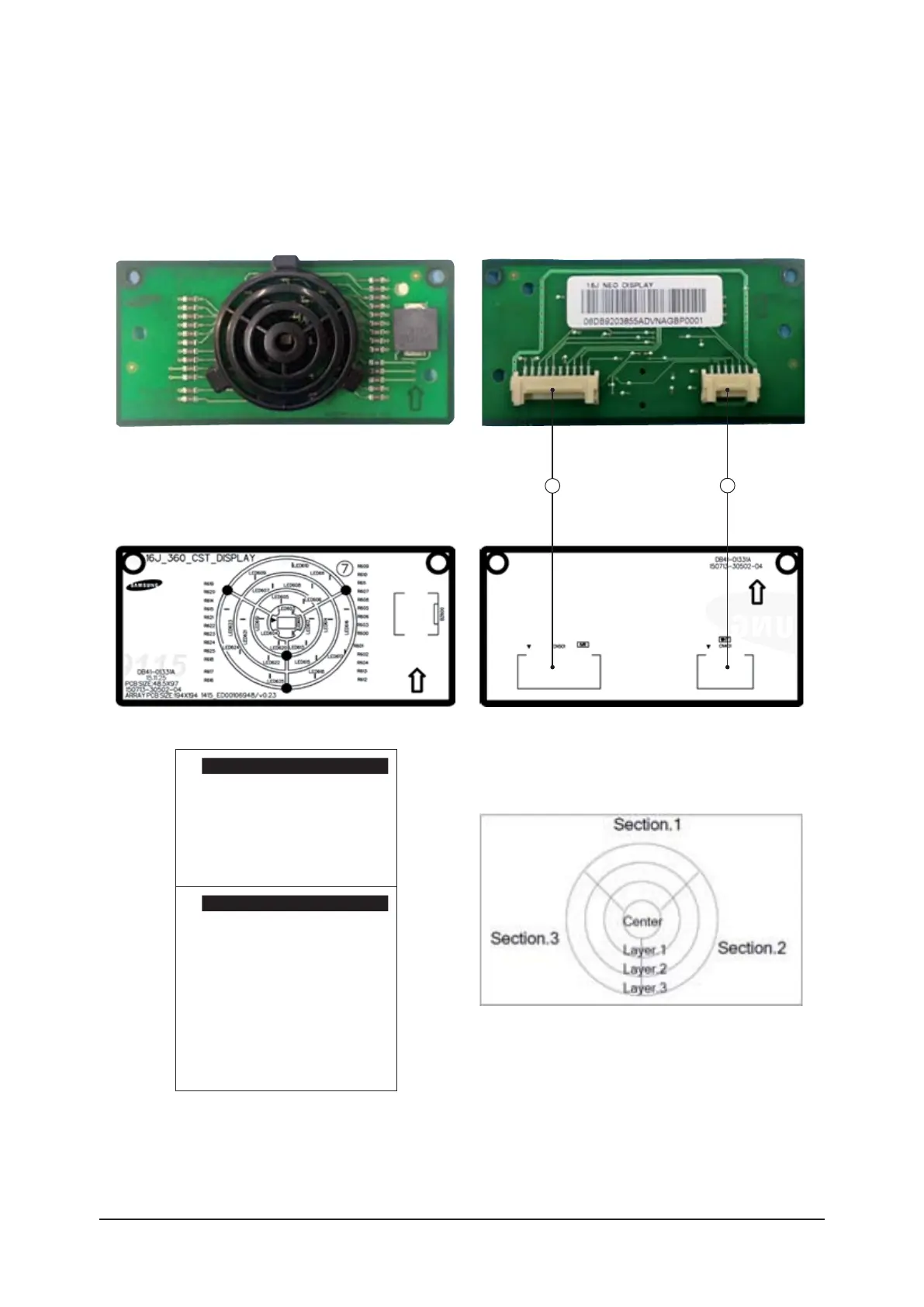

5-1-6 Display PCB
■
360 Cassette
1
2
①
CN401 DISPLAY 1
#1 : 12V
#2 : VISUALIZATION LED_SECTION2, LAYER2
#3 : VISUALIZATION LED_SECTION2, LAYER3
#4 : VISUALIZATION LED_SECTION3, LAYER1
#5 : VISUALIZATION LED_SECTION3, LAYER2
#6 : VISUALIZATION LED_SECTION3, LAYER3
②
CN501 DISPLAY 2
#1 : BUZZER1
#2 : BUZZER2
#3 : CENTER 3 COLOR LED BLUE
#4 : CENTER 3 COLOR LED GREEN
#5 : CENTER 3 COLOR LED RED
#6 : CENTER LED ICE BLUE
#7 : VISUALIZATION LED_SECTION1, LAYER1
#8 : VISUALIZATION LED_SECTION1, LAYER2
#9 : VISUALIZATION LED_SECTION1, LAYER3
#10 : VISUALIZATION LED_SECTION2, LAYER1
