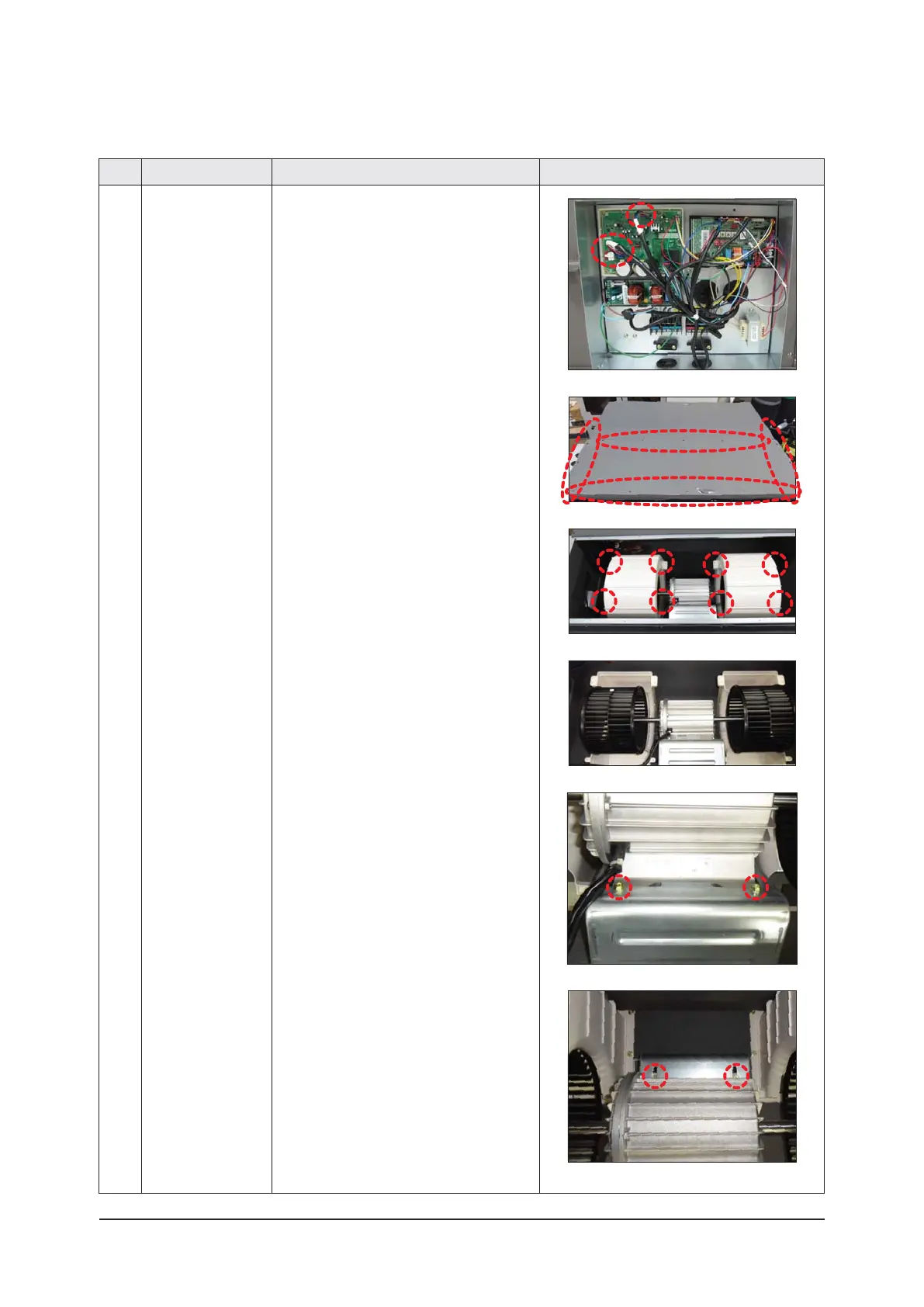

Disassembly and Reassembly
3-18 Samsung Electronics
No Parts Procedure Remark
1 MOTOR
&
BLOWER
1) Detach the motor connectors from the PCB.
2) Unscew 16 screws and detach Cabinet-Base
Blower. (Use+Screw Driver)
3) Unscrew 8 screws and detach Case-Blower.
(Use +Screw Driver)
4) Unscrew 4 bolts and separate Motor &
blower from Bracket-Motor.
(Use +Screw Driver)
QBIG DUCT
