6 5 422 21 13 11 1012 9 8* 720 19 18 17 1516 1423

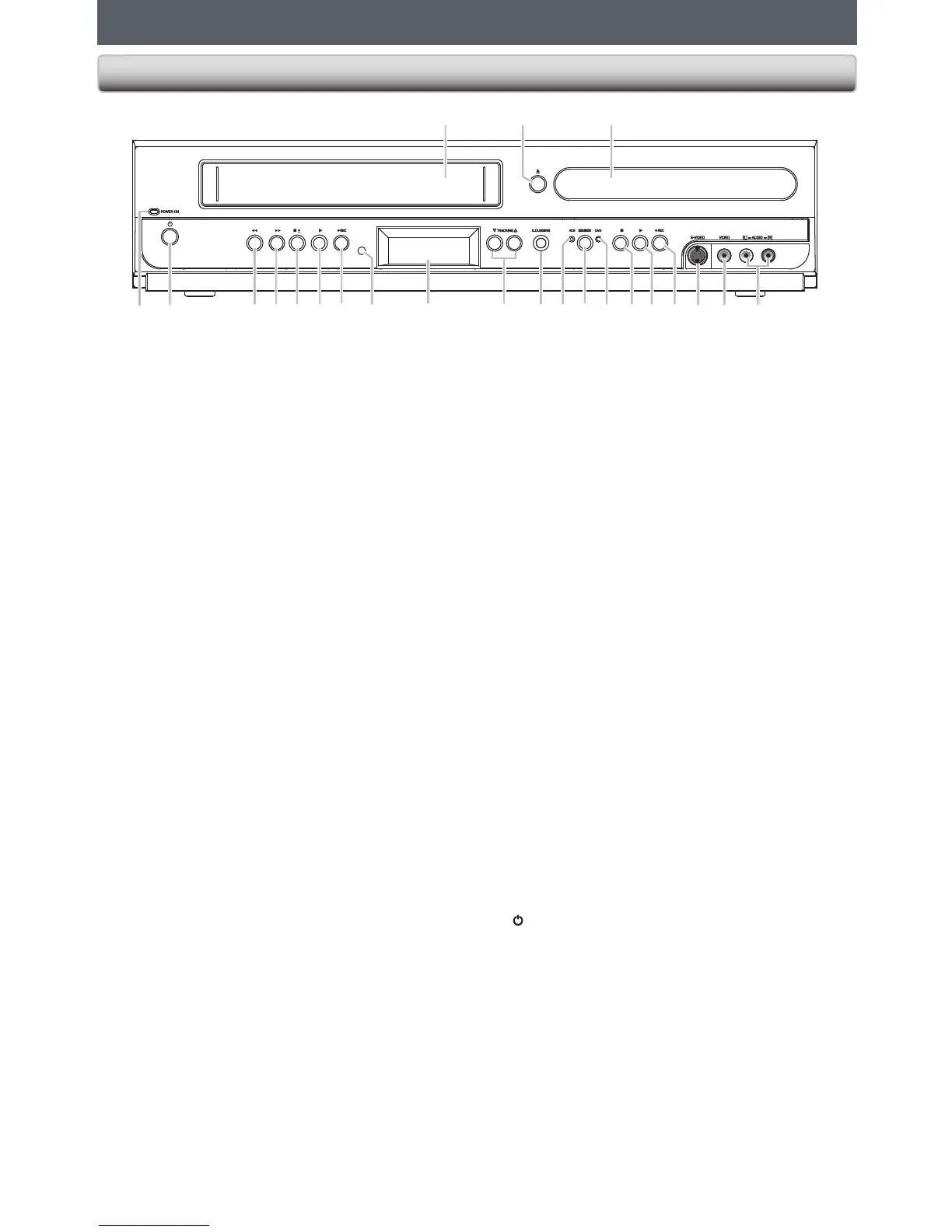

Front Panel
(*) The unit can also be turned on by pressing these buttons or inserting a cassette tape.
1. Cassette compartment (VCR)
Insert a cassette tape here.
2. A button (DVD)*
Press to open or close the disc tray.
3. Disc tray (DVD)
Place a disc when it is open.
4. AUDIO input jacks (L2) (DVD/VCR)
Use to connect external device with an RCA audio
cable.
5. VIDEO input jack (L2) (DVD/VCR)
Use to connect external device with an RCA video
cable.
6. S-VIDEO input jack (L2) (DVD/VCR)
Use to connect the S-video output of external device
with an S-video cable.
7. I REC button (DVD)
•
Press once to start a recording.
•
Press repeatedly to start the one-touch timer
recording.
8. B button (DVD)*
Press to start or resume playback.
9. C button (DVD)
•
Press to stop playback or recording.
•
Press to stop the proceeding timer recording in DVD.
10. DVD indicator
Lights up when the DVD output mode is selected.
11. SOURCE button (DVD/VCR)
Press to select the component you wish to operate.
12. VCR indicator
Lights up when the VCR output mode is selected.
13. D.DUBBING button (DVD/VCR)
Press to start VCR to DVD (DVD to VCR) duplication
which you set in the main menu.
14. TRACKING L / K buttons (VCR)
•
Press to adjust the tracking during playback or in
slow motion of the cassette tape.
•
While playback is in still mode, you can adjust the
picture blurred vertically.
15. Display (DVD/VCR)
Refer to “Front Panel Display” on page 14.
16. Infrared sensor window (DVD/VCR)
Receive signals from your remote control so that you
can control the unit from a distance.
17. I REC button (VCR)
Press once to start a recording. Press repeatedly to
start the one-touch timer recording.
18. B button (VCR)
Press to start playback.
19. C A button (VCR)
•
Press to remove the cassette tape from the cassette
compartment.
•
Press to stop cassette tape playback or recording.
•
Press to stop the proceeding timer recording in VCR.
20. D button (VCR)
Press to rapidly advance the cassette tape or view the
picture rapidly in forward during playback (forward
search).
21. E button (VCR)
Press to rewind the cassette tape or to view the
picture rapidly in reverse during playback (rewind
search).
22.
y button (DVD/VCR)
Press to turn On the unit or to turn the unit to the
standby mode. (To completely shut down the unit, you
must unplug the AC power cord.)
23. POWER-ON indicator (DVD/VCR)
Red LED lights up when power is on.
