Recording
Playback Editing
Introduction
Connections Basic Setup Function Setup VCR Functions
Others Español

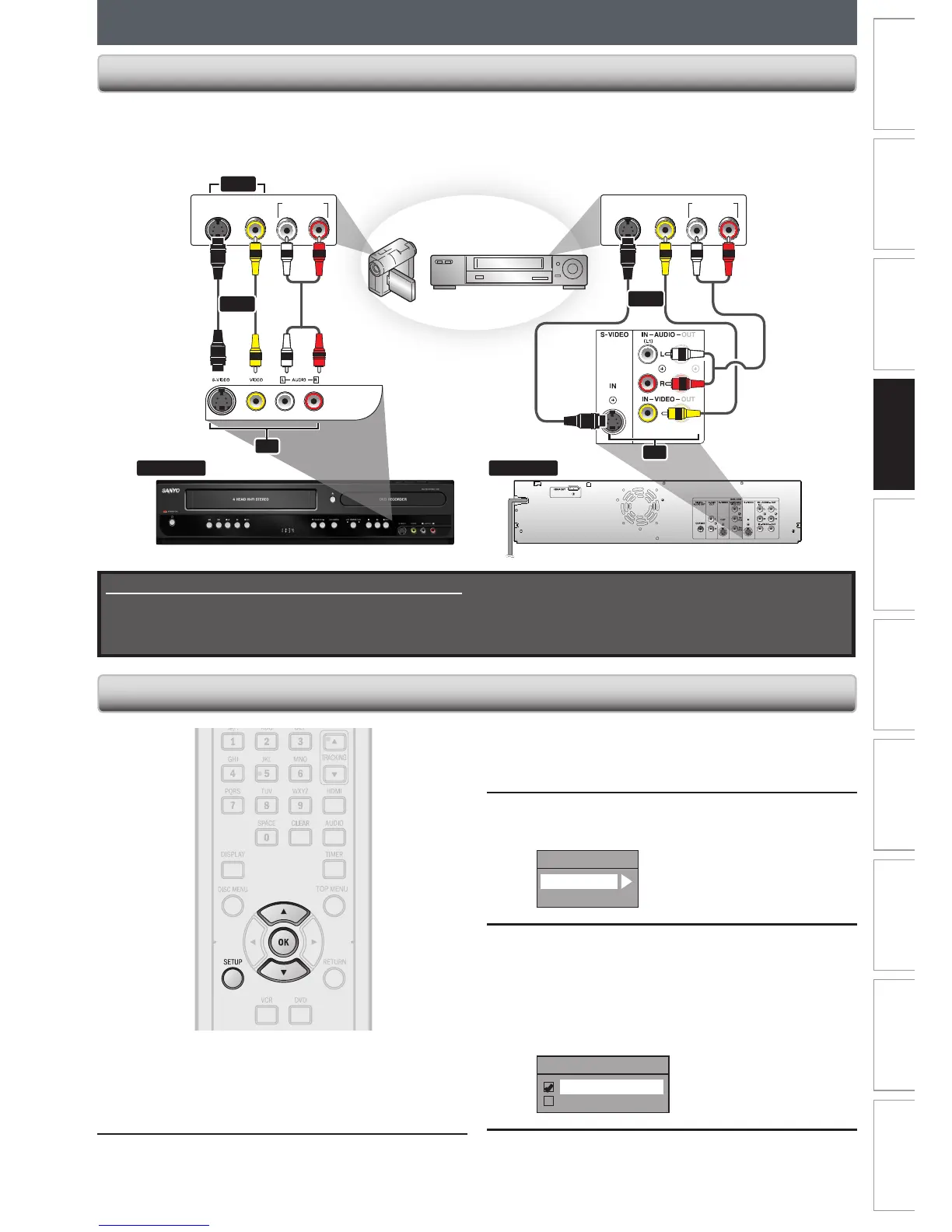

SETTINGS FOR AN EXTERNAL DEVICE
3
Use [K / L] to select “Select Video”, then
press [OK].
4
Use [K / L] to select desired external
input, then press [OK].
Select Video
L1 (Rear)
L2 (Front)
5
Use [K / L] to select the input jack
type to connect, then press [OK].
If you want to use VIDEO IN jack, select “Video
In”.
If you want to use S-VIDEO IN jack, select
“S-Video In”.
L1 (Rear)
Video In
S-Video In
6
Press [SETUP] to exit.
Connect the external device properly to the unit by using input jacks either L2 (Front) or L1 (Rear).
When connecting an external device of monaural output to this unit, use AUDIO L jack of L2 (Front) or L1 (Rear).
Use S-video or the RCA audio/video cables for this connection.
AUDIO OUT
L R
VIDEO
OUT
S-VIDEO
OUT
AUDIO OUT
L R
VIDEO
OUT
S-VIDEO
OUT
L2
front of this unit rear of this unit
to L1 IN
external device
(camcorder, VCR etc.)
S-video
cable
RCA
video
cable
RCA
audio
cable
to L2 IN
or
or
L1
S-video cable
RCA
video
cable
RCA audio cable
or
or
Supplied cables used in this connection are as follows:
•
RCA audio cable (L/R) x 1
•
RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
Connection to an External Device
1
Press [SETUP] and use [K / L] to select
“General Setting”, then press [OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Video”, then
press [OK].
Submenu will appear.
Setting for the Video Input
