UNPACKING ENGLISH
4 . UNPACKING
The self-propelled mowing machine is delivered in crates reinforced with cratewood. Some machine groups have been dismantled in the manufacturing plant
due to the transport reasons. They will be reassembled before the machine putting into operation. The machine unpacking and preparation for the opera-
tion is carried out by the vendor within the framework of service before sale.
4.1 CHECK AFTER UNPACKING
After removing the wrapping take down carefully the machine from the pallet - use the ramps otherwise there is a risk of the machine damage. Check if the
machine was not damaged during the transport. Unpack also all dismantled groups and check them.
In the basic packing are delivered:
• mowing machine
• steering wheel
• seat
• grass collecting bin (it is partially dismantled and is in the cardboard box together with the suspension, connecting parts and two triangular self-adhesive
labels of yellow colour)
• documentation (packing list, mowing machine operator's manual, engine operating instructions, accumulator operating instructions, Service book)
4.1.1 DISPOSE OF PACKAGE
After the machine unpacking it is necessary to dispose of the wrapping. When disposing, observe the appurtenant law on waste materials valid in the coun-
try of the machine user. Separate the packing material according to the appropriate packaging catalogue. This procedure can be entrusted to a specialized
firm.
4.2 PREPARATION FOR PUTTING INTO OPERATION
With respect to the technical character of this work, the mowing machine preparation
into operation is carried out by Your vendor (in accordance with the instructions
of the machine manufacturer).

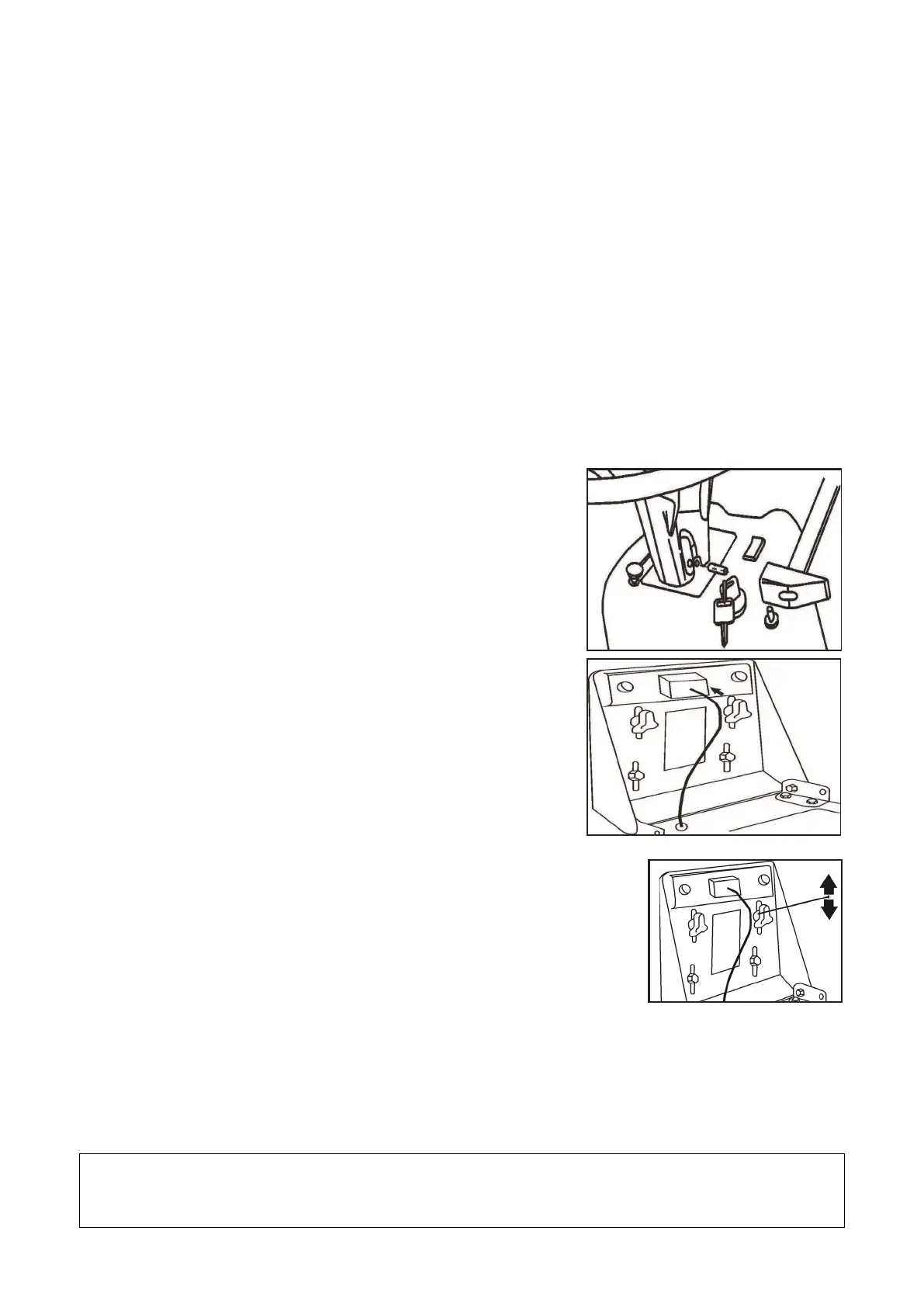

4.2.1 ASSEMBLY OF STEERING WHEEL
Place the machine on an even surface and align the front wheels into straight direction.
Mount the steering wheel and secure it by the pin supplied.
4.2.2 ASSEMBLY OF SEAT
Remove the seat wrapping cover.
Put the seat on its place in the machine and fasten it by means
of screws being preassembled in the seat.
4.2.3 SEAT POSITION ADJUSTMENT
Adjust the position of the seat in the following way:
Loosen the screws with plastic roses.
Shift the seat forward or backward to the desired position.
R
etighten the screws with plastic roses.
4.2.4 CONNECTION OF ACCUMULATOR
When putting the accumulator into operation, proceed according to the instructions stated in the Accumulator operating instructions.
The accumulat
or is placed in a bo
x under the seat (at the SJ2... and SJ4... machine type) or under the front bonnet (at the SJ8... a SG8... machine type).
Loosen the screws on the accumulator pole outlets.
Connect the red wire to the (+) pole of the accumulator and retighten the screw.
Connect the brown wire to the (–) pole of the accumulator and retighten the screw.
12
WARNING:
R
everse connection of the wires then stated above will result in a damage to the machine.
When disconnecting the accumulat
or
, alw
ays disconnect the (–) pole as the first.
Follow the instruction for the maintenance stated in the accumulator operating instructions.
