LOGO! Manual
A5E00067781 01
168

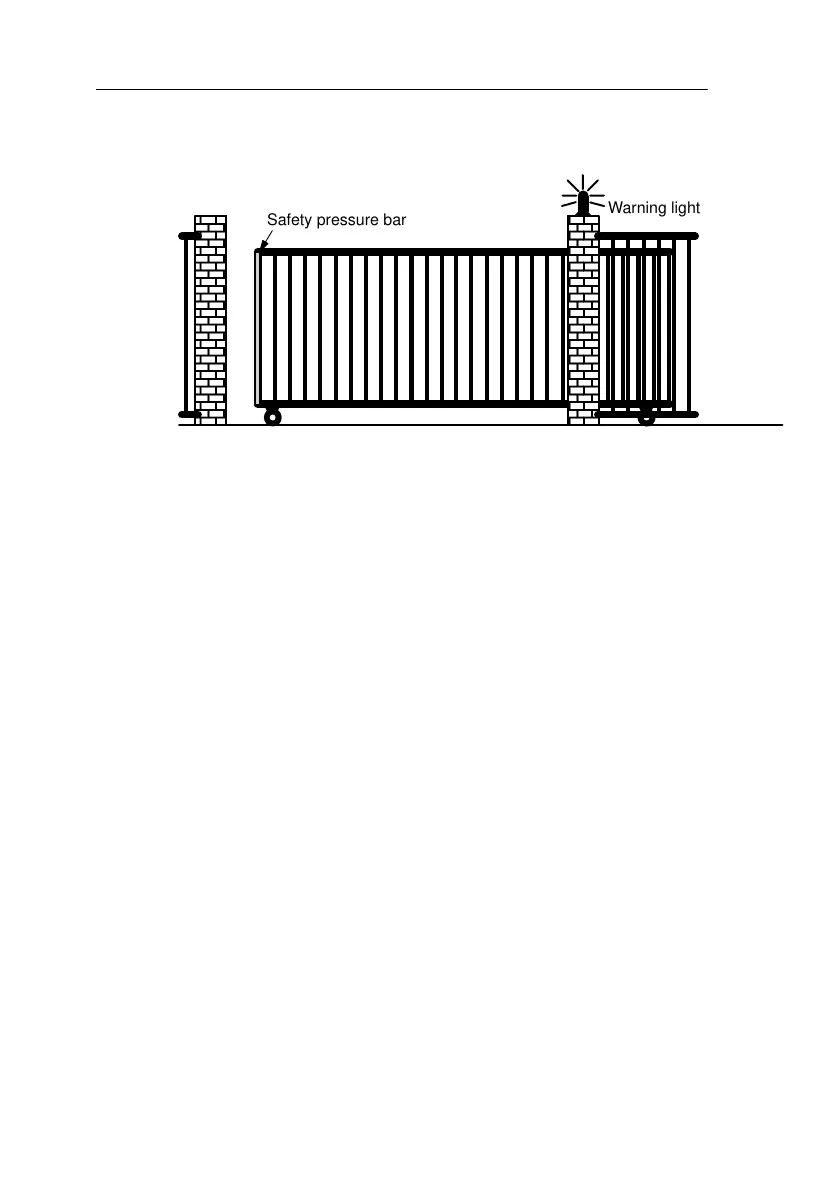

8.4 Industrial Gate
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
Warning light
Safety pressure bar
There is often a gate at the entrance to a company’s prem-
ises. This is only opened to let vehicles in and out.
The gate is controlled by the gateman.
8.4.1 Demands on the Gate Control System
 The gate is opened and closed by operating a switch in
the gatehouse. The gateman is able to monitor the op-
eration of the gate at the same time.
 The gate is normally fully opened or closed. However,
movement of the gate can be halted at any time.
 A flashing light is activated 5 seconds before the gate
begins to move and continues for as long as the gate is
in motion.
 A safety pressure bar ensures that nobody gets injured
and nothing gets trapped or damaged when the gate
closes.
Applications

Siemens LOGO! 230RC Specifications

General

Inputs	8 digital inputs
Outputs	4 relay outputs
Mounting Type	DIN rail
Protection Type	IP20
Dimensions	90 x 72 x 55 mm
Output Current	10 A
Operating Temperature	0°C to 55°C
Power Supply	115/230V AC
Storage Temperature	-40°C to +70°C
