Siemens LOGO! 230RC User Manual

183
LOGO! Manual
A5E00067781 01

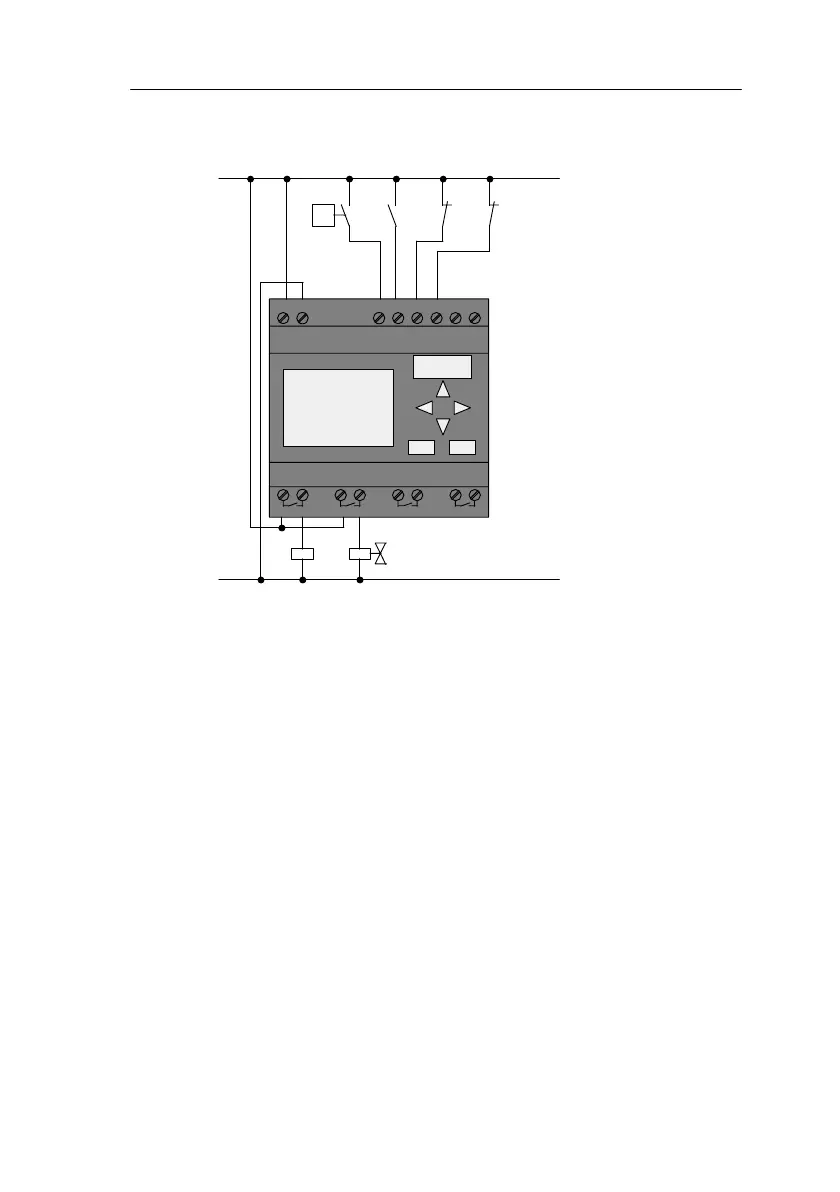

8.7.3 Rainwater Pump with LOGO! 230RC
L1N I1I2I3I4I5I6
Q1 Q2 Q3 Q4
SIEMENS
K1 Y1
Pump
S4S3
L1
N
S1 S2
p<
Mains water inlet
LOGO! 230RC
Apart from LOGO!, you only need the pressure switch and
the float switches to control the pump. If you are using a
3-phase AC motor, you must use a master contactor for
switching the pump. On systems using single-phase AC
pumps, you must fit a contactor if the AC pump requires a
higher current than can be switched by the output relay Q1.
The power of a solenoid valve is so low that it can normally
be controlled directly.
 K1 Master contactor
 Y1 Solenoid valve
 S1 (NO contact) Pressure switch
 S2 (NO contact) Float switch
 S3 (NC contact) Float switch
 S4 (NC contact) Float switch
Applications

Siemens LOGO! 230RC Specifications

General

Inputs	8 digital inputs
Outputs	4 relay outputs
Mounting Type	DIN rail
Protection Type	IP20
Dimensions	90 x 72 x 55 mm
Output Current	10 A
Operating Temperature	0°C to 55°C
Power Supply	115/230V AC
Storage Temperature	-40°C to +70°C
