Siemens SIMATIC IPC427D User Manual

Technical specifications
8.6 Hardware descriptions
SIMATIC IPC427D
124 Operating Instructions, 05/2017, A5E31347215-AB

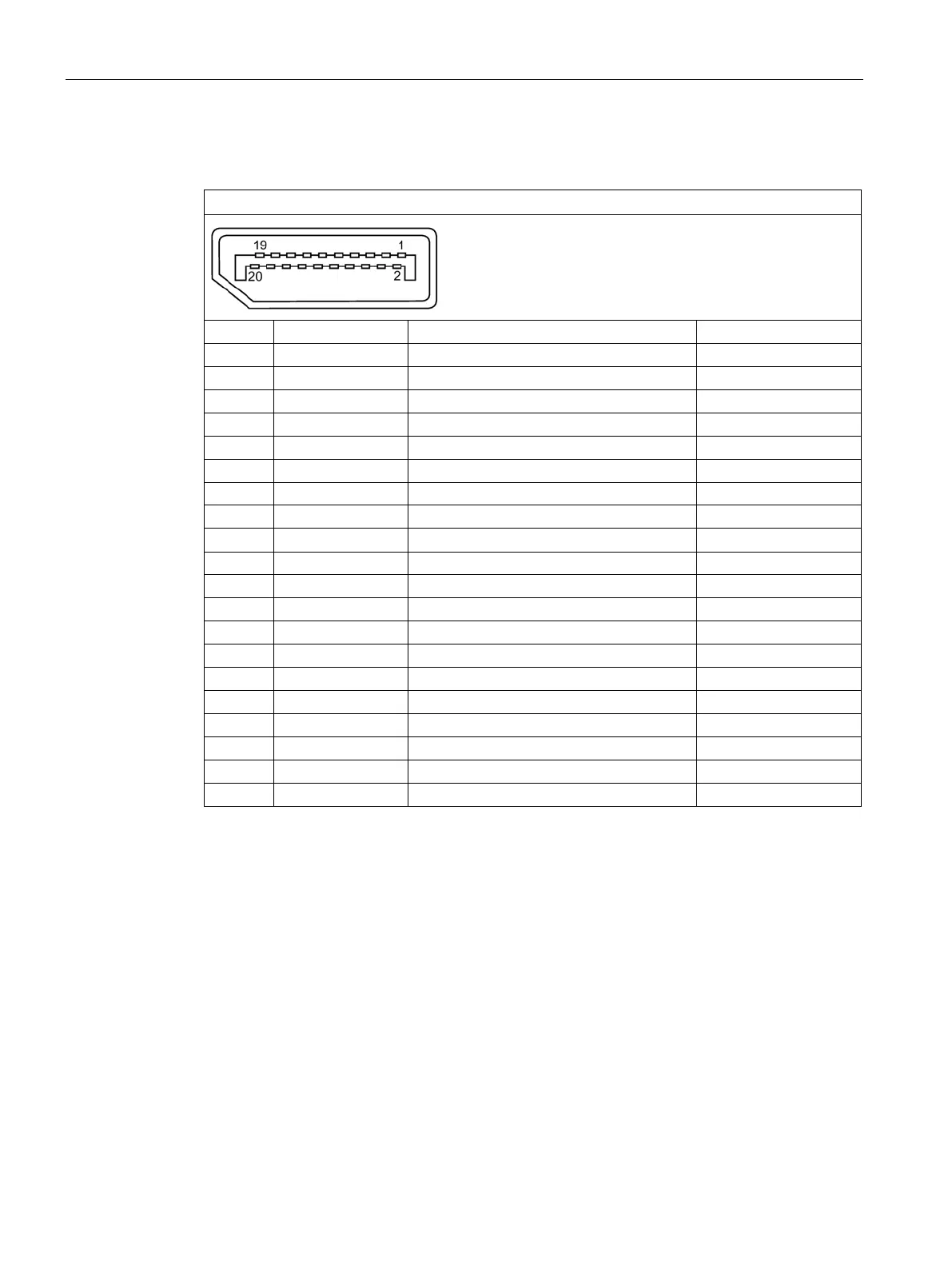

8.6.1.3
DisplayPort
DisplayPort port
Pin no.
Short description
Meaning
Input / output
1
ML_Lane0+
DP data 0+
Output
2
GND
Ground
-
3
ML_Lane0-
DP data 0-
Output
4
ML_Lane1+
DP data 1+
Output
5
GND
Ground
-
6
ML_Lane1-
DP data 1-
Output
7
ML_Lane2+
DP data 2+
Output
8
GND
Ground
-
9 ML_Lane2- DP data 2- Output
10
ML_Lane3+
DP data 3+
Output
11
GND
Ground
-
12
ML_Lane3-
DP data 3-
Output
13
CONFIG1 CAD
Cable Adapter Detect
Input
14
CONFIG2
Ground (PullDown)
-
15
AUX_CH+
Auxiliary channel+
Bidirectional
16
GND
Ground
-
17
AUX_CH-
Auxiliary channel-
Bidirectional
18
HPD
Hot Plug Detect
Input
19
GND
Ground
-
20
DP_PWR
+3.3V (fused)
Output
