Installing and connecting the device
3.2 Installing the device
SIMATIC IPC427D
36 Operating Instructions, 05/2017, A5E31347215-AB
Mounting on DIN rails
Requirement
● DIN rail, 35 mm standard profile
The DIN rail is installed at the installation site.
Note
Ensure that the wall or ceiling can hold four times the total weight of the device including DIN
profile rail and additional expansion cards. See
Mounting instructions (Page 33).

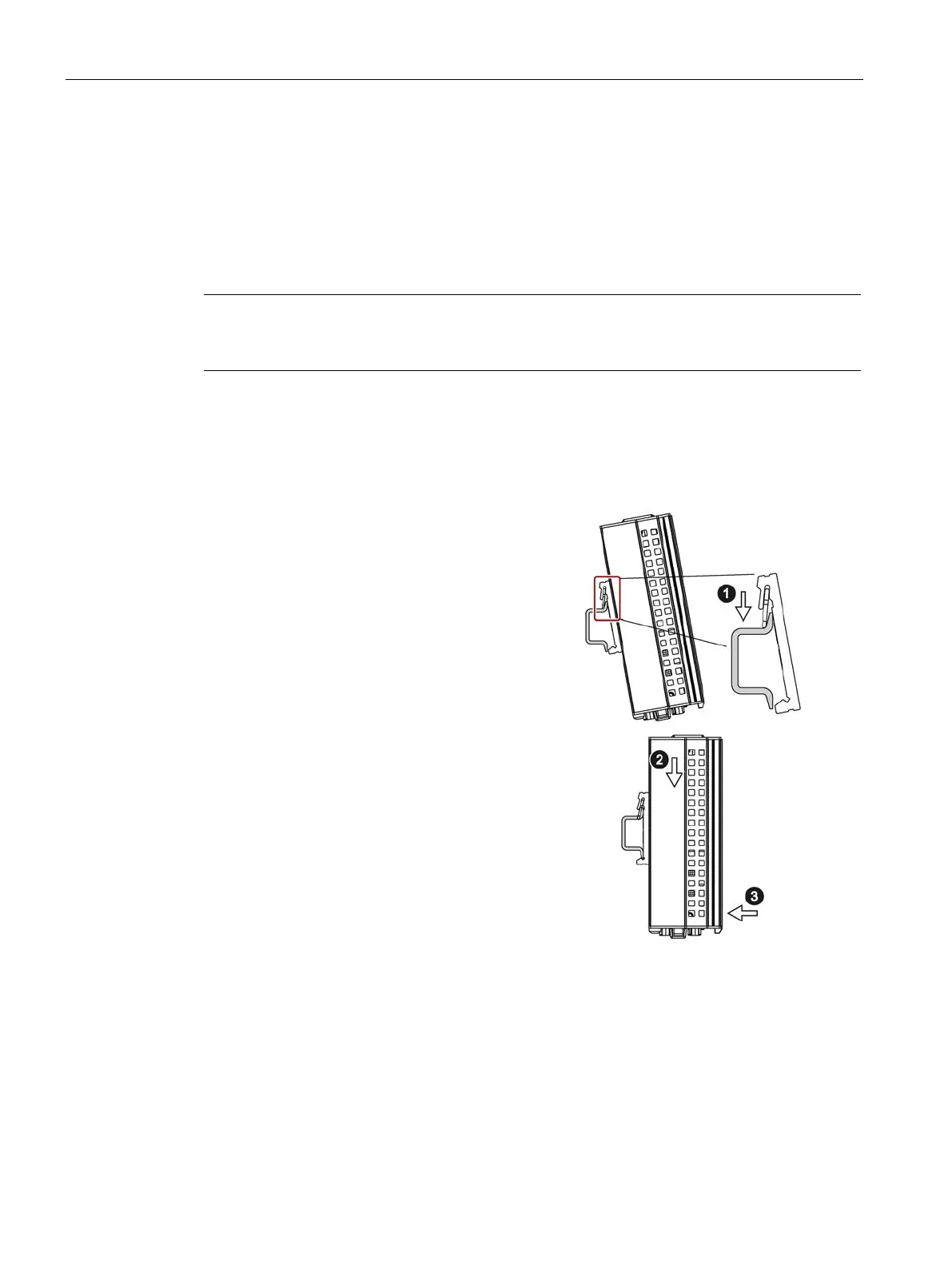

and rail clip on the up-
per edge of the standard profile rail at the
position shown.
Push down the device. Once the rail clip
slides over the bottom edge of the DIN
rail, push the device onto the
rail until it
engages with an audible click.
1. Push down the device until it is released by the rail clips.
2. Swing the device out of the standard profile rail.
3. Lift the device up and off.
