Overview
2.2 Installation
SIMATIC IPC477E PRO
Operating Instructions, 08/2017, A5E39912462-AA
11
2.2
Installation

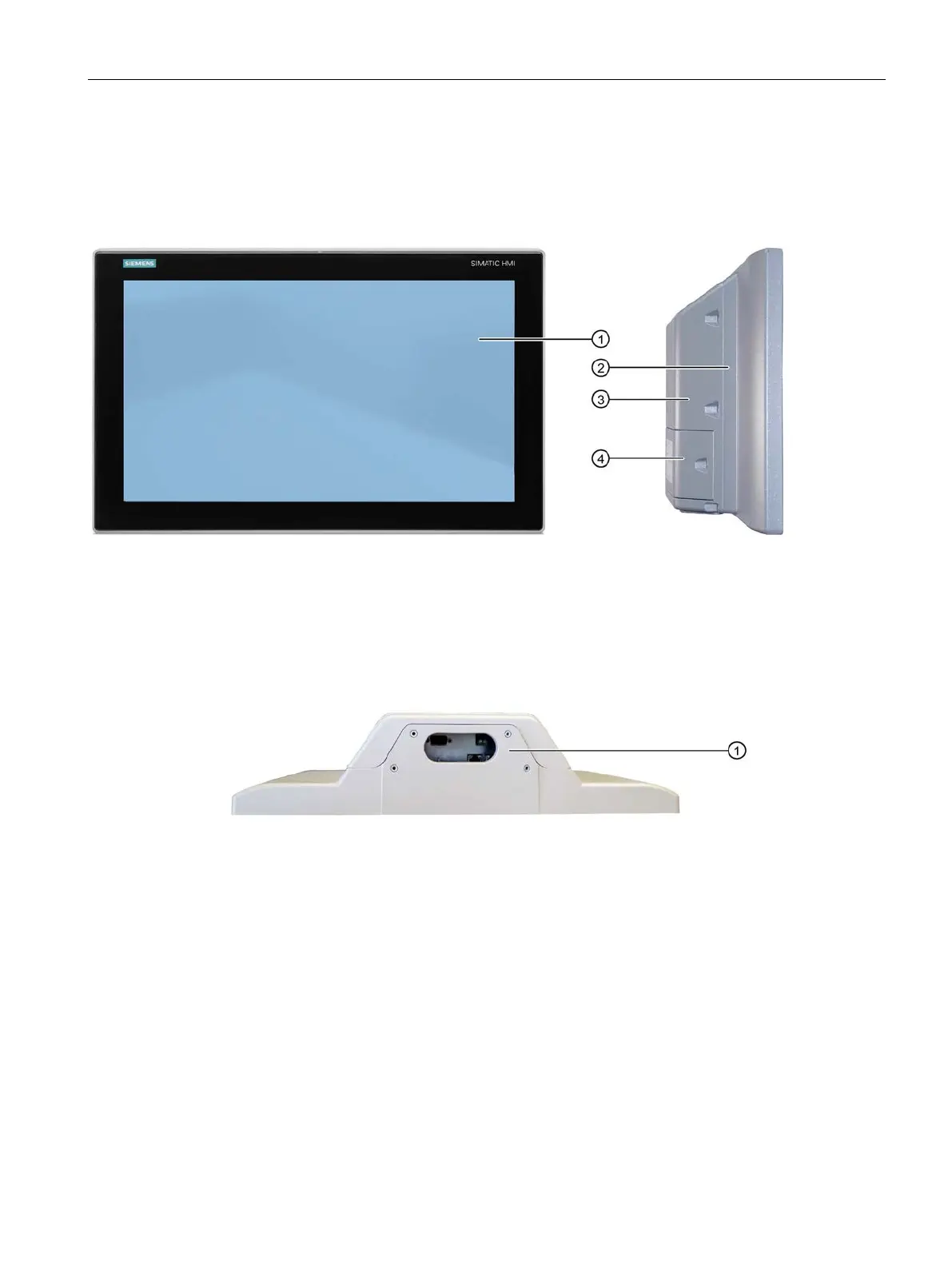

Front view and side view
①
Display with multi-touch screen
②
Enclosure
③
Backplane cover
④
Terminal compartment cover
Bottom view
①
Mechanical interface for mounting/base adapter
