Mounting and connecting the HMI device
4.4 Connecting the device
SIMATIC IPC477E PRO
52 Operating Instructions, 08/2017, A5E39912462-AA

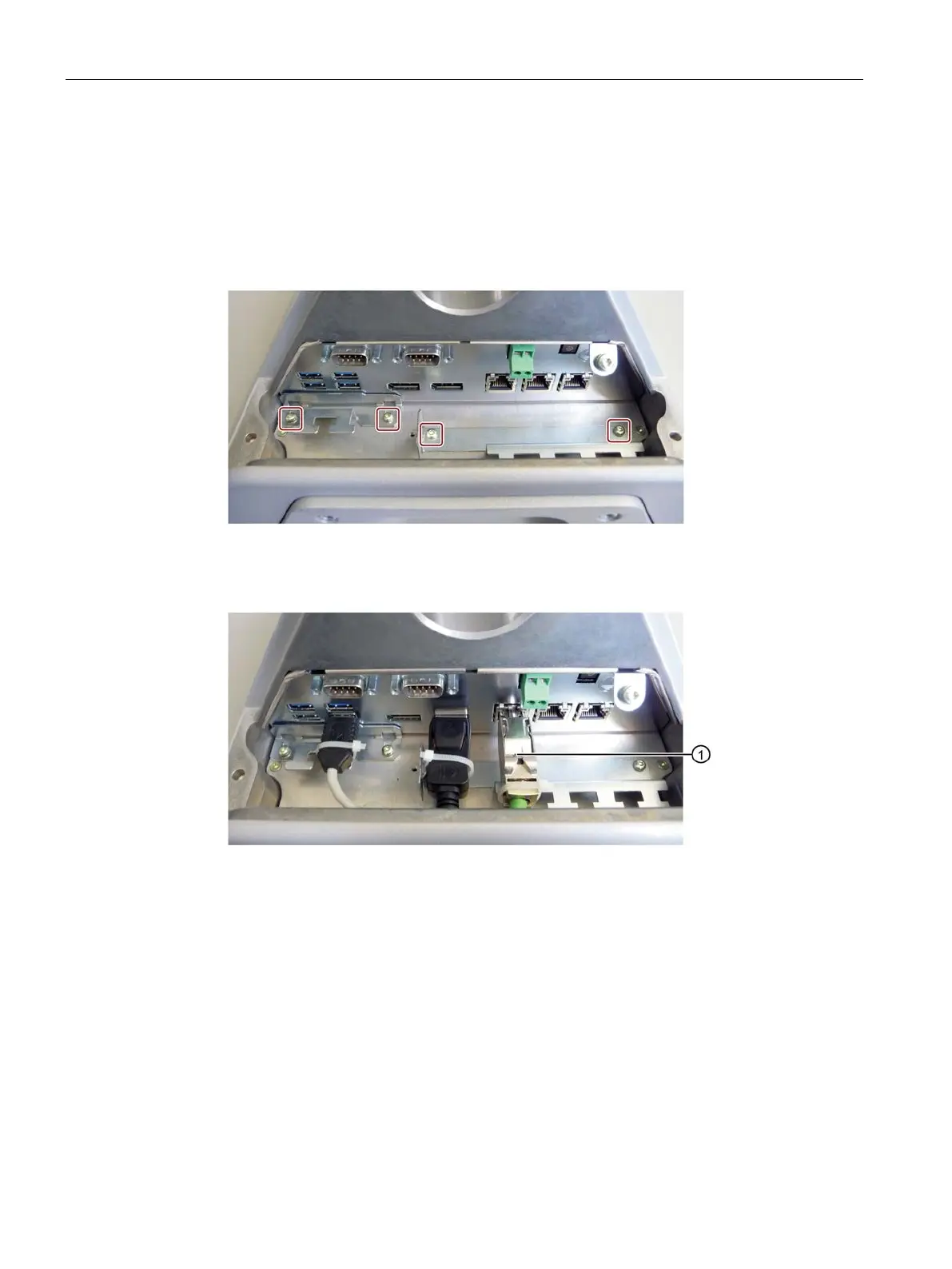

Strain relief for the device is provided in the product package.
1. Fasten the strain reliefs at the points shown.
2. Connect the USB, DisplayPort and LAN cables.
3. Secure each cable connected to the device to the strain relief using a cable tie or fixing
screws for the D-sub connectors. The required cable ties are not included.
Fastening with cable ties
4. Cut off the protruding ends of the cable ties.
