7.3 Installing and removing a CFast card
SIMATIC IPC477E PRO
Operating Instructions, 08/2017, A5E39912462-AA
81
7.3
Installing and removing a CFast card
The procedures for installing and removing the CFast card are the same for all device
variants. Use only SIMATIC IPC CFast cards for industrial application.
Note
Note the following points:
•
Use the slot described here exclusively for a
CFast card
.
•
Do not insert
CompactFlash cards (CF cards)
into the slot for the CFast card.
•
Always replace the SIMATIC IPC CFast card with a SIMATIC IPC
CFast card of the same
production version or higher. For the SIMATIC IPC477E PRO, only SIMATIC
CFast cards
with production version 02 or higher may be used.
The production version can be found on the SIMATIC CFast card, see the section
"Accessories (Page 14)".
Requirements
● The device is disconnected from the power supply.
● The terminal compartment cover is open.
● SIMATIC IPC A CFast card that is approved for industrial use.
Procedure

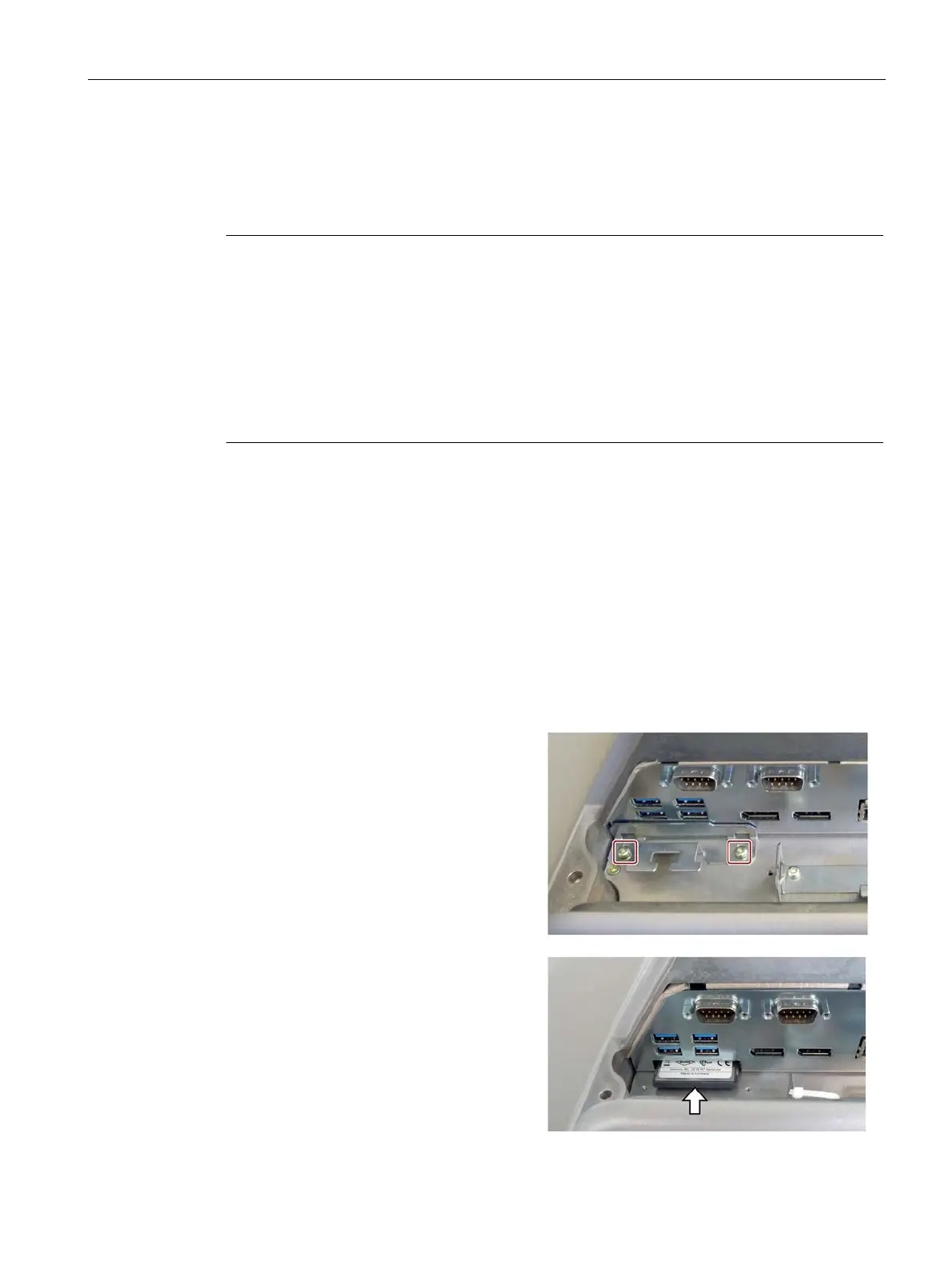

Removal
1.
For PRO device: Loosen the indicated
screws and remove the strain relief.
2.
Press on the CFast card in the
direction
of the arrow.
The CFast card moves approximately 5
mm out of the slot.
3.
Remove the CFast card.
