Siemens SIMATIC IPC477E PRO User Manual

Markings and symbols

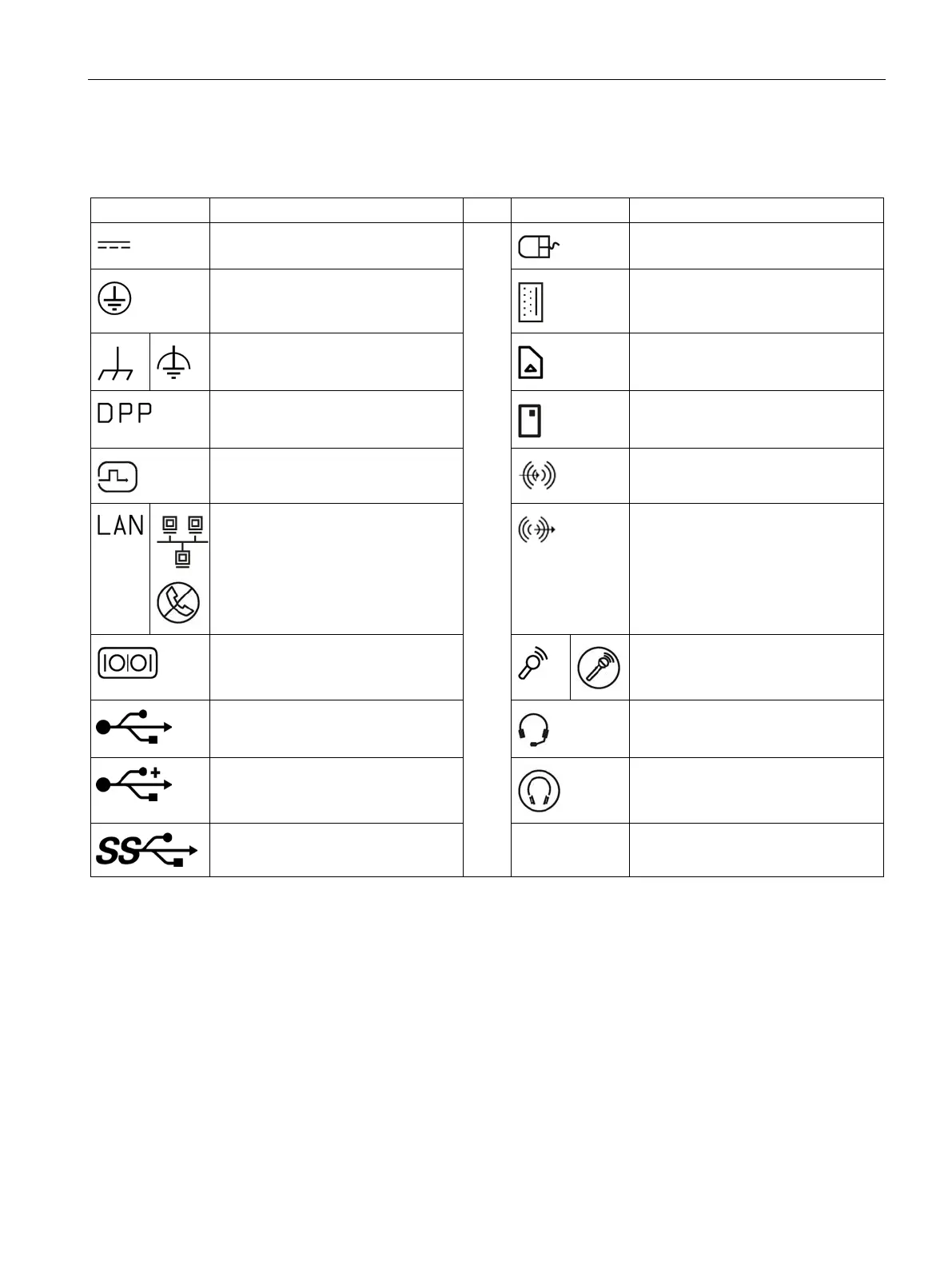

B.5 Interfaces
SIMATIC IPC477E PRO
Operating Instructions, 08/2017, A5E39912462-AA
159
B.5
Interfaces
Symbol
Meaning
Symbol
Meaning
Connection to the power supply PS/2 mouse interface
Protective conductor terminal PS/2 keyboard-interface
Connection for functional earthing
(equipotential bonding line)
Multimedia Card Reader
DisplayPort interface
Smart Card Reader
DVI-D interface
Line In
LAN interface, not approved for con-
necting WAN or telephone
Line Out
Serial port
Microphone input
USB port Universal Audio Jack
USB 2.0 high-speed port Headphone output
USB 3.0 super-speed port

Siemens SIMATIC IPC477E PRO Specifications

General

Brand	Siemens
Model	SIMATIC IPC477E PRO
Category	Industrial PC
Language	English
