Technical specifications
9.3 Dimension drawings
SIMATIC IPC477E PRO
Operating Instructions, 08/2017, A5E39912462-AA
117
9.3.3

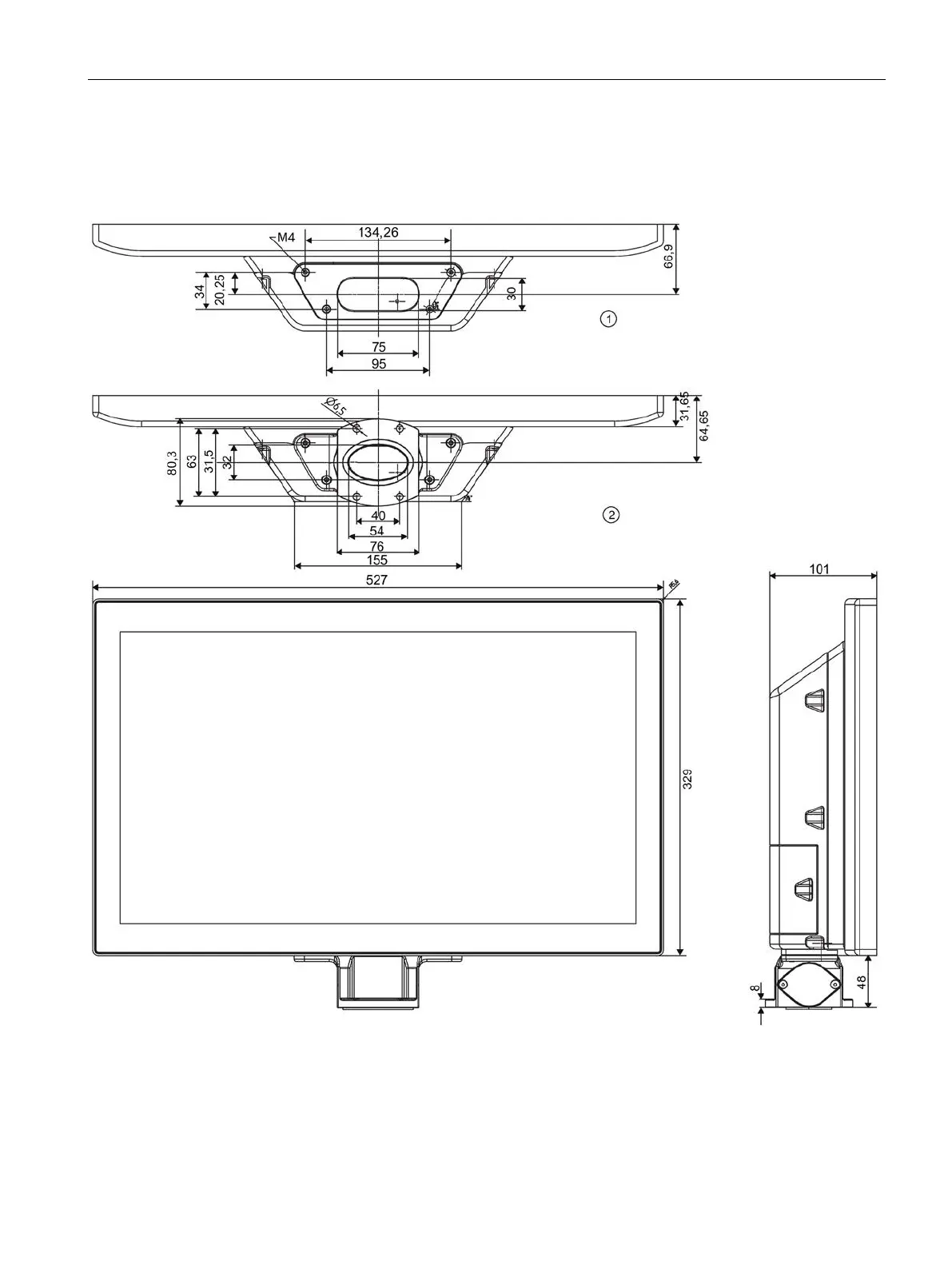

Dimension drawing of 22" device with capacitive multi-touch screen
Prepared for pedestal
①
Without base adapter
②
With base adapter
All dimensions in mm
