Technical specifications
9.3 Dimension drawings
SIMATIC IPC477E PRO
114 Operating Instructions, 08/2017, A5E39912462-AA
②
Without flange mount
All dimensions in mm
9.3.2

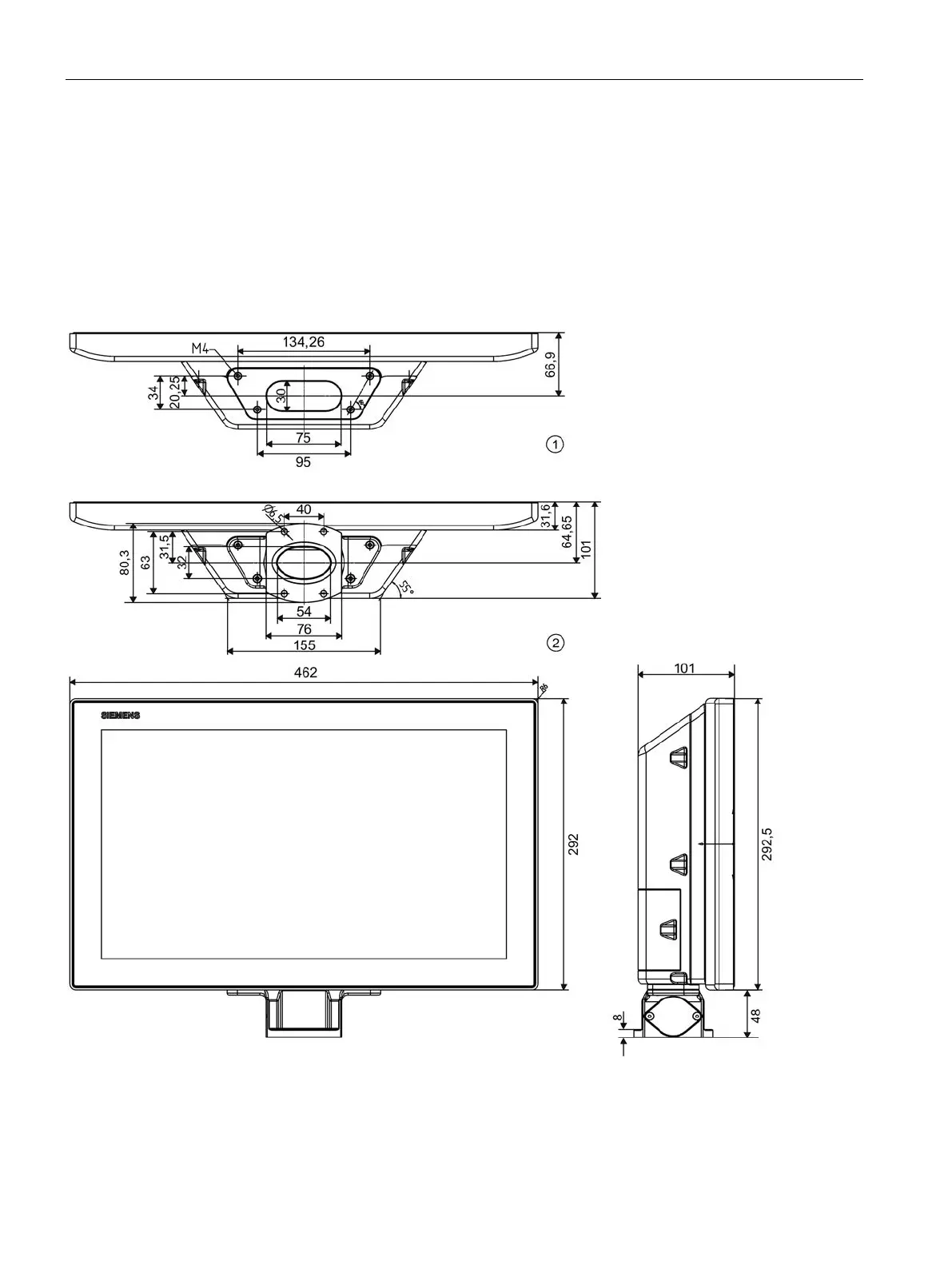

Dimension drawing of 19" device with capacitive multi-touch screen
Prepared for pedestal
①
Without base adapter
②
With base adapter
All dimensions in mm
