Overview
2.5 System components
SIMATIC IPC477E PRO
16 Operating Instructions, 08/2017, A5E39912462-AA

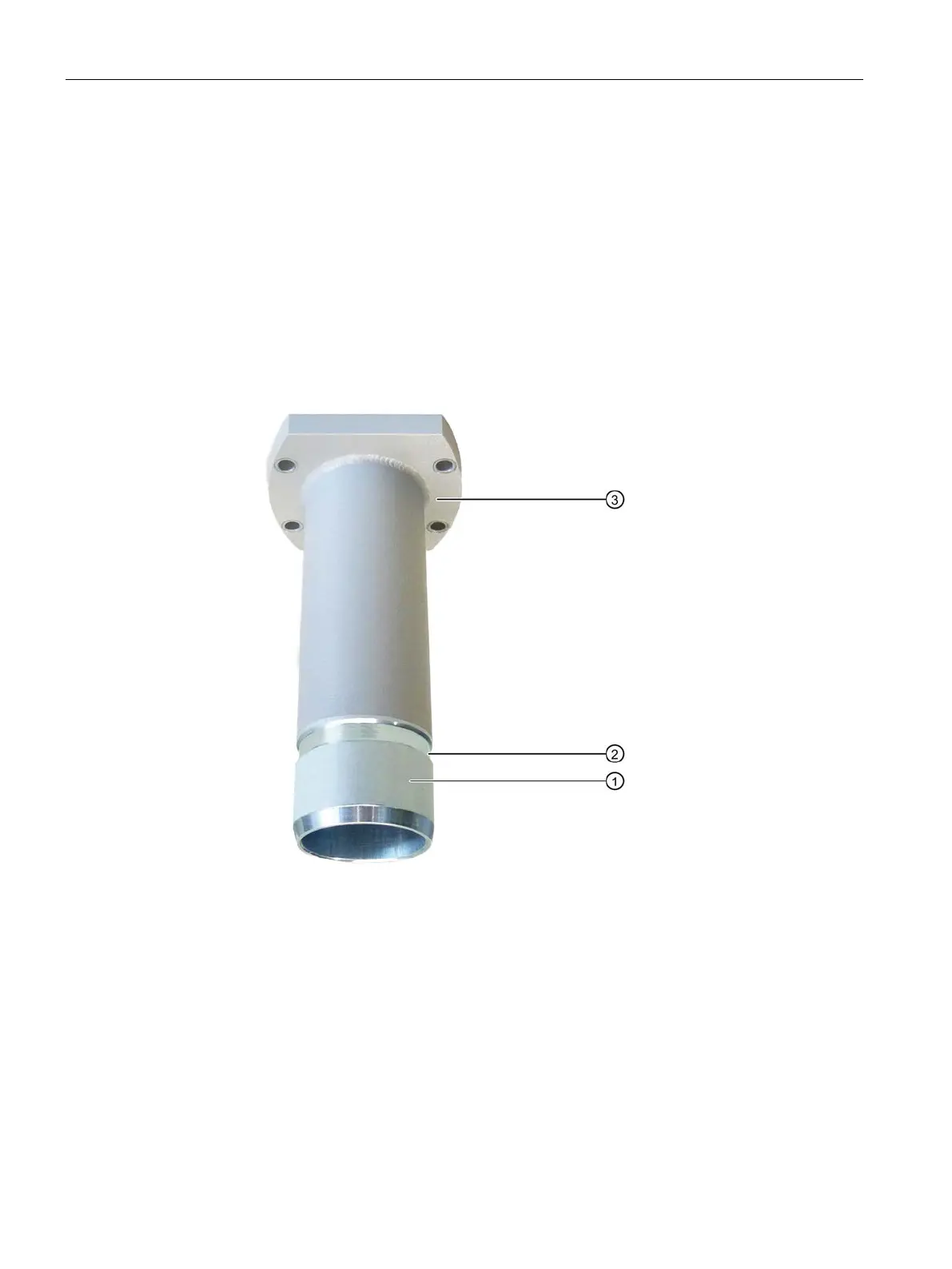

Round tube adapter
Flange mount for device version "prepared for support arm and extension components"
An optional flange mount that is not included in the product package is available for the
device version "prepared for support arm and extension components".
The flange mount converts the flange mount connection into a mechanically compatible
interface to the base adapter. The flange of the flange mount has the same drilling pattern as
the base adapter. This means you can use all couplings of the support arm or pedestal
systems with mechanical interface for the base adapter.
Ring groove for fastening on PRO device with setscrews
Mechanical interface to support arm
Article number of the flange mount: 6AV7674-1KF00-0AA0
