2.1 Front View with Closed Front Door
1 2 3
4

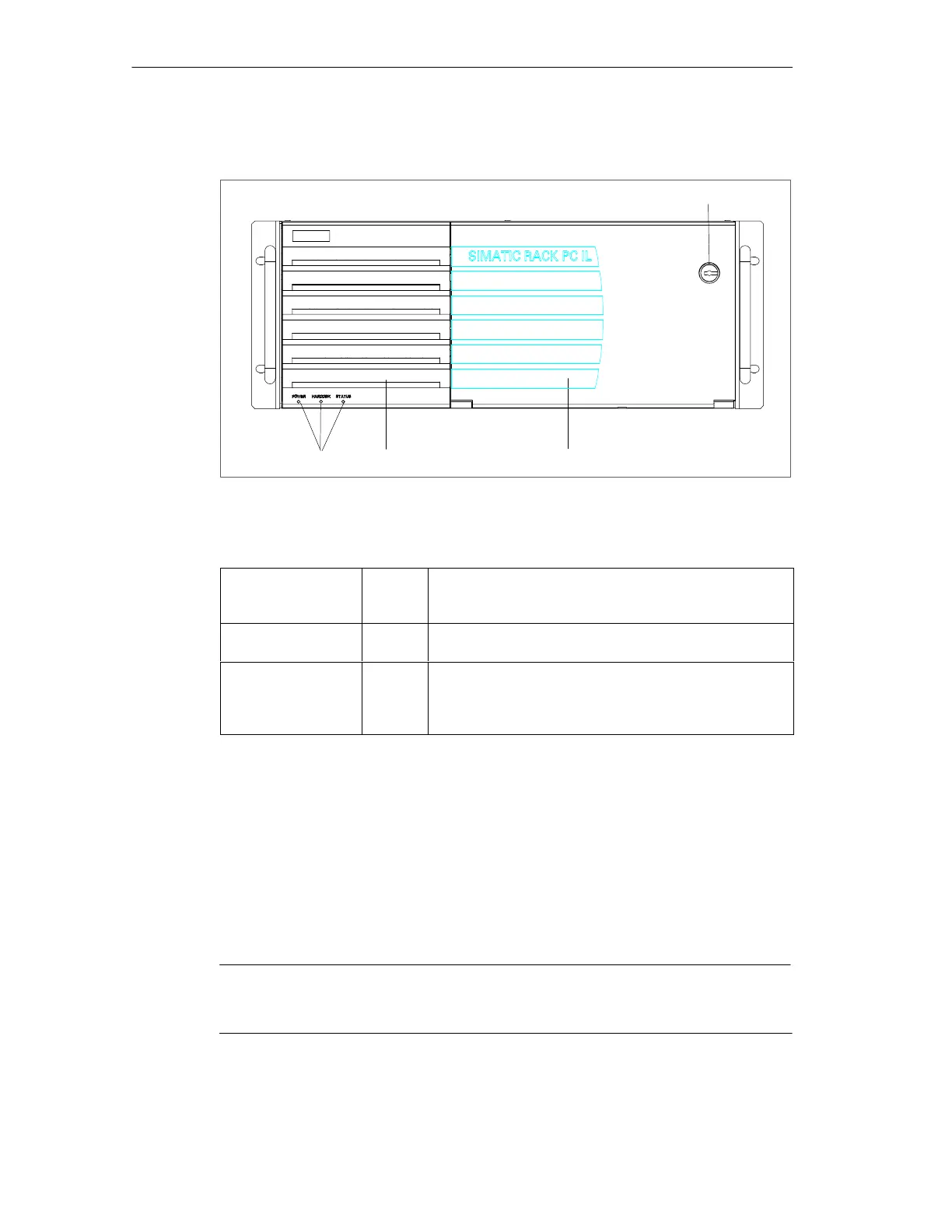

Figure 2-1 Front View with Closed Front Door
1 LEDs/Operating modes
The LEDs show the operating mode of the device:
POWER
yellow
green
off
Standby, PC is in Windows standby mode.
Power, PC is in operating mode.
No voltage or the PC has been shut down.
HARDDISK green Lights up when hard disk is being accessed
STATUS flashing
red
CPU temperature critical.
CPU cooling element-fan faulty.
Housing fan faulty.
Power Supply fan fault.
2 Fan Cover
The fan cover has openings for device ventilation. A filter mat and the fans are
located behind this cover. It can only be removed when the front door is open.
Please check the filter mat regularly for dirt and replace it if necessary.
3 Front Door
The Front ports and the drives or harddisks in the removable rack are protected
against dirt and unauthorized access by means of a door. Please keep the front
door closed during normal operation. The Microsoft Windows Product Key is
located on the inside of the front door.
Caution
Only qualified personnel is authorized to open the Rack PC or carry out repairs or
maintenance work.
4 Lock
To prevent unauthorized access you can lock the front door.
