2.3 Side View
1

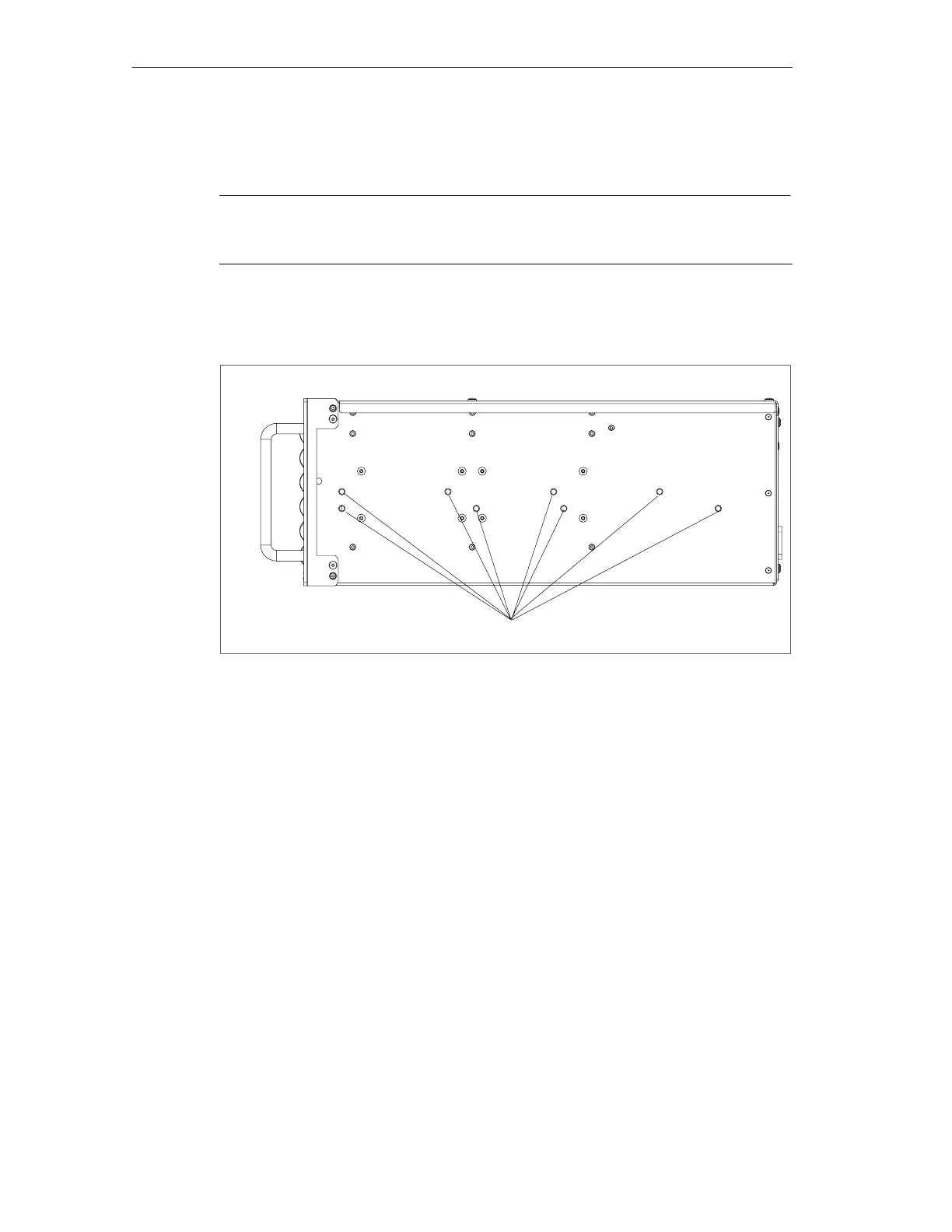

Figure 2-3 Side View
1 Fastening Points for Telescopic Rails
The Rack PC can be mounted on telescopic rails or on cabinet brackets. It is not
permitted to mount it at the 19” front supports only. When using telescopic rails
restricted technical specifications apply for the drives in the front drive holder. For
more details refer to the Technical Specifications in Appendix C or to the Retrofit
Notes in Appendix C.
The use of the telescopic rails makes it possible to completely pull the Rack PC
out of the cabinet or rack.
