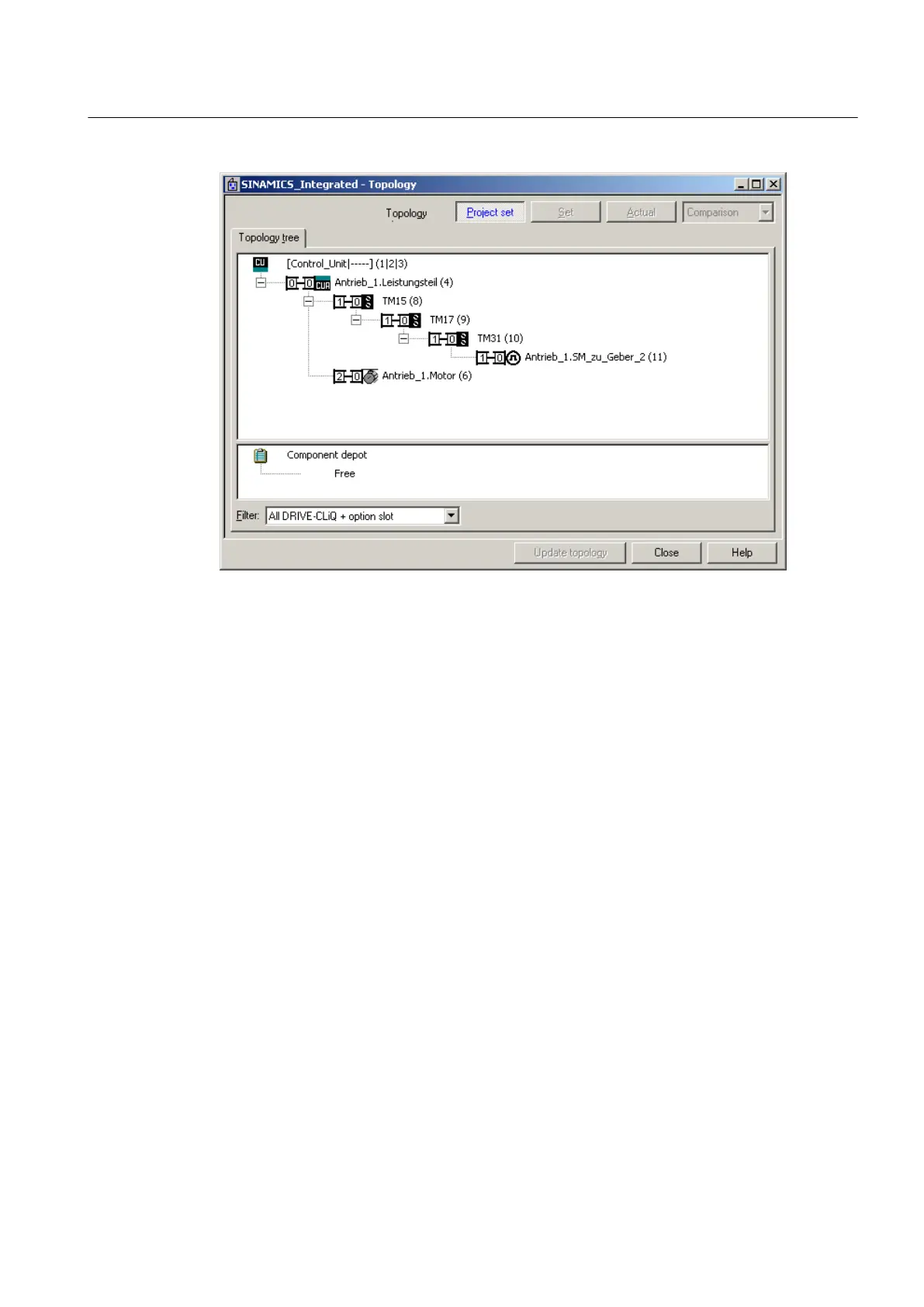

Figure 4-3 Example topology: 3 Terminal Modules, 1 CUA31, 1 encoder via motor with DRIVE-CLiQ
interface, 1 encoder via SMx
Additional information
For information on the components that can be connected via DRIVE-CLiQ (setup, connection,
configuration, etc.) see
●
SINAMICS S120 Control Units and Additional System Components Manual
● SINAMICS S120 for AC Drives Manual
● SINAMICS S120 Commissioning Manual
● SINAMICS S120 Booksize Power Units Manual
● SINAMICS S120 Safety Integrated Function Manual
● TM15/TM17 High Feature SIMOTION Terminal Modules Commissioning Manual
● SIMOTION Terminal Modules TM15 / TM17 Manual
4.4 PROFIBUS DP interface (SIMOTION D410 DP only)
SIMOTION D410 DP provides one interface to connect to PROFIBUS DP. The interface can
be run asynchronously or isochronously.
A baud rate of up to 12 Mbit/s can be set for the PROFIBUS DP interface.
Interfaces
4.4 PROFIBUS DP interface (SIMOTION D410 DP only)
SIMOTION D410
Manual, 04/2014 49
