Start-Up
SINUMERIK 802S base line
4-17
Start-Up
4.3.4 Machine control panel area layout
The machine control panel area in the standard version has been configured
for economic turning machines (2 axes and one spindle).
The user can use the keys K1 – K12 and the associated LEDs (the same
applies to keys K1 ... K12) for his own purposes.
The keys K22-K30 should be used as axis keys (see sample program
SAMPLE). The programmer can assign the axis keys depending on his
particular machine type.
The keys K31-K36 are used as axis override and spindle override buttons.
Notice
When delivery, the SINUMERIK 802SC base line is provided with inserted
stripes (10 provided, 3 of them are inserted as standard for turning technology),
which consist of all the combinations for both turning and milling technologies.
It is also possible for the user to customize keys K1…K12. The method in
details is explained in Toolbox.

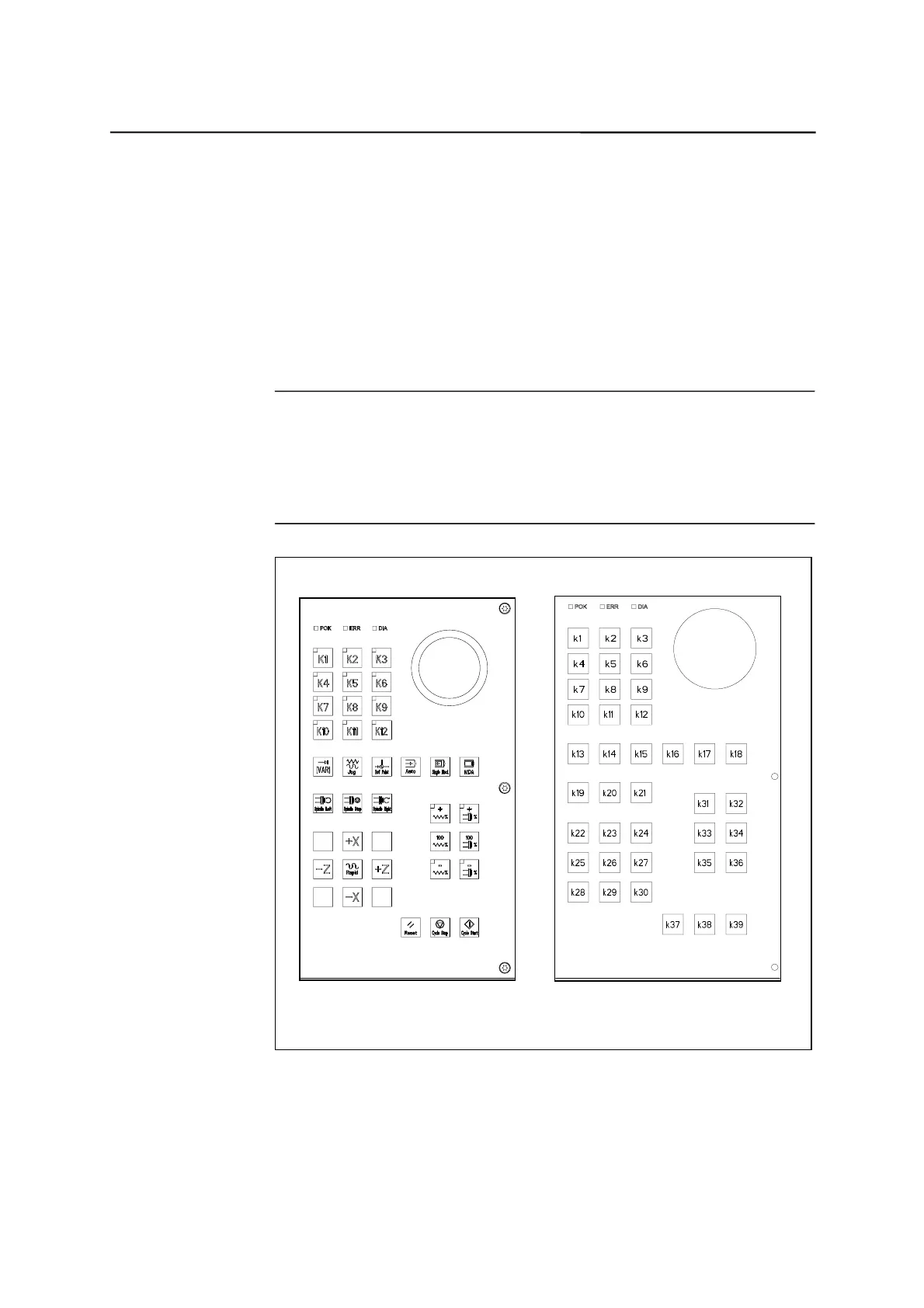

Fig. 4-3 Layout of machine control panel area
Layout when delivered
Key assignment
Available as accessory: Emergency
Stop Switch
K1…K39
Æ
keys 1…39
(see user interface)
