Siemens SINUMERIK 802S User Manual

Installing the Control System
2.3 Connecting the individual components
2-22
SINUMERIK 802S
6FC5 597–2AA00–0BP2 (01.02)

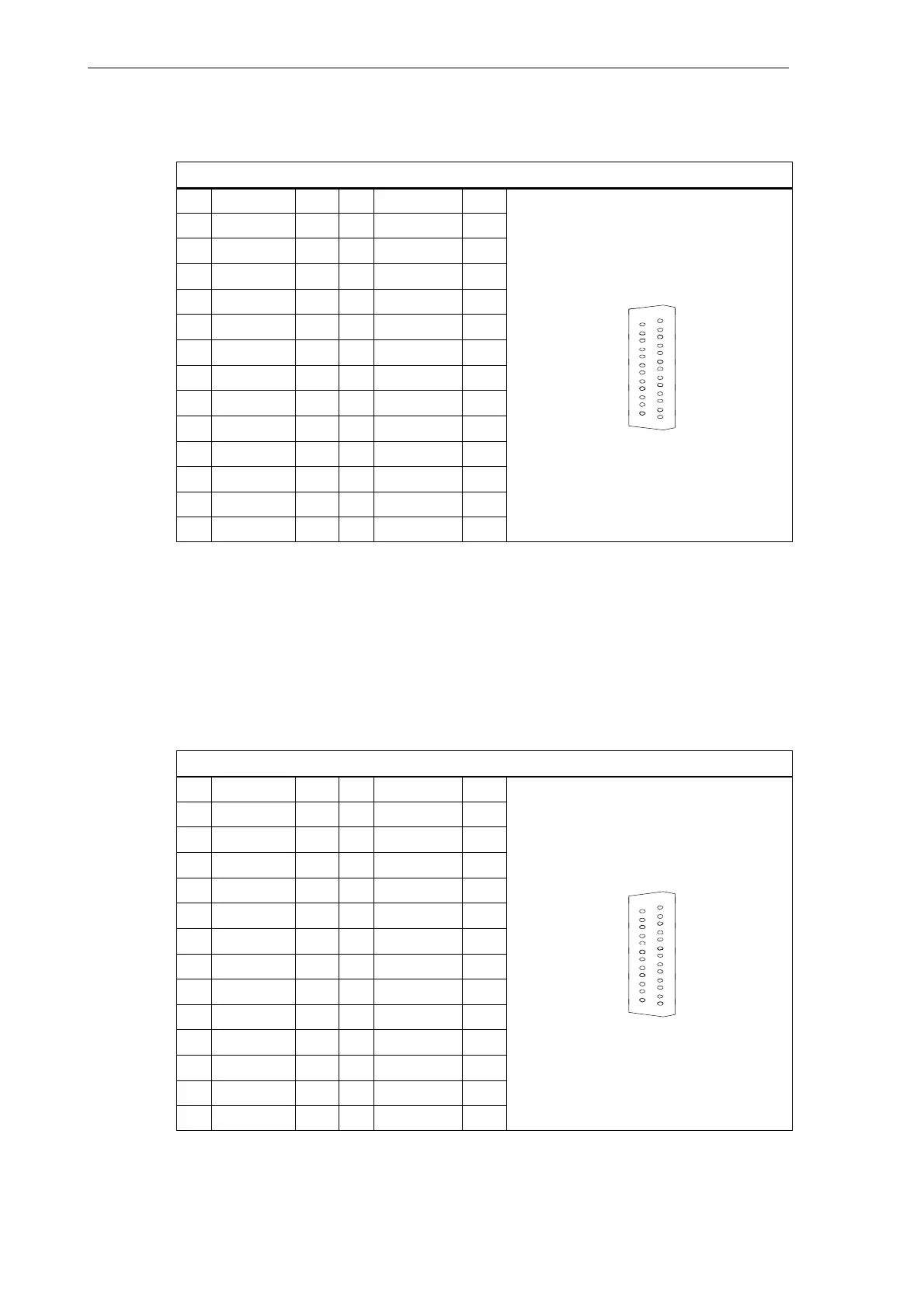

Table 2-1 Pin assignment of connector X9
X8
Pin Signal Type Pin Signal Type
1 14 P24_OP VO
2 M_OP VO 15 OPD0_N O
3 OPD0 O 16 OPD1_N O
4 OPD1 O 17 OPD2_N O
5 OPD2 O 18 OPD3_N O
13
25
6 OPD3 O 19 OPCP1_N O
7 OPCP1 O 20 OPCP2_N O
8 OPCP2 O 21 OPS_N O
9 OPS O 22 ENRXD_N I
1
14
10 ENRXD I 23 ENTXD_N O
11 ENTXD O 24 ENRTS_N O
12 ENRTS O 25 P24_OP VO
13 M_OP VO
Connector pin assignment on the OP side
Operator panel interface
Connector designation: X1009
OP020
Connector type: 25–pin sub–D plug connector
Table 2-2 Pin assignment of connector X1009
X1009
Pin Signal Type Pin Signal Type
1 14 P24_OP VI
2 M_OP VI 15 OPD0_N I
3 OPD0 I 16 OPD1_N I
4 OPD1 I 17 OPD2_N I
5 OPD2 I 18 OPD3_N I
13
25
6 OPD3 I 19 OPCP1_N I
7 OPCP1 I 20 OPCP2_N I
8 OPCP2 I 21 OPS_N I
9 OPS I 22 OPTXD_N O
1
14
10 OPTXD O 23 OPRXD_N I
11 OPRXD I 24 OPCTS_N I
12 OPCTS I 25 P24_OP VI
13 M_OP VI
