Siemens SINUMERIK 808D ADVANCED Parameter Manual

Application
%ORFNSURFHVVHG
1&EORFNZLWK0
0FKDQJHVLJQDO
3/&F\FOHWLPH
,600DFWLYH
,61&VWDUW
'DWDWUDQVIHUWR
ZRUNLQJPHPRU\
0
Corresponding
to ...
IS "Activate M01"
IS "M01 selected"
Note for the
reader
Function Manual Basic Functions K1
DB3300
DBX0.6
Last action block active
Signal(s) from channel (NCK → PLC)
Edge evaluation: No Signal(s) updated: Cyclic
Signal state 1 Block search: Last block of the output with collected auxiliary functions.
Note for the reader Function Manual Basic Functions K1
DB3300
DBX1.0
Referencing active
Signal(s) from channel (NCK → PLC)
Edge evaluation: Yes Signal(s) updated: Cyclic
Signal state 1 or edge
change 0 → 1
The channel-specific referencing was started using the IS: "Activate refer‐
encing" and the successful start was acknowledged using IS "Referencing
active". The channel-specific referencing is running.
Signal state 0 or edge
change 1 → 0
● Channel-specific referencing has been completed
●
Axis-specific referencing is running
● No referencing active
Signal irrelevant for ...
Spindles
Corresponding to ... IS "Activate referencing" (DB3200 DBX1.0)
Note for the reader Function Manual Basic Functions R1
DB3300
DBX1.2
Revolutional feedrate active
Signal(s) from channel (NCK → PLC)
Edge evaluation: No Signal(s) updated: Cyclic
Signal state 1 When programming of G95 (revolutional feedrate) in the JOG or automatic
mode.

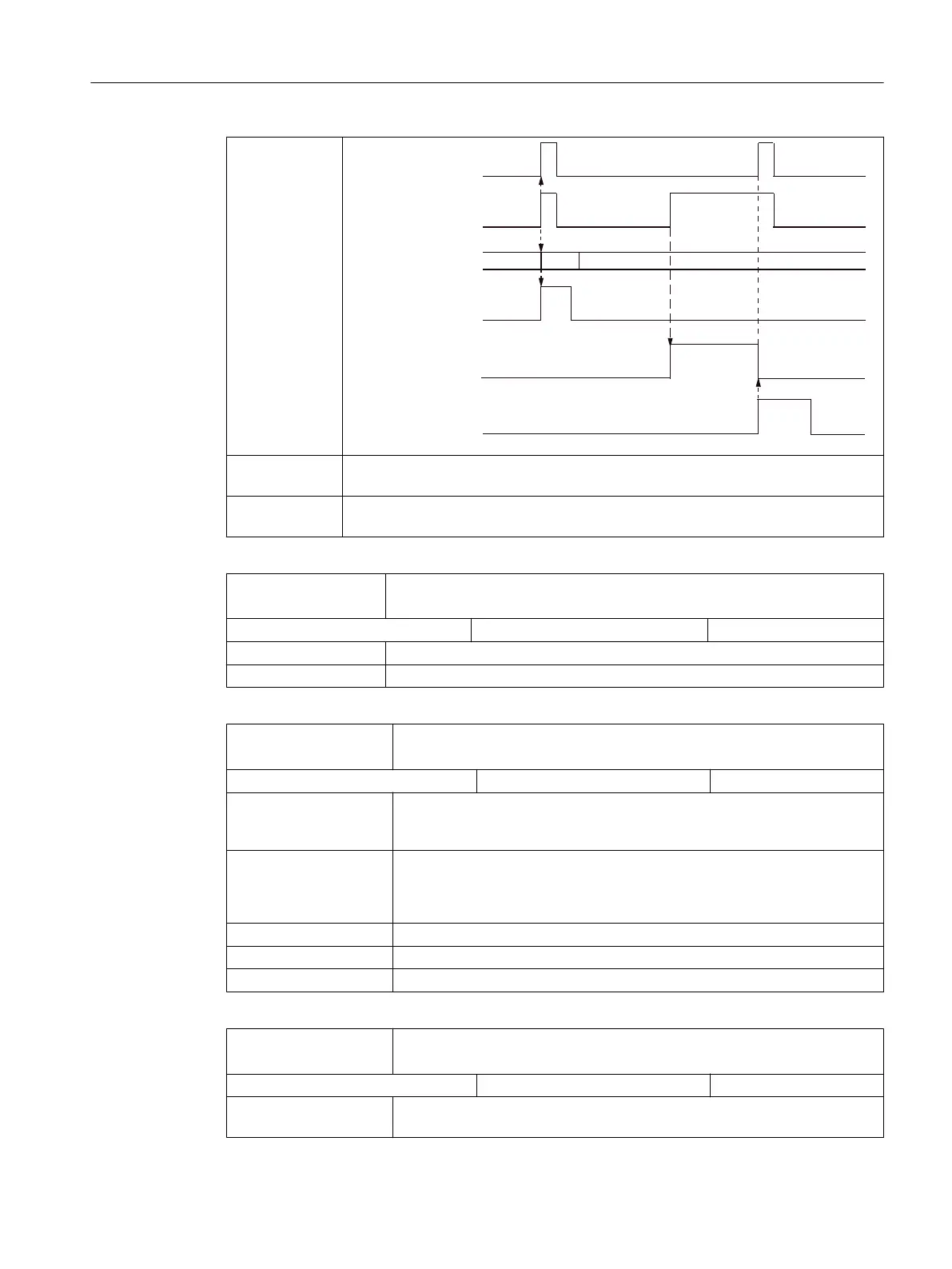

Detailed descriptions of interface signals
5.7 Channel-specific signals
Parameter Manual
Parameter Manual, 08/2015, 6FC5397-8EP40-0BA1 393
