6.2 MCP
6.2.1
Signals from/to the MCP

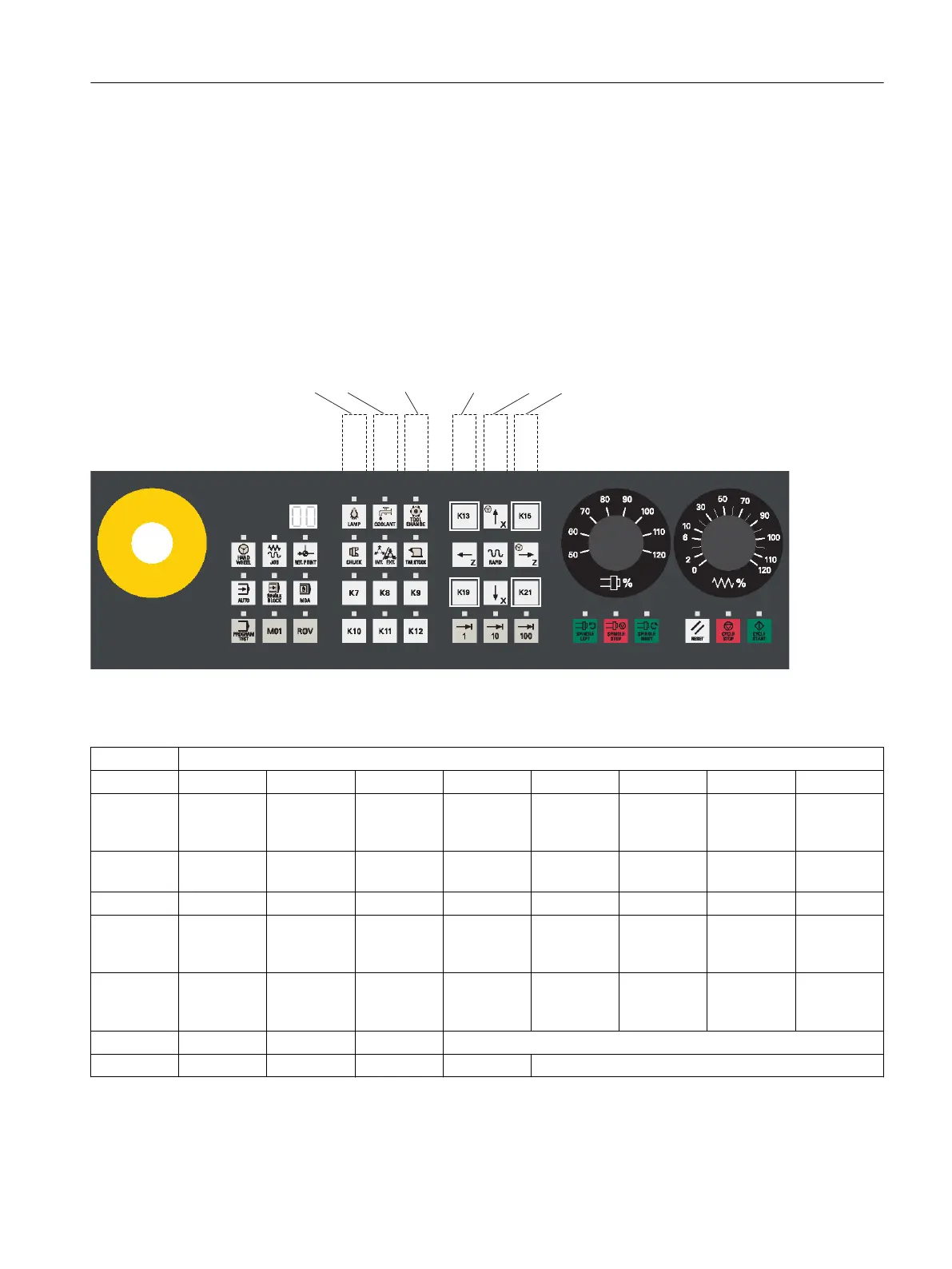

The
figure
below shows the front view of the horizontal MCP for the turning variant of the control
system.
Note that labels K13, K15, K19, and K21 are not included in the pre-defined MCP insertion
strips. The figure includes these labels so that when you read the information in the following
two tables, you know which keys on the MCP it refers to.
.
..
.
707070707070
From the MCP
DB1000 From the MCP [r]
Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
DBB0 M01 PRO‐
GRAM
TEST
MDA SINGLE
BLOCK
AUTO REF. POIN
T
JOG HAND
WHEEL
DBB1 Key 7 TAIL
STOCK
INT. EXT. CHUCK TOOL
CHANGE
COOLANT LAMP ROV
DBB2 100 (INC) 10 (INC) 1 (INC) Key 12 Key 11 Key 10 Key 9 Key 8
DBB3 Axis tra‐
versing key
(↑x)
Key 13 CYCLE
START
CYCLE
STOP
RESET SPINDLE
RIGHT
SPINDLE
STOP
SPINDLE
LEFT
DBB4 Key 21 Axis tra‐
versing key
(↓x)
Key 19 Axis tra‐
versing key
(→z)
RAPID Axis tra‐
versing key
(←z)
Key 15
DBB8 Feed override value (in Gray code)
DBB9 Spindle override value (in Gray code)
PLC user interface
6.2 MCP
Parameter Manual
Parameter Manual, 08/2015, 6FC5397-8EP40-0BA1 453
