Load Weighing Device
Page 2 ©2021 Smartrise Engineering, Inc. All Rights Reserved September 29,2021

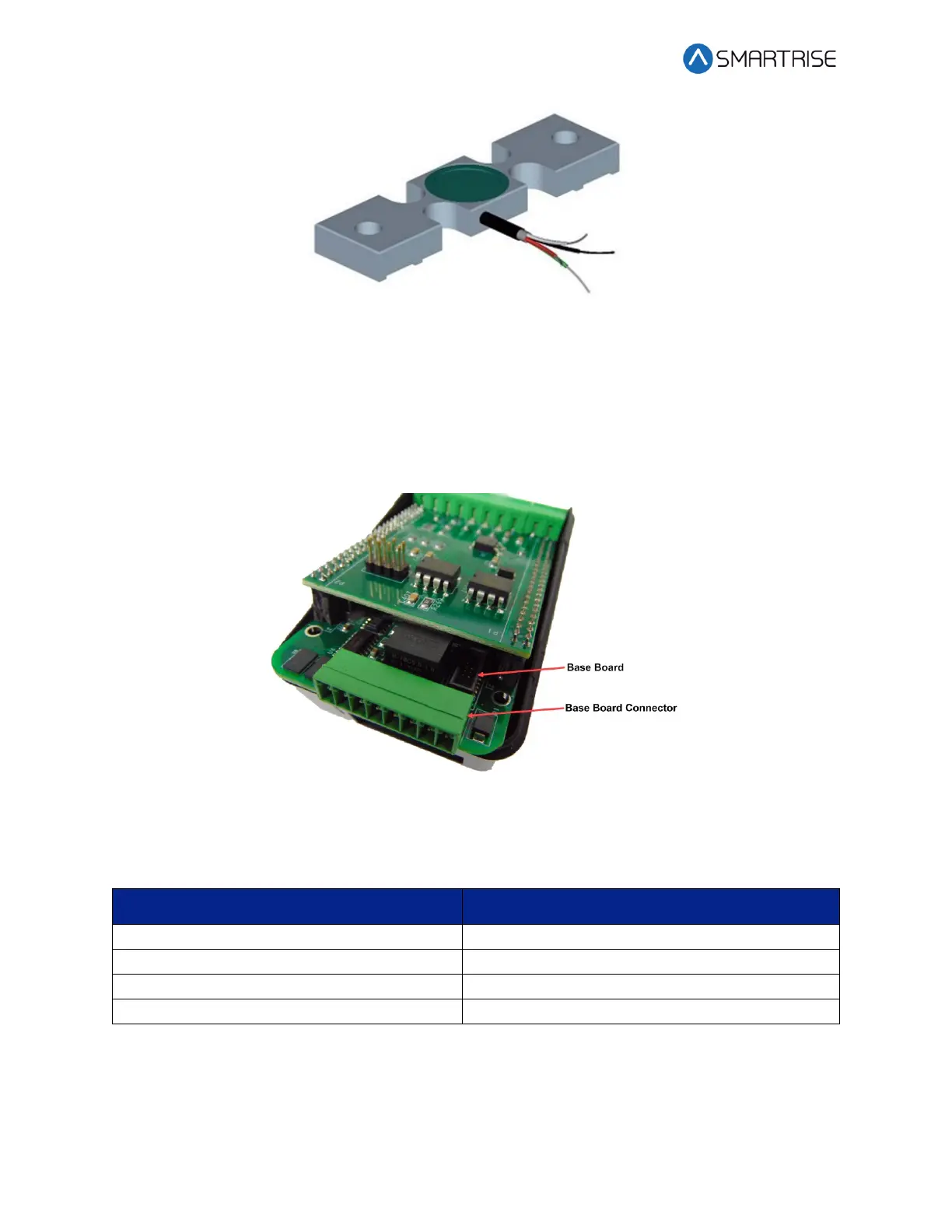

Figure 2: Sensor
Installation
Move the car to the lowest level prior to installing the load cells. After the car is at the lowest
level, install the crosshead sensors according to manufacturer recommendations on top of the
crosshead beam.
Figure 3: Base Board Connector
The table below lists the wiring configuration of the Sensor to the Base board of the LWD.
Table 1: Wiring Configuration of the Sensor to the Base Board of the LWD
Sensor
LWD Base Board Connector
Green
Pin 5
White
Pin 6
Black
Pin 7
Red
Pin 8
