Load Weighing Device
Page 4 ©2021 Smartrise Engineering, Inc. All Rights Reserved September 29,2021
Calibration
The LWD must be calibrated after connecting the LWD and sensors.
LWD Communication
Depending on the location of the LWD, the device communicates to the controller serially to
the MR board or CT board.
The following procedure describes how to set the Load Weighing Device communication.
1. Press the right button to access the Main Menu.
2. From the MAIN MENU, scroll and select Setup.

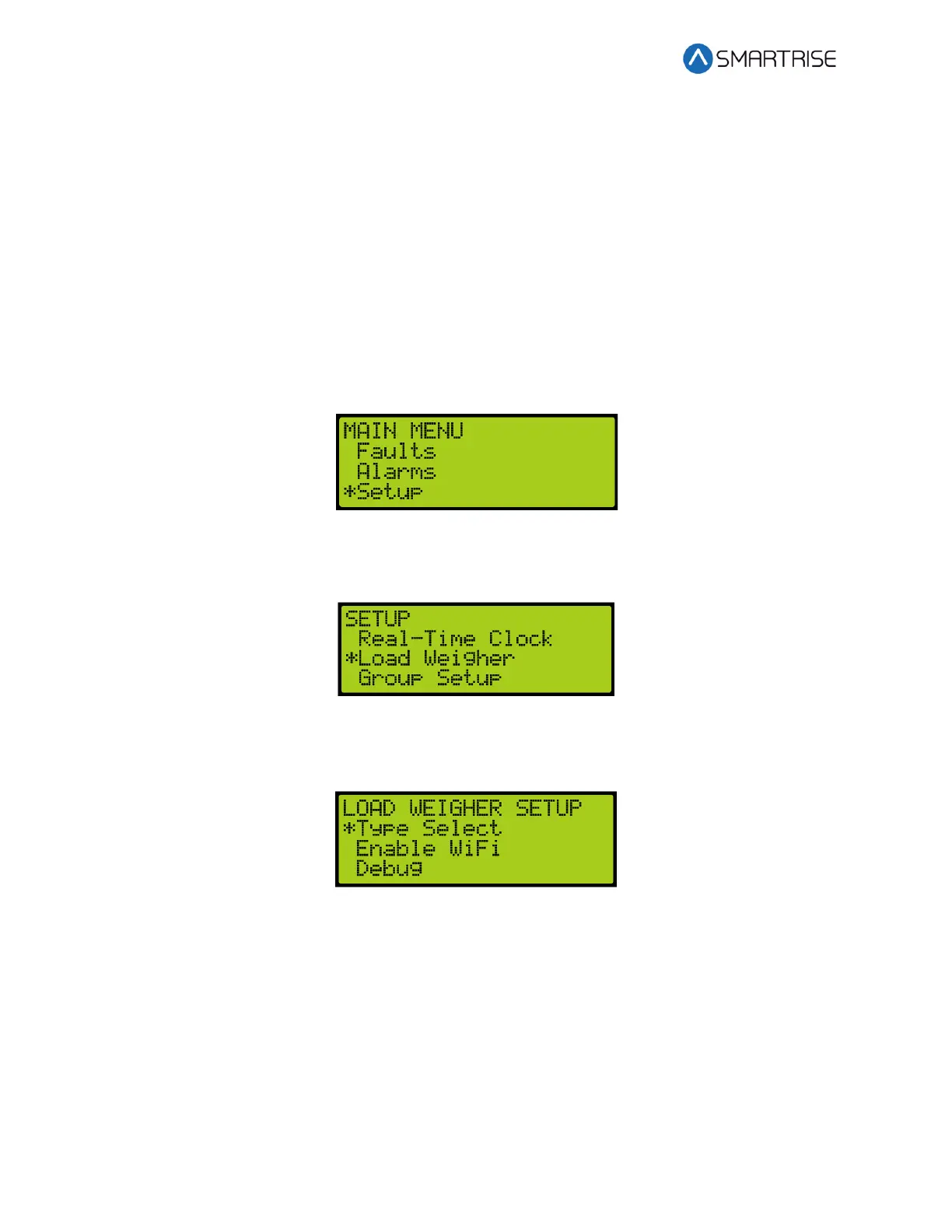

Figure 5: MAIN MENU – Setup
3. From the SETUP menu, scroll and select Load Weigher.
Figure 6: SETUP Menu – Load Weigher
4. From the LOAD WEIGHER SETUP menu, scroll and select Type Select.
Figure 7: LOAD WEIGHER SETUP Menu – Type Select
To Next Page
