Load Weighing Device
September 29,2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page 9
29. Press the left button until the cursor is on the left most position.
30. Scroll and select ROPE COUNT.

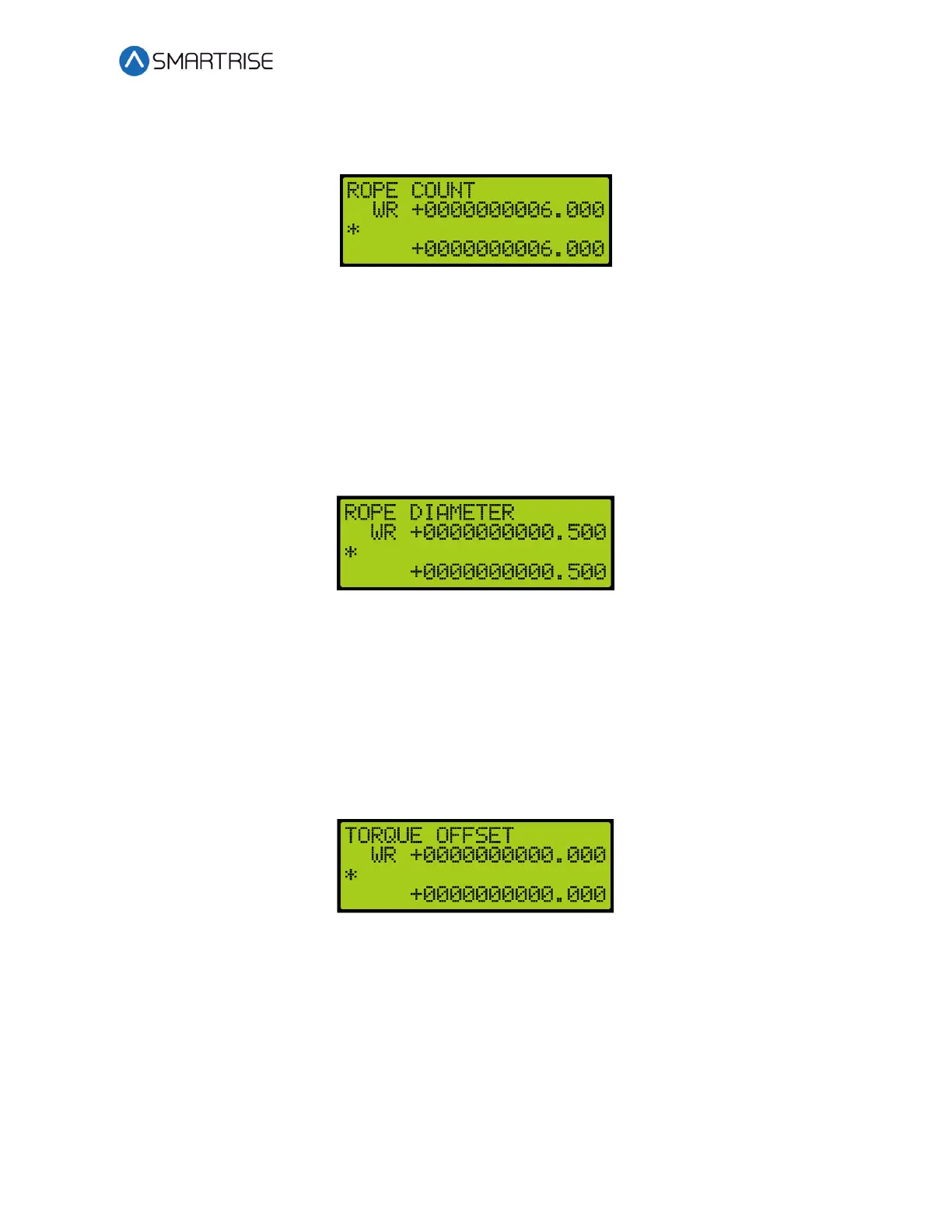

Figure 20: ROPE COUNT Menu
31. Scroll right.
32. Scroll and select the WR command.
33. Scroll right.
34. Scroll and select the rope count.
35. Press Enter to write the information to the LWD.
36. Press the left button until the cursor is on the left most position.
37. Scroll and select ROPE DIAMETER.
Figure 21: ROPE DIAMETER Menu
38. Scroll right.
39. Scroll and select the WR command.
40. Scroll right.
41. Scroll and select the diameter of the rope.
42. Press Enter to write the information to the LWD.
43. Press the left button until the cursor is on the left most position.
44. Scroll and select TORQUE OFFSET.
Figure 22: TORQUE OFFSET Menu
45. Scroll right.
46. Scroll and select the WR command.
47. Scroll right.
48. Scroll and set the torque value to zero.
49. Press Enter to write the information to the LWD.
50. Press the left button until the cursor is on the left most position.
