Load Weighing Device
September 29,2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page 13
4. Scroll and select the WR command.
5. Set full load back to the correct value.
6. Press Enter to write the information to the LWD.
7. Press the left button until the cursor is on the left most position.
8. Scroll and select OVERLOAD LB. See Figure 24.
9. Scroll right.
10. Scroll and select the WR command.
11. Set overload back to the correct value.
12. Press Enter to write the information to the LWD.
Status of the LWD
The following procedure describes how to verify the weight of the car after adjusting the
sensors.
1. Press the right button to access the Main Menu.
2. From the MAIN MENU, scroll and select Status.

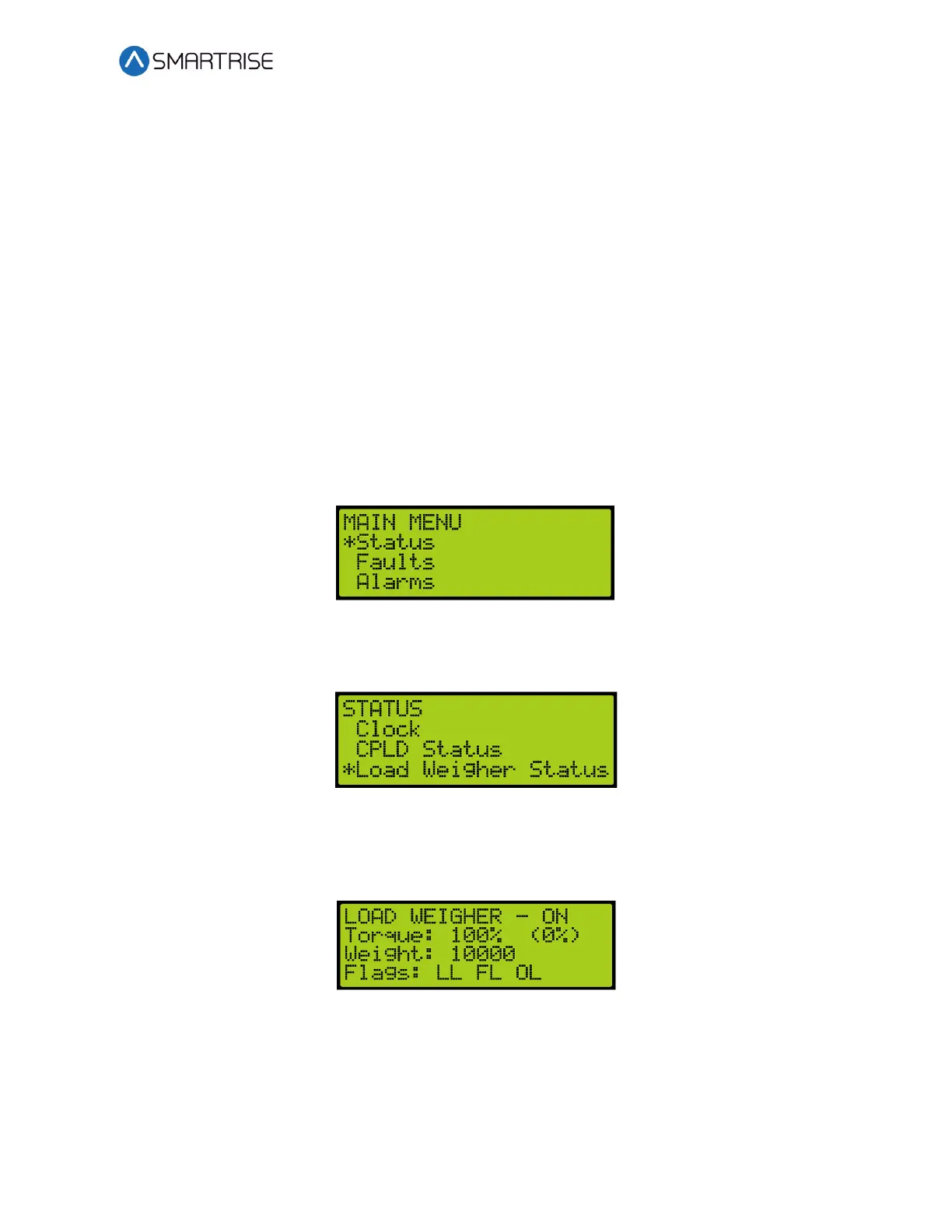

Figure 34: MAIN MENU – Status
3. From the STATUS menu, scroll and select Load Weigher Status.
Figure 35: STATUS Menu – Load Weigher Status
4. The accurate weight is shown on the LOAD WEIGHER menu.
NOTE: Scroll down to view all the LOAD WEIGHER menu lines.
Figure 36: LOAD WEIGHER Menu – 100% Part 1 of 2
