2. Perform test inspection runs in the down direction at the top of the hoistway while
adjusting the torque scaling value until the torque is just high enough to eliminate
rollback.
NOTE: The pretorque scaling ranges from +127 to -128. See Torque Scaling.
If the user continues to increase the number past +127, the number goes to -128.
3. Place the car at the bottom landing with a full load in the car.
4. Perform zero speed and releveling test runs while adjusting the CW percent until the
torque is just enough to prevent rollback. Decreasing the CW percent value will increase
downward pretorque while increasing the CW percent value lowers the downward
pretorque.
5. Perform the same zero speed and releveling test runs at various floors to verify ride
quality.
6. Calibration is complete.
Turn Off Debug on LWD
The following procedure describes how to turn off Debug.
1. Press the right button to access the Main Menu.
2. From the MAIN MENU, scroll and select Setup. See Figure 5.
3. From the SETUP menu, scroll and select Load Weigher. See Figure 6.
4. From the LOAD WEIGHER SETUP menu, scroll and select Debug. See Figure 11.
5. From the DEBUG LWD menu, click the up button to select Off.

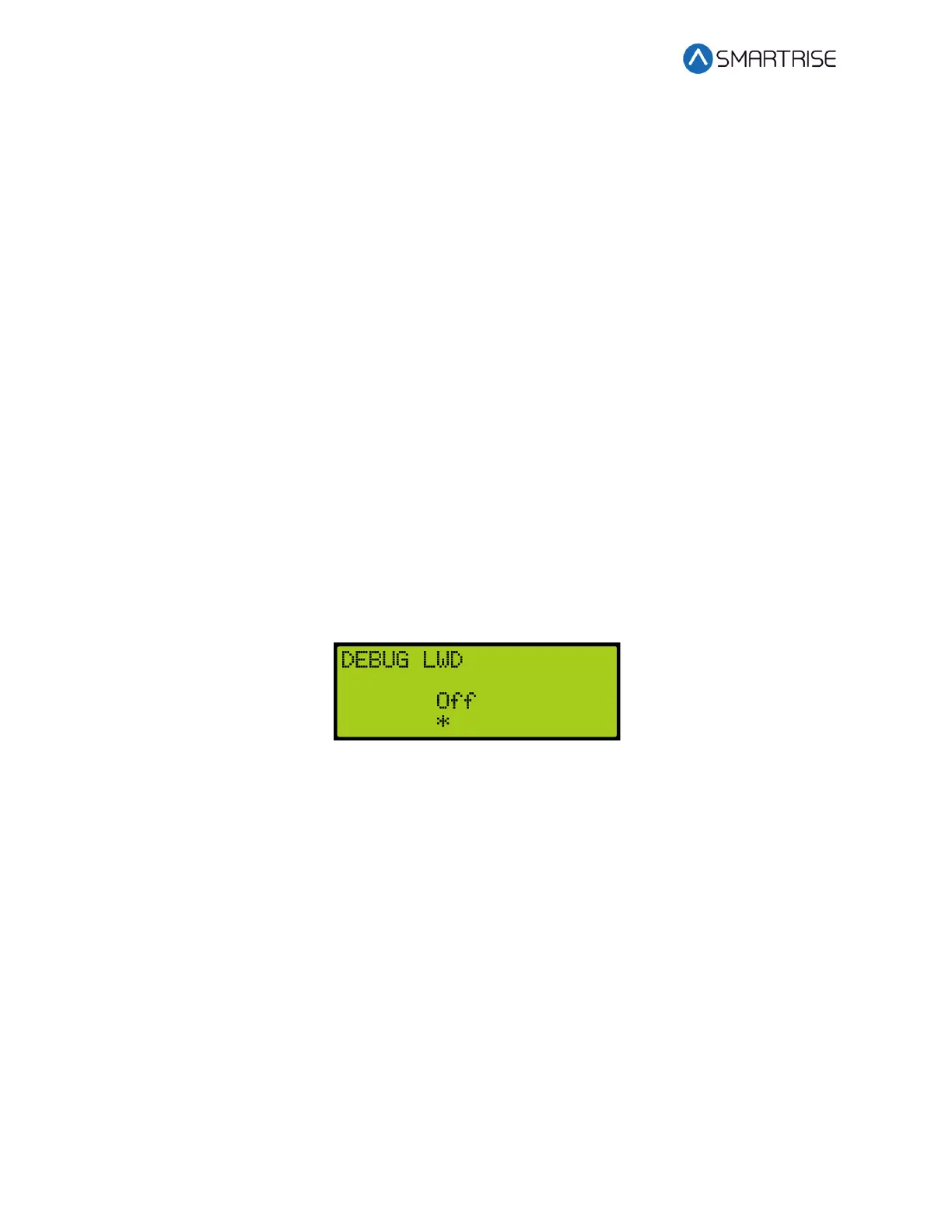

Figure 61: DEBUG LWD Menu - Off
6. Scroll right and press Save.
Status of Load Weigher
To verify the final calibration status, see Status of the LWD.
Each line of the LWD menu (see Figure 36 and Figure 37:) displays the current properties of the
LWD.
