SOMFY SLIM IO RECEIVER PERGOLA+PLUG User Manual

Slim io Receiver Pergola + Plug
EN
23Copyright
©
2017 SOMFY ACTIVITE SA, Société Anonyme.. All rights reserved.

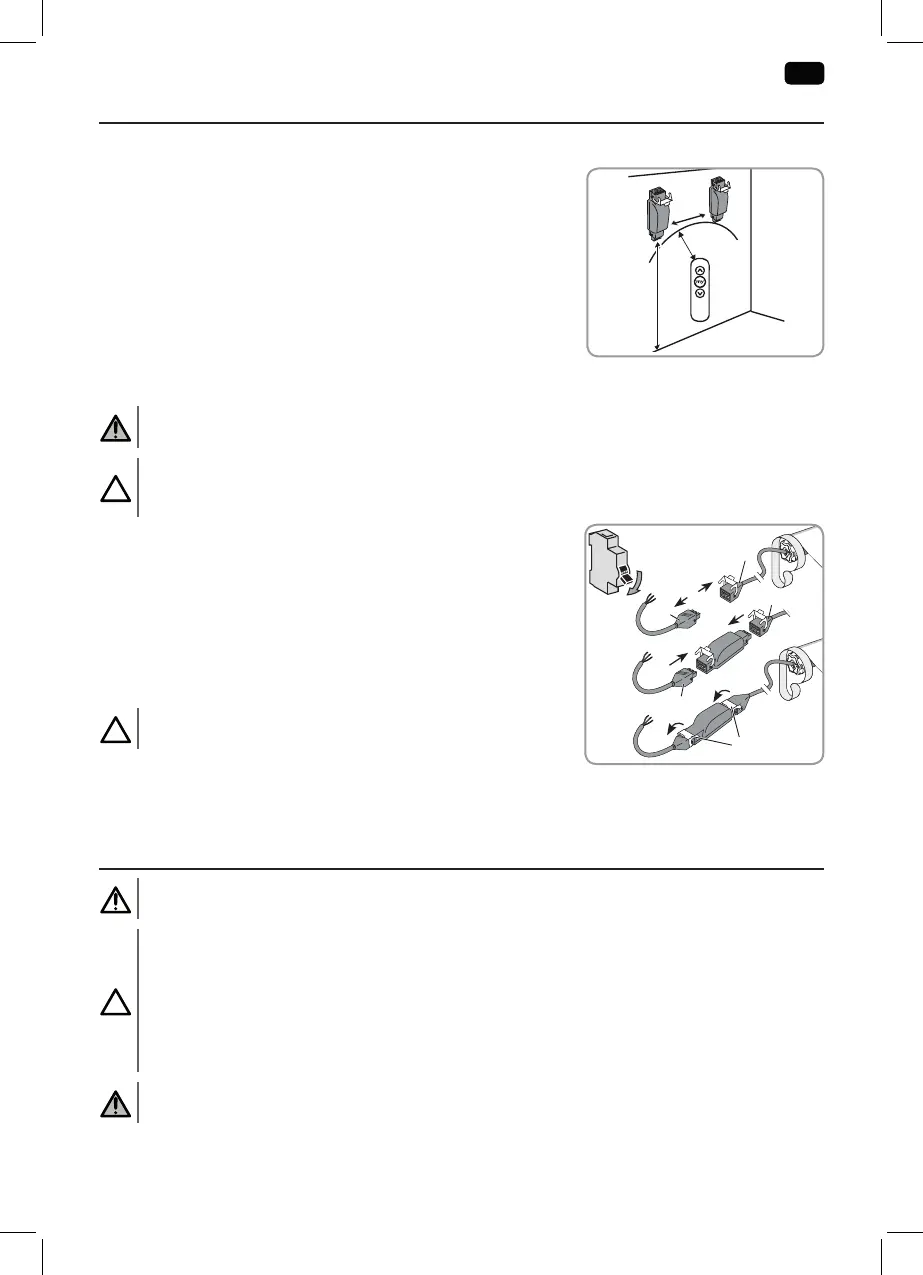

2. INSTALLATION
2.1. INSTALLATION RECOMMENDATIONS
• Minimum distance (X) between a Slim io Receiver
Pergola + Plug and the ground:
X = 150cm
• Minimum distance (Y) between a Slim io Receiver
Pergola + Plug and a radio control point:
Y = 30cm
• Minimum distance (Z) between two Slim io Receiver
Pergola + Plug units:
Z = 20cm
2.2. FITTING THE SLIM IO RECEIVER PERGOLA + PLUG
Warning
Comply with current standards and legislation when installing.
Attention
The Slim io Receiver Pergola + Plug must be installed, protected from rain and in clement
weather conditions, out of sight and out of the reach of children.
1) Turn off the power supply.
2) Disconnect the motor cable quick connection (A) from the
power supply cable quick connection (B).
3) Connect the Slim io Receiver Pergola + Plug between the
motor cable (A) and the power supply cable (B).
• Motor = motor side (A)
• Supply 230V = power supply side (B)
4) Lock the securing hooks (C).
Attention
Ensure that the two quick connections are engaged correctly.
5) Place the Slim io Receiver Pergola + Plug in the awning
bracket to conceal it.
6) Fit the Slim io Receiver Pergola + Plug (using rilsan cables for example).
3. WIRING
Precaution
Respect Standard NF C 15-100 regarding the electrical installations.
Attention
• Cables routed through a metal internal wall must be protected and insulated by sleeving or
sheathing.
• Secure the cables to prevent any contact with moving parts.
• If the receiver is used outdoors and if the power supply cable is of the H05-VVF type, run the
cable in a UV-resistant duct, e.g. trunking.
• Leave the receiver power supply cable accessible: it must be easily replaceable.
Warning
Always make a loop in the power supply cable to prevent water from entering the receiver.
Z
Y
X
A
B
C
A
B
OFF
