Slim io Receiver Pergola + Plug
24 Copyright
©
2017 SOMFY ACTIVITE SA, Société Anonyme.. All rights reserved.

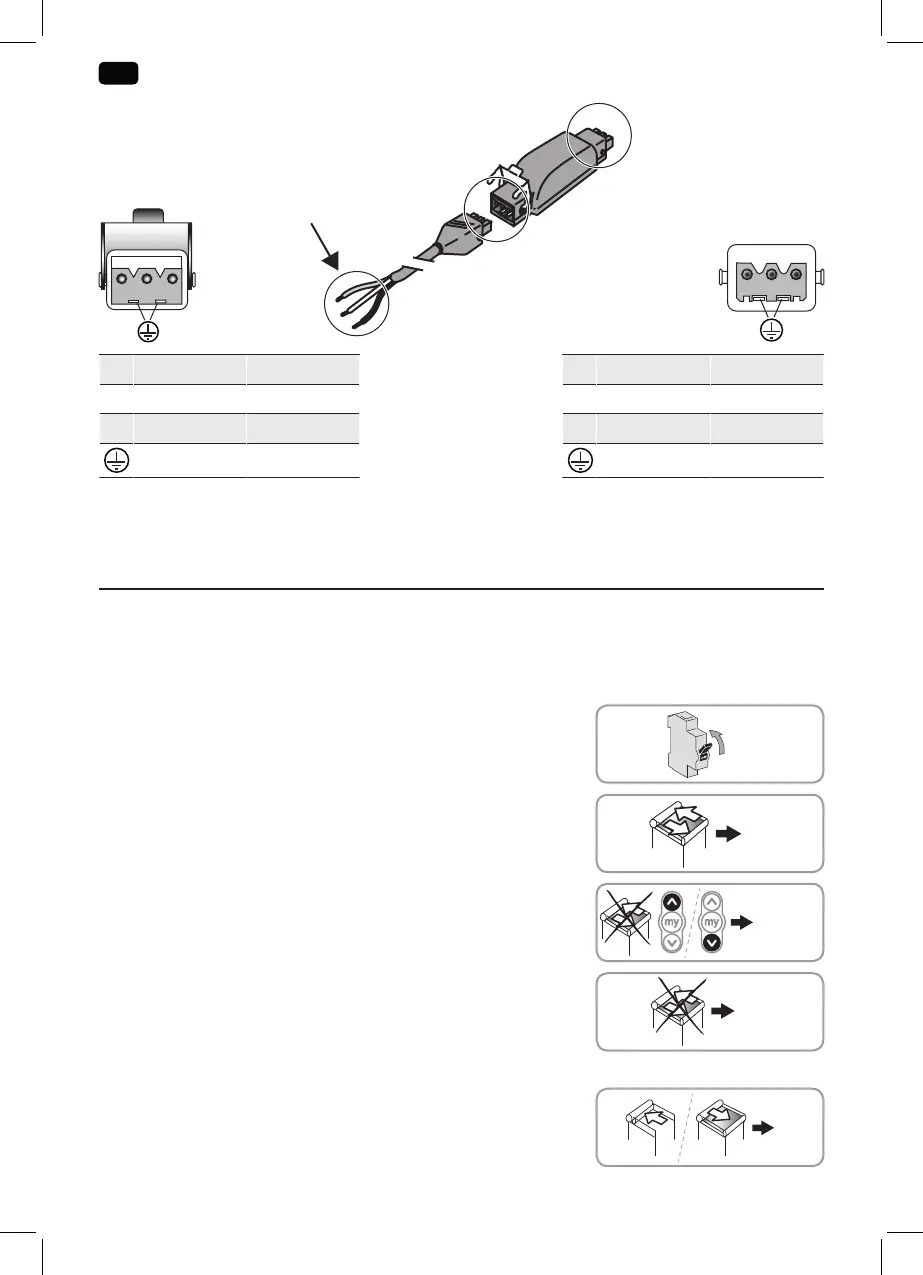

 To ensure that the radio signal is transmitted correctly, it is necessary to pull the Slim io Receiver
Pergola + Plug supply cable out of the motorised product by at least 30cm.
4. COMMISSIONING
This guide only describes commissioning using a Somfy io local control.
For commissioning using any other io control point, refer to the corresponding guide.
 Prerequisite: The end limits of the motor are already set.
4.1. IDENTIFYING SETTING STEPS ALREADY COMPLETED
Only one motor should be powered at a time.
Switch on and follow procedure 4.1.1 or 4.1.2, depending on the
reaction of the motorised product.
4.1.1. The motorised product moves briefly
The linear travel is set and no Somfy control points have been
programmed.
Go to § 4.5.
4.1.2. The motorised product does not move
Press the Up or Down button and follow procedure 4.1.2.1 or
4.1.2.2, depending on the reaction of the motorised product.
4.1.2.1. The motorised product still does not move
The linear travel is not set and the Somfy control point has not been
programmed.
Go to § 4.2.
4.1.2.2. The motorised product raises or lowers completely by pressing and holding the
Up or Down button
The linear travel is set and the Somfy control point has been
programmed.
Go to § 5.
A
A
Ø ≥ 0.75 mm²
B
B
12 3
1
2
3
1 Blue Neutral
2 Black Live
3 - -
Green/yellow Earth
1 Blue Neutral
2 Black Up
3 Brown Down
Green/yellow Earth
ON
4.5
4.1.2.1 /
4.1.2.2
4.2
5
