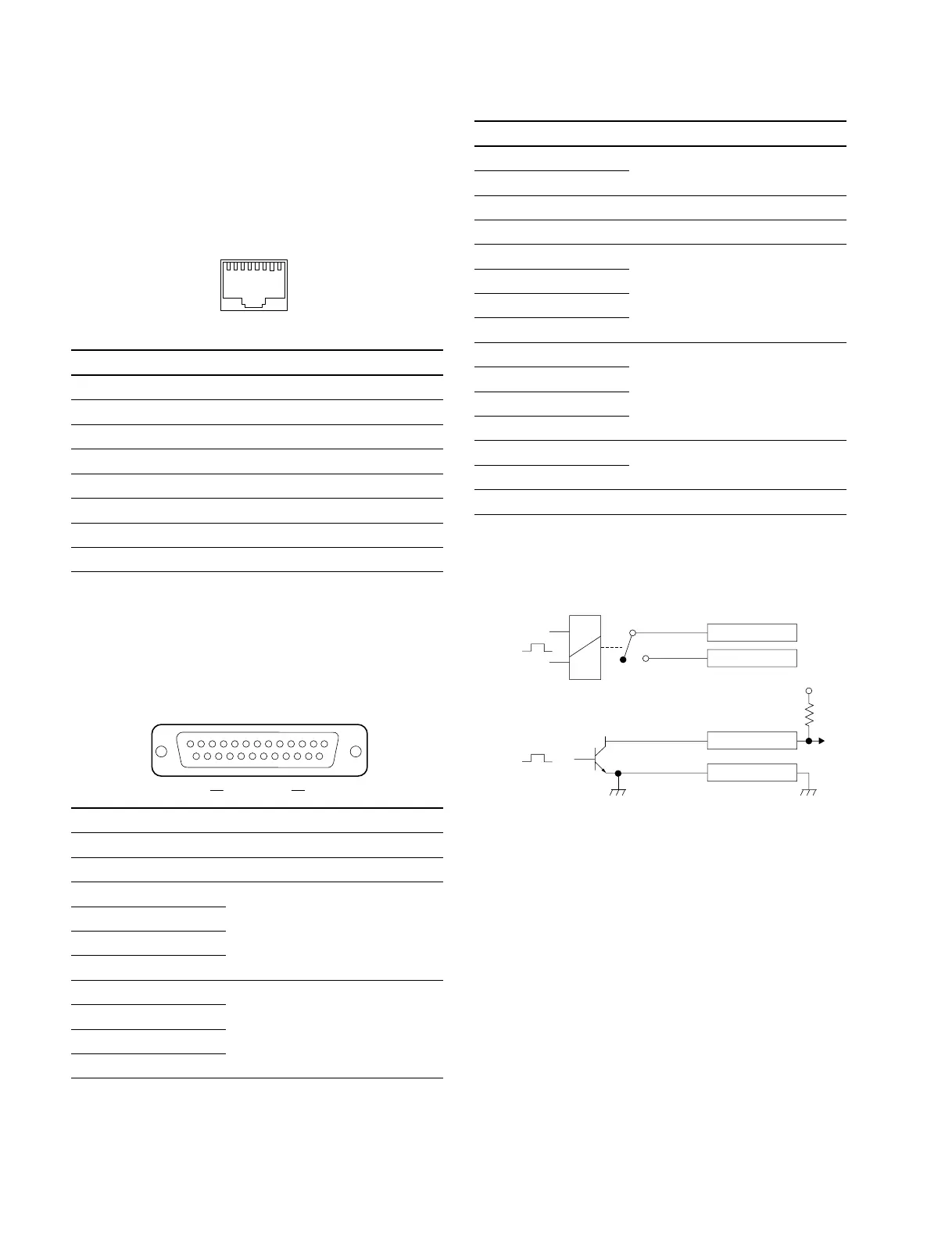

3-8. Pin Output
3-8-3. CCP-8000
Input and output signals of the connectors on the rear panel
are as follows.
CTRL/DATA/PERIPH : 100BASE-TX, RJ-45 (8-pin)
Pin No. Signal name Function
1TX+ Transmitted data (+)
2TX_ Transmitted data (_)
3RX+ Received data (+)
4 _ No Connection
5 _ No Connection
6RX_ Received data (_)
7 _ No Connection
8 _ No Connection
GPI : (D-sub 25-pin, Female)
INPUT x 8, TTL
OUTPUT x 4, relay contacts 30 V 0.1 A
(resistive load)
OUTPUT x 4, open collector 30 V rated voltage
Pin No. Signal name Function
1 GND Ground
2 GND Ground
3 GPI IN 2 General-purpose input
4 GPI IN 4
5 GPI IN 6
6 GPI IN 8
7 GPI OUT 1B General-purpose relay
8 GPI OUT 2B output (B)
(*1)
9 GPI OUT 3B
10 GPI OUT 4B
Pin No. Signal name Function
11 GPI OUT 6 General-purpose open collector
12 GPI OUT 8
output (B)
(*2)
13 GPI OUT COM Ground for open collector output
14 GND Ground
15 GPI IN 1 General-purpose input
16 GPI IN 3
17 GPI IN 5
18 GPI IN 7
19 GPI OUT 1A General-purpose relay output (A)
(*1)
20 GPI OUT 2A
21 GPI OUT 3A
22 GPI OUT 4A
23 GPI OUT 5 General-purpose open collector
24 GPI OUT 7
output
(*2)
25 GPI OUT COM Ground for open collector output
n
A and B of the same number constitute a pair of relay
contacts.
1
8
_ EXT VIEW _
+V
GPI OUT x B
GPI OUT x A
GPI OUT 5-8
GPI OUT COM
x : 1-4
<Relay>
<Open collector output>
(*1)
(*2)
1
13
14
25
EXT VIEW
