MVS-8000 System
SYSTEM SETUP
3-7-3. Setting Wiring
Engineering Setup → Router/Tally → Wiring
Page 7363
This menu is set in order to trace back the connection and to locate the source of the connected equipment
starting from the output of the final stage.
In the system configuration where inputs and outputs of a switcher are connected to a router, the connec-
tion relationship (wiring) between the switcher and the router on the matrix space must be set.
In order to implement this setting, take reading of the connection between the switcher and router from
the system wiring diagram and set the wiring between the input/output terminals and virtual numbers.
After the wiring is set, we can know which input/output of which equipment are connected to which
input/output of which equipment.

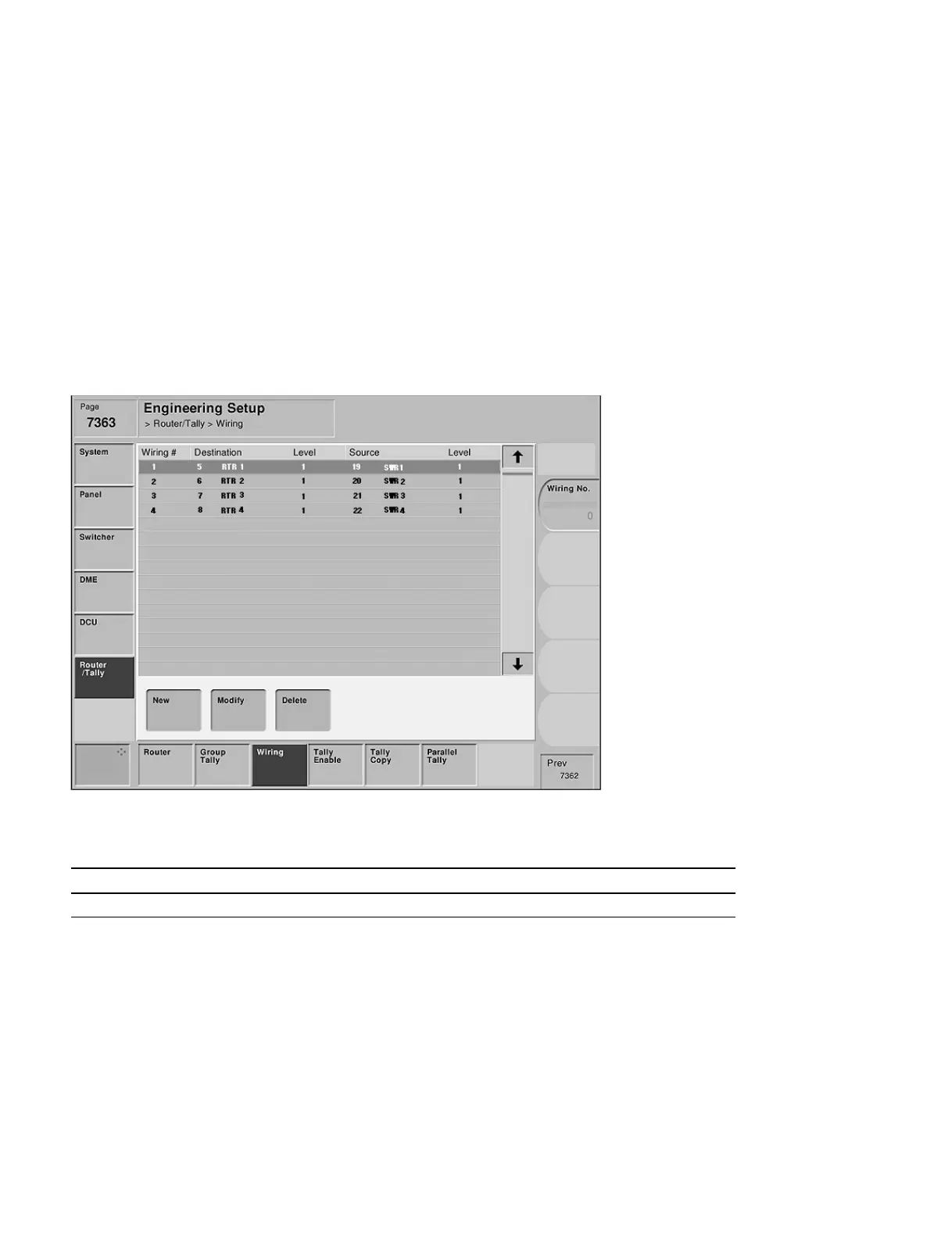

Menu screen
Setting items
System
11
11
1 System
22
22
2 System
33
33
3
Wiring Setting is not required Setting is not required Setting is required
For the system
11
11
1
Because crosspoints of the equipment are not connected (router is not connected) in the system 1, this
setting is not necessary.
For the system
22
22
2
Because crosspoints of the equipment are not connected (router is not connected) in the system 2, this
setting is not necessary.
For the system
33
33
3
Since inputs and outputs of the MVS-8000 are connected to router in the system 3, set the correspond-
ing virtual numbers.
