2-8
MVS-8000 System
SYSTEM SETUP
2-4-2. Installing the Main Panel
n
When installing the main panel into the control console, be
sure to install it with three persons or more.
Install the main panel by following the procedure de-
scribed below.
Tools required
For the 4-line configuration (4ME/3ME with built-in AUX
bus, as a single unit)
Screws (B4 x 6) : 8 pcs
For the 3-line configuration (3ME with AUX bus separate
type/2ME)
Screws (B4 x 6) : 6 pcs

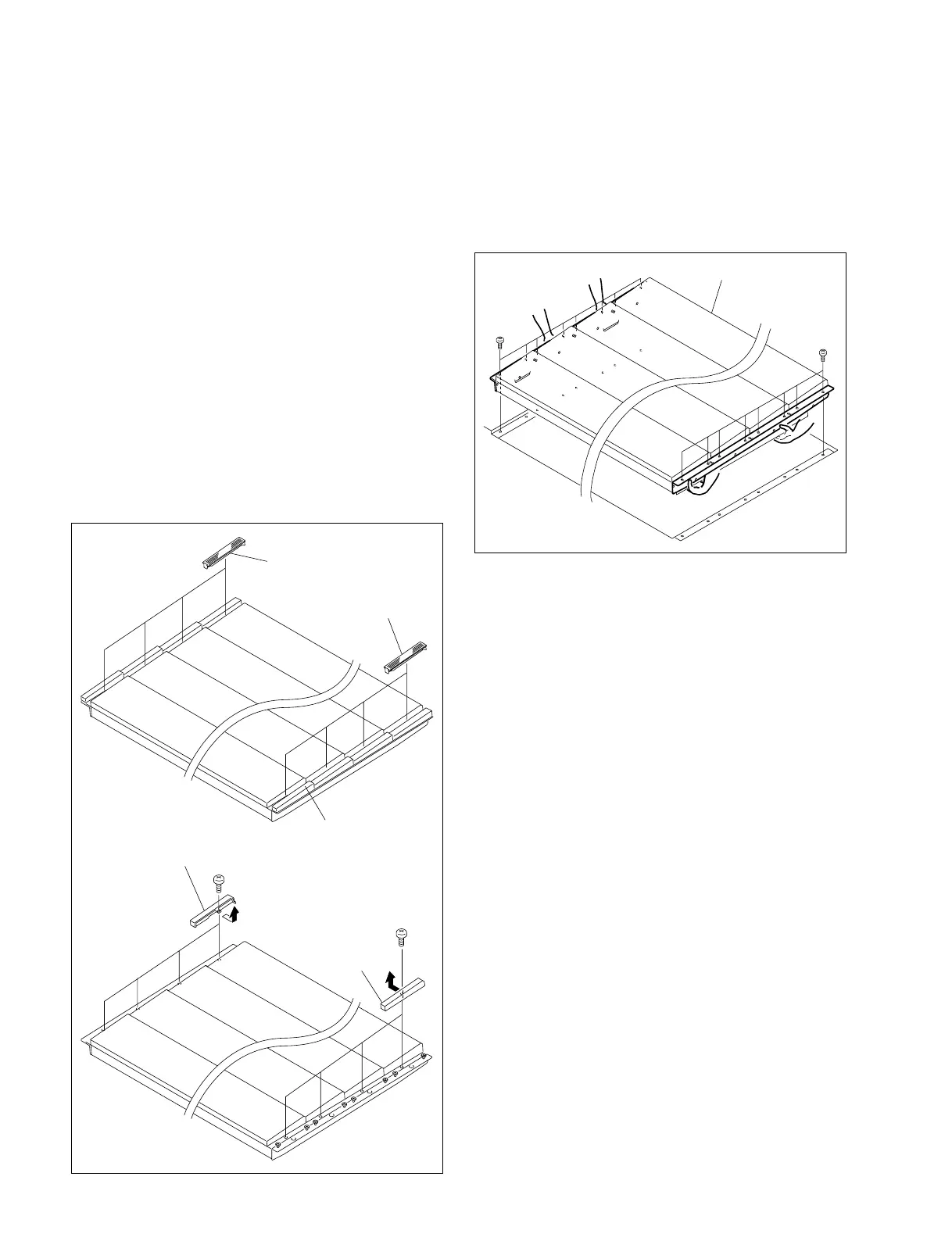

1. Remove the module covers in the right and left.
2. Remove the screws and remove the cap (L) and (R)
respectively.
2-4. CCP-8000 Installation
3. Hold the main panel with the two persons or more and
the remaining person installs the main panel into the
control console while holding the main panel.
4. Fix the main panel to the control console with the
screws.
(The illustration below shows the 4-line configuration.)
5. Install all of the right and left module covers, and the
caps (L) and (R) by reversing the steps 1 and 2 of
removal.
Module cover
Cap
Module cover
B3 x 6
B3 x 6
Cap (R)
Cap (L)
B4 x 6
B4 x 6
Main panel
To Next Page
