Sony CCP-8000 System Setup Manual

2-19
MVS-8000 System
SYSTEM SETUP
2-8. CCP-8000 Panel Cabling

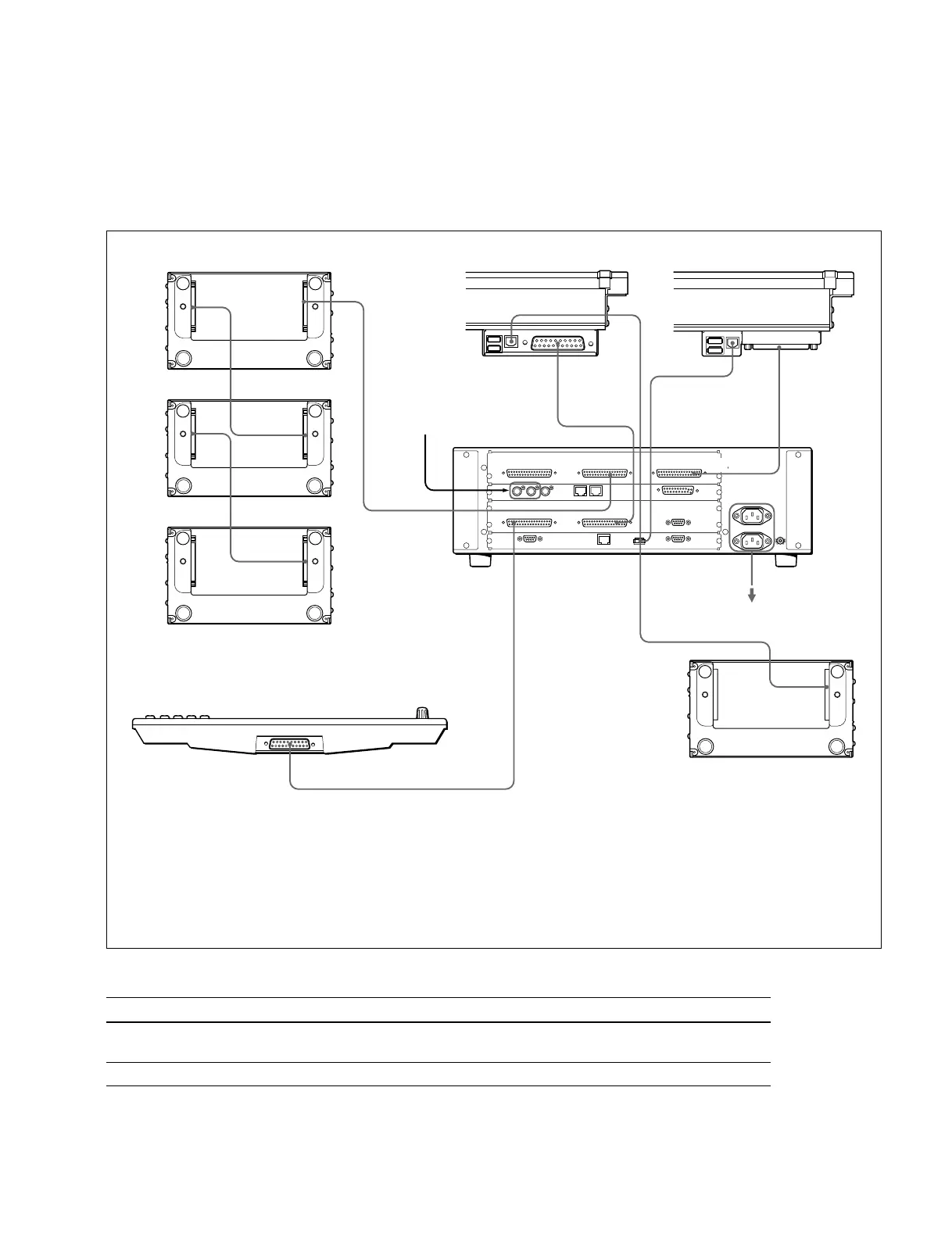

CCP-8000 panel modules connections are shown in figure.
CCP-8000 system control cabling
2-8. CCP-8000 Panel Cabling
MENU PANEL
IN
SCU IN
SCU OUT
SCU IN
SCU OUT
MAIN PANEL EXT PANEL3
HOST
SCU
EXT PANEL 2
SCUHOST
DEVICE
SCU
DEVICE
(*1)
HOST
Extension Adaptor MKS-8075
Main panel
AUX panel
Reference video signal
System Control Unit
MKS-8010
Menu Panel
MKS-8011
AC 100 to 240 V
Memory Card/USB Adaptor
MKS-8076
(Max.10 m)
(Max.10 m)
(Max.10 m)
(Max.5 m)
(Max.5 m)
(Max.5 m)
(Max.5 m)
(Max.5 m)
(Max.10 m)
(*1) : There are three methods as described below to install the memory card/USB module MKS-8025.
. In order to install the memory card/USB adaptor MKS-8025 into the main panel, connect the DEVICE terminal of the
MKS-8010 to the HOST terminal of the main panel.
. In order to install the memory card/USB adaptor MKS-8025 into the AUX panel, connect the DEVICE terminal of the
MKS-8010 to the HOST terminal of the AUX panel.
. In order to install the memory card/USB adaptor MKS-8025 outside the system using the MKS-8076, connect the
DEVICE terminal of the MKS-8010 to the HOST terminal of the MKS-8076.
Supplied and required cables
Cable Description Quantity Part No.
EXT/MENU/MAIN D-sub 50-pin cable (5/10 m) * Supplied with CCP-8000
PANEL cable SWC-5005/SWC-5010
USB cable USB Type A 1 Supplied with CCP-8000
* : Quantity depends on the configuration.
