1-13
MVS-8000 System
SYSTEM SETUP
1-3. System Description
1-3-3. CCP-8000
The modular design of MVS-8000 system control panel provides flexibility for locating the desired
module in their preferred area of each M/E base plate. M/E base plates are offered in the three types of
16, 24 and 32 button style, while M/E bank are available in 2 M/E, 3 M/E, and 4M/E configuration.
It also have some module of DME control, Key Frame Control, Memory Card/USB, Flexi Pad and etc.
The CCP-8000 consists of System Control Unit (MKS-8010), Menu Panel (MKS-8011), and Main Panel.
System Control unit (MKS-8010) is a 3 rack unit chassis, which can be mounted in the standard 483 mm
(19 inch) rack.
Main panel
The main panel, comprised of various types of operation modules, provides the operating controls of the
system. It can be fleely laid out, with variable numbers of M/E banks (2 to 4) and cross-point buttons (16,
24 or 32) and variable layout of the AUX bus module. Operation modules can be mounted in the MKS-
8075 Extension Adaptor and MKS-8076 Memory Card/USB Adaptor for installation apart from the main
panel. The AUX bus module can also be removed from the main panel and used as an AUX panel.
Menu panel (MKS-8011)
The menu panel provides a GUI interface for operating the menus.

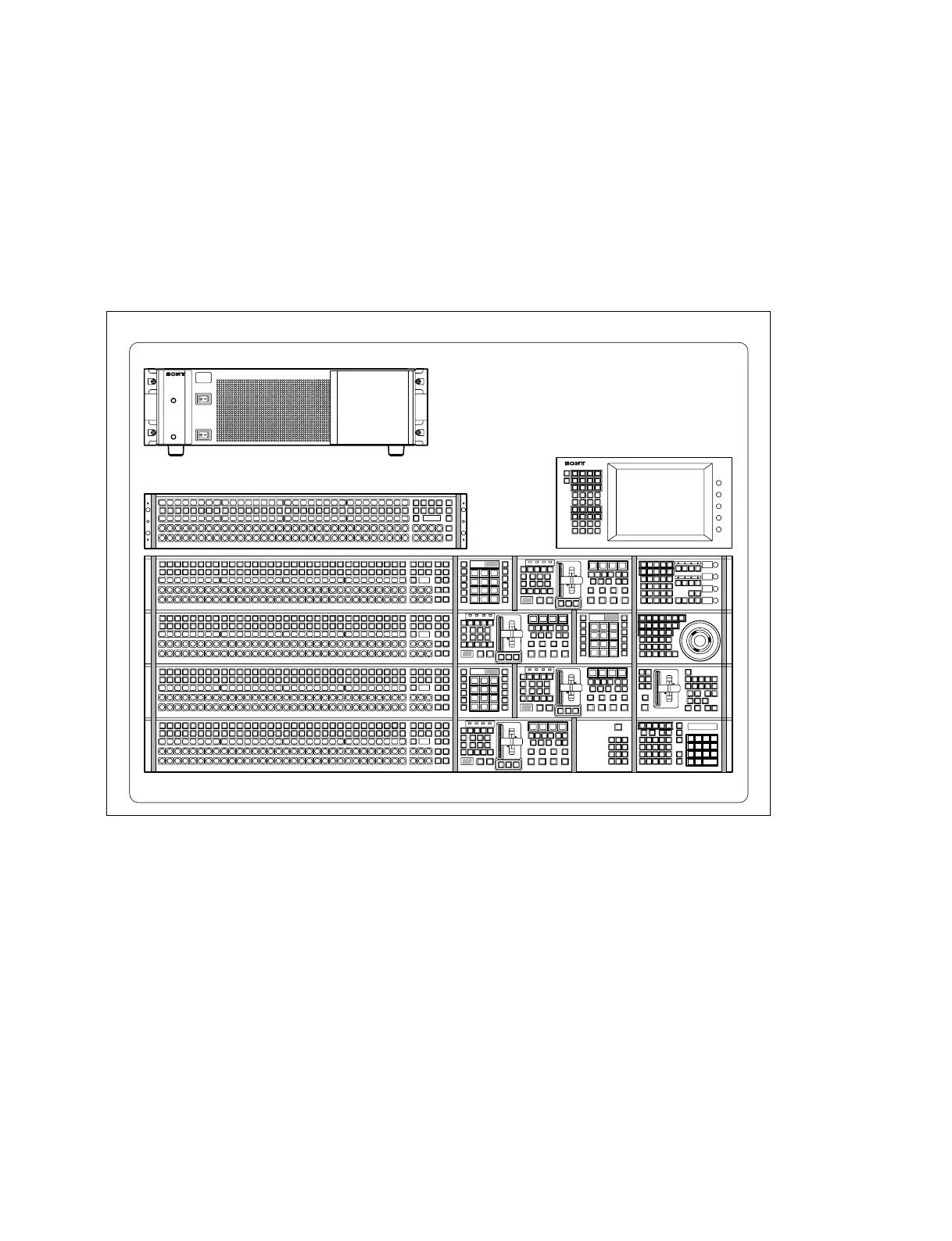

CCP-8000 IM
AUX PANEL
MENU PANEL
MIAN PANEL
POWER A
SYSTEM CONTROL UNIT MKS-8010
MKS-8010
CCP-8000
