Sony DFS-900M User Manual

136
Customizing DME Effects
Chapter 5 Adjusting Wipes and Keys

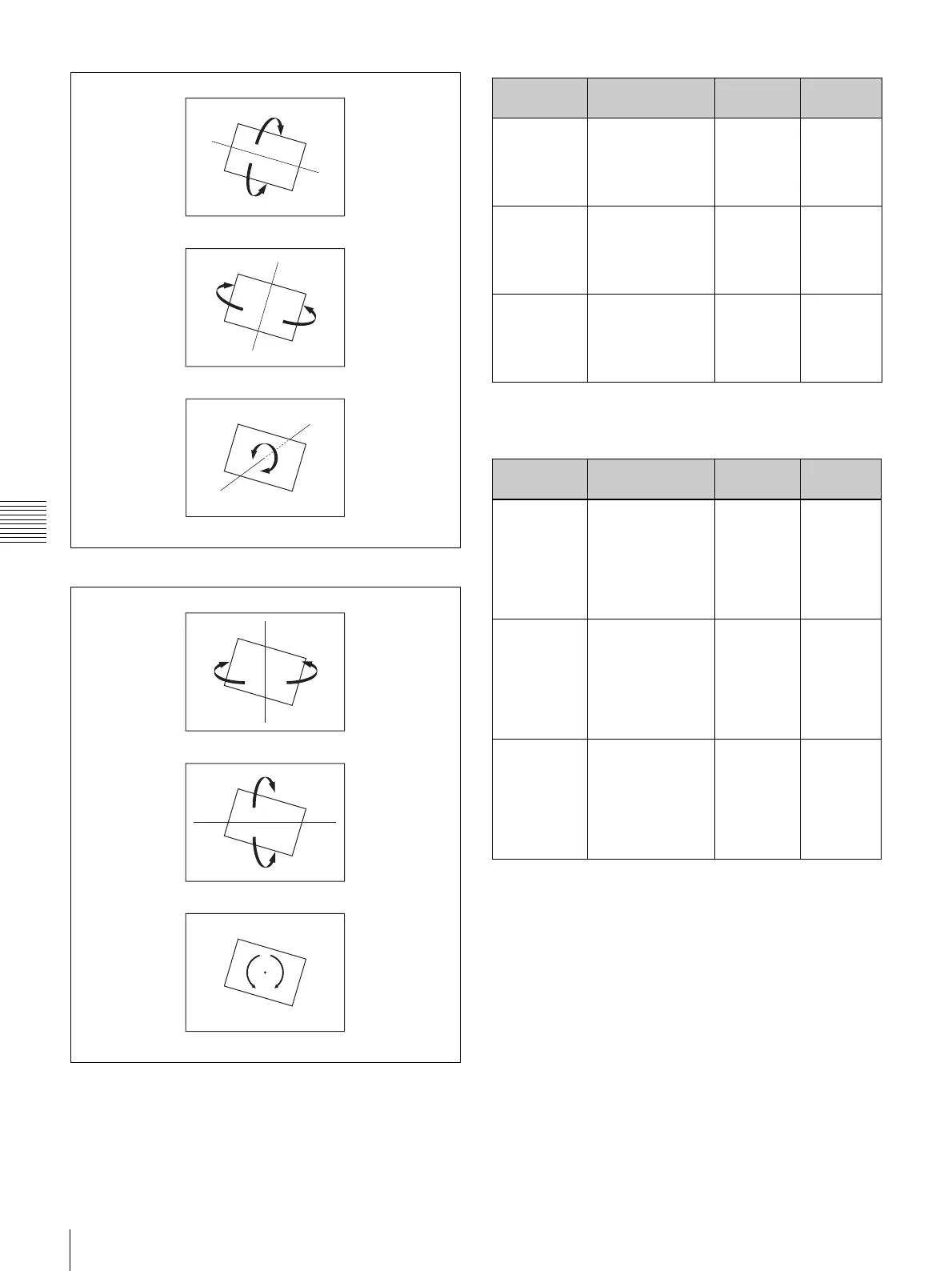

Changing the rotation angle of an image in source coordinates
Changing the rotation angle of an image in target coordinates
Position sub menu parameters
Operations are common for the sub menus of all
coordinate systems.
Rotation sub menu parameters
Operations are common for the sub menus of all
coordinate systems.
Aspect sub menu parameters
Adjust the following parameters to change the aspect ratio
of the image.
Rotate around X axis
Rotate around Y axis
Rotate around Z axis
Rotate around X axis
Rotate around Y axis
Rotate around Z axis
Operation Knob
Joystick
Parameter Settings
Set the X
coordinate
(horizontal
position) of
the image.
F2
Move left and right
PX
(Position X)
–8.000 to
8.000
Set the Y
coordinate
(vertical
position) of
the image.
F3
Move up and
down
PY
(Position Y)
–8.000 to
8.000
Set the Z
coordinate
(depth
position) of
the image.
F4
Rotate clockwise/
counterclockwise
PZ
(Position Z)
–8.000 to
8.000
Operation Knob
Joystick
Parameter Settings
Set the
rotation
angle of the
image along
the X axis
(horizontal
rotation).
F2
Move left and right
RX
(Rotation
X)
–8.000 to
8.000
Set the
rotation
angle of the
image along
the Y axis
(vertical
rotation).
F3
Move up and
down
RY
(Rotation
Y)
–8.000 to
8.000
Set the
rotation
angle of the
image along
the Z axis
(depth
rotation).
F4
Rotate clockwise/
counterclockwise
RZ
(Rotation Z)
–8.000 to
8.000
