23
BKDF-902 1.5M/E Control Panel
Chapter 2 Names and Functions of Parts
The SHIFT buttons have two operating modes: one in
which the buttons function as shift buttons only while held
down, and one in which the shift function is alternately
enabled and disabled each time the buttons are pressed.
For details, see “Selecting the operating mode of the
SHIFT buttons” (page 105).

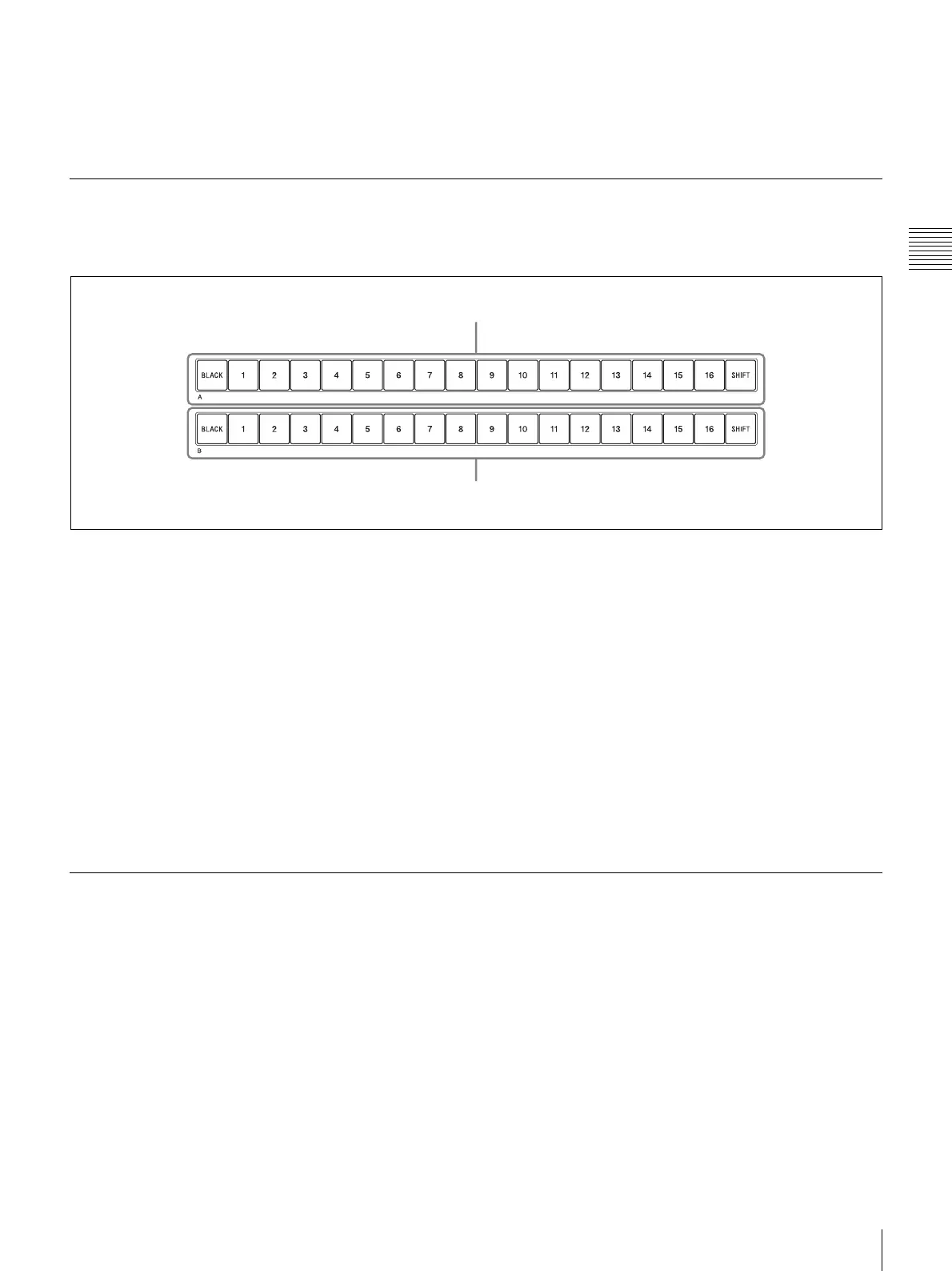

4 M/E Cross-Point Bus Block
This block allows you to select material signals to use in
creating the video.
a M/E bus A selection button row
Select the background A bus video which is output before
the start of a transition (video switching).
For the functions of the various buttons, see “Assigning
video input signals to cross-point selection buttons” (page
76).
b M/E bus B selection button row
Select the background B bus video which is output after
the start of a transition.
For the functions of the various buttons, see “Assigning
video input signals to cross-point selection buttons” (page
76).
About the SHIFT buttons
The SHIFT buttons on the right side of each selection
button rows allow you to switch between the two signals
assigned to each button in the rows.
The SHIFT buttons have two operating modes: one in
which the buttons function as shift buttons only while held
down, and one in which the shift function is alternately
enabled and disabled each time the buttons are pressed.
For details, see “Selecting the operating mode of the
SHIFT buttons” (page 105).
5 PROGRAM/PRESET Cross-Point Bus Block
This block allows you to select material signals to use in
creating the video.
1M/E bus A selection button row
2M/E bus B selection button row
