Pin Assignments
DFS-900M Processor Unit

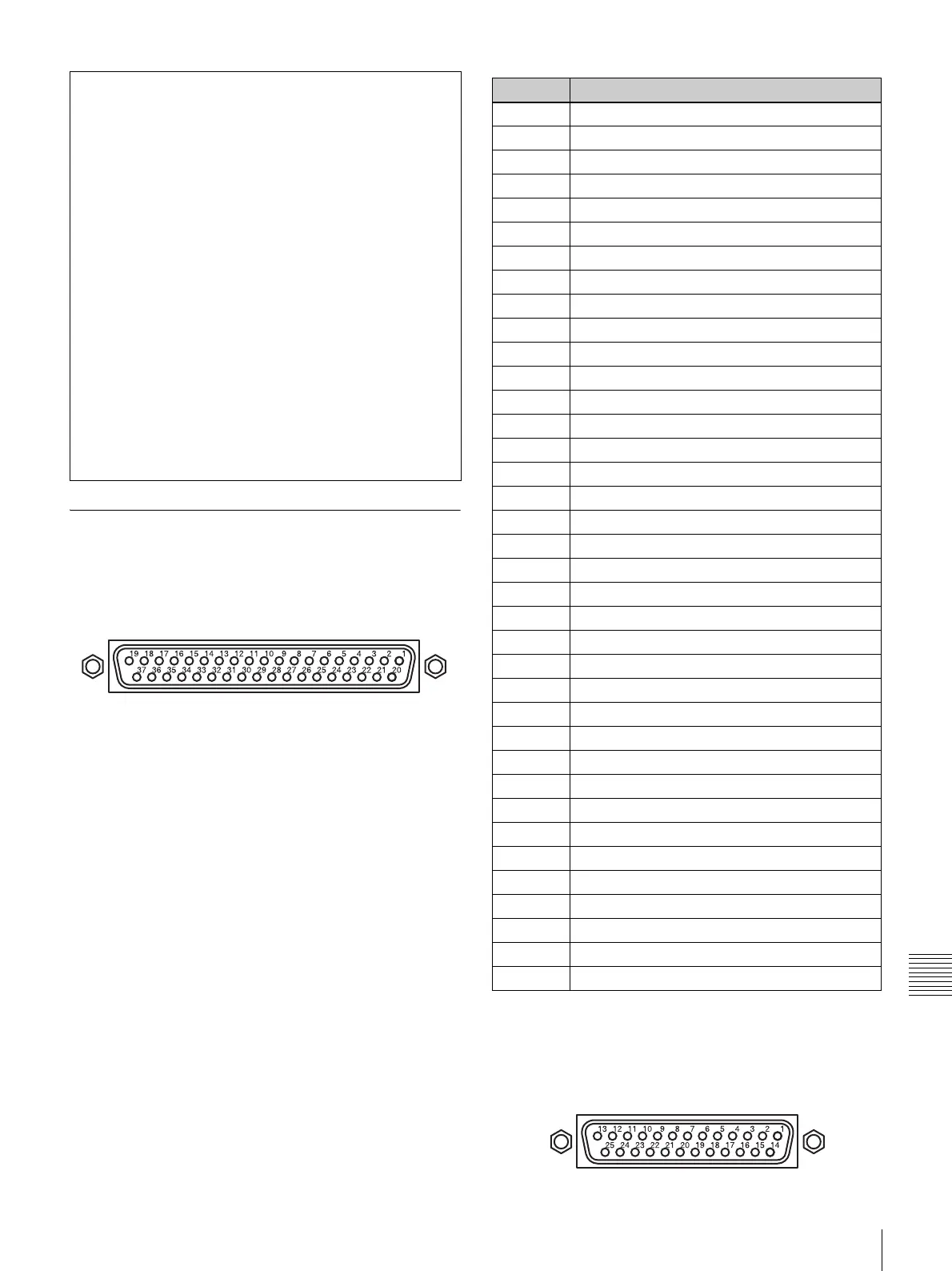

Tally/GPI OUT connector (D-sub 37-pin, female)
For the functions that can be assigned to pins 1 to 16, 20
to 27, and 30 to 37, see “Tally Output Settings” (page
164).
GPI IN connector (D-sub 25-pin, female)
Notes
• Always make a test recording, and verify that it was
recorded successfully.
SONY WILL NOT BE LIABLE FOR DAMAGES OF
ANY KIND INCLUDING, BUT NOT LIMITED TO,
COMPENSATION OR REIMBURSEMENT ON
ACCOUNT OF FAILURE OF THIS UNIT OR ITS
RECORDING MEDIA, EXTERNAL STORAGE
SYSTEMS OR ANY OTHER MEDIA OR
STORAGE SYSTEMS TO RECORD CONTENT OF
ANY TYPE.
• Always verify that the unit is operating properly before
use. SONY WILL NOT BE LIABLE FOR
DAMAGES OF ANY KIND INCLUDING, BUT
NOT LIMITED TO, COMPENSATION OR
REIMBURSEMENT ON ACCOUNT OF THE LOSS
OF PRESENT OR PROSPECTIVE PROFITS DUE
TO FAILURE OF THIS UNIT, EITHER DURING
THE WARRANTY PERIOD OR AFTER
EXPIRATION OF THE WARRANTY, OR FOR
ANY OTHER REASON WHATSOEVER.
Pin No. Signal
1Tally/GPI OUT 1
2Tally/GPI OUT 2
3Tally/GPI OUT 3
4Tally/GPI OUT 4
5 Tally/GPI OUT 5
6Tally/GPI OUT 6
7Tally/GPI OUT 7
8Tally/GPI OUT 8
9Tally/GPI OUT 9
10 Tally/GPI OUT 10
11 Tally/GPI OUT 11
12 Tally/GPI OUT 12
13 Tally/GPI OUT 13
14 Tally/GPI OUT 14
15 Tally/GPI OUT 15
16 Tally/GPI OUT 16
17 +5V
18 +5V
19 +5V
20 Tally/GPI OUT 17
21 Tally/GPI OUT 18
22 Tally/GPI OUT 19
23 Tally/GPI OUT 20
24 Tally/GPI OUT 21
25 Tally/GPI OUT 22
26 Tally/GPI OUT 23
27 Tally/GPI OUT 24
28 GND
29 GND
30 Tally/GPI OUT 25
31 Tally/GPI OUT 26
32 Tally/GPI OUT 27
33 Tally/GPI OUT 28
34 Tally/GPI OUT 29
35 Tally/GPI OUT 30
36 Tally/GPI OUT 31
37 Tally/GPI OUT 32
