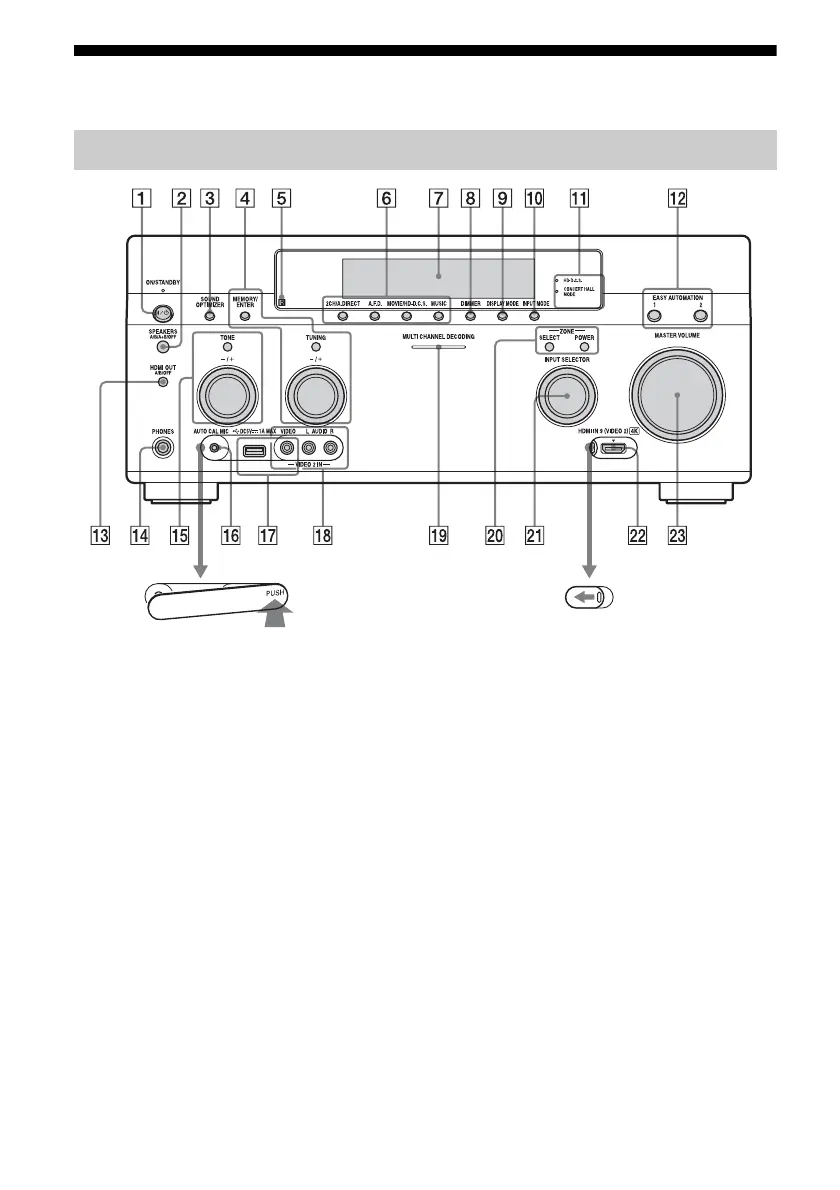

Description and location of parts
A ?/1 ON/STANDBY
Turns the receiver on or off.
The lamp above the button lights up as
follows:
Green: The receiver is turned on.
Amber: The receiver is in standby mode,
and
– “Control for HDMI” (page 108) or
“Network Standby” (page 110) is set to
“On.”
– “Pass Through” (page 108) is set to
“On” or “Auto.”
– The receiver in zone 2 or zone 3 is
turned on.
The lamp turns off when the receiver is in
standby mode and the above settings are
off.
B SPEAKERS (A/B/A+B/OFF)
(page 47)
C SOUND OPTIMIZER (page 66)
D MEMORY/ENTER, TUNING +/–
E Remote sensor
Receives signals from remote control.
F 2CH/A.DIRECT, A.F.D., MOVIE/
HD-D.C.S., MUSIC (page 61, 62)
G Display window (page 12)
Front panel
To remove the cover
Press PUSH.
When you remove the cover, keep it out of
reach from children.
To open the cover
Slide the cover to the left.
