16
GB
* You must connect the HDMI OUT or MONITOR
OUT jack to your TV to watch the selected input
image (page 29).
Use the supplied remote control to operate this
receiver and other equipment. The remote
control is pre-programmed to operate Sony
video/audio equipment initially.
Note
Do not expose the remote sensor to direct sunlight or
lighting apparatuses. Doing so may cause a
malfunction.
Tip
When the receiver no longer responds to the remote
control, replace all the batteries with new ones.

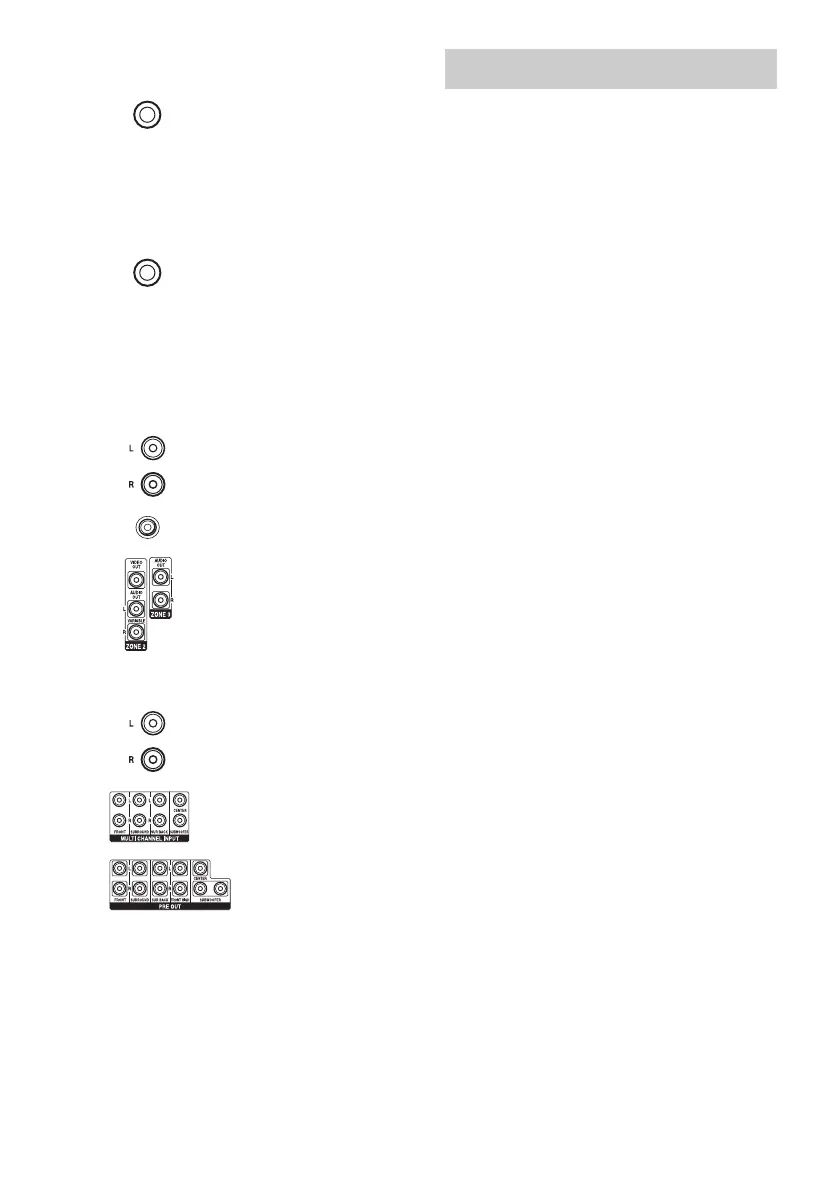

H Control jacks for Sony and other
external equipment
IR REMOTE IN/OUT
jacks (page 68)
Connect an IR repeater (not supplied) to
IN to use the Multi-zone function.
Connect an IR blaster (not supplied) to
OUT. Signals input from IN will be
output from OUT.
TRIGGER OUT jacks
(page 112)
Connect to interlock on/off of the power
supply of other 12V TRIGGER compliant
equipment.
I VIDEO/AUDIO INPUT/OUTPUT
section (page 29, 32, 33, 34, 35)
AUDIO IN/OUT jacks
VIDEO IN/OUT* jacks
AUDIO OUT jacks
VIDEO OUT jack
(page 68)
J AUDIO INPUT/OUTPUT section
AUDIO IN/OUT jacks
(page 39, 43)
MULTI CHANNEL INPUT
jacks (page 39)
PRE OUT jacks
Connect to an external power amplifier.
Remote control
To Next Page
