50
Chapter 2 Menu
C8111
INPUT CONFIGURATION C1
REMOTE C2
PASSWORD C3
SYSTEM CONFIGURATION C4
ON SCREEN SET C5
ALIGNMENT C6
WHITE UNIFORMITY C7
EXTEND MENU C8
ENTER PASSWORD
C81
RE-LOAD FACTORY
DATA C811
SLOT 1 CONTROL
SLOT 2 DUNIF/DCONV
SLOT 3 POWER SUPPLY 2
SLOT 4 SCAN CONVERTER
SLOT 5 EMPTY
SLOT 6 VIDEO AMP
SLOT 7 DEFLECTION
SLOT 8 EMPTY
SLOT 9 POWER SUPPLY
MEMORY CARD
C812
BACK UP SYSTEM
DATA C8121
RE-STORE SYSTEM
DATA C8122
RE-START MONITOR C813
ADJ INT SIGNAL C814
MAINTENANCE C815
Overview
[C8] Using Extended Functions (SET UP 8)
— EXTEND Menu
Level 1 Level 2 Level 3 Level 4 Level 5
Setting Lists of the EXTEND Menu
This section explains the setting lists displayed in the
menu.
How to read the setting lists
• For purposes of explanation, each setting list is
preceded by a menu number. These numbers are not
displayed on the screen.
For more information about the menu number, see “About
menu numbers” on page 16.
•The arrow mark (k) refers you to another setting list
that appears after you make the setting, or to an
operation that is carried out as a result of the setting.
When there is no arrow mark, the menu does not
have any sub-list.

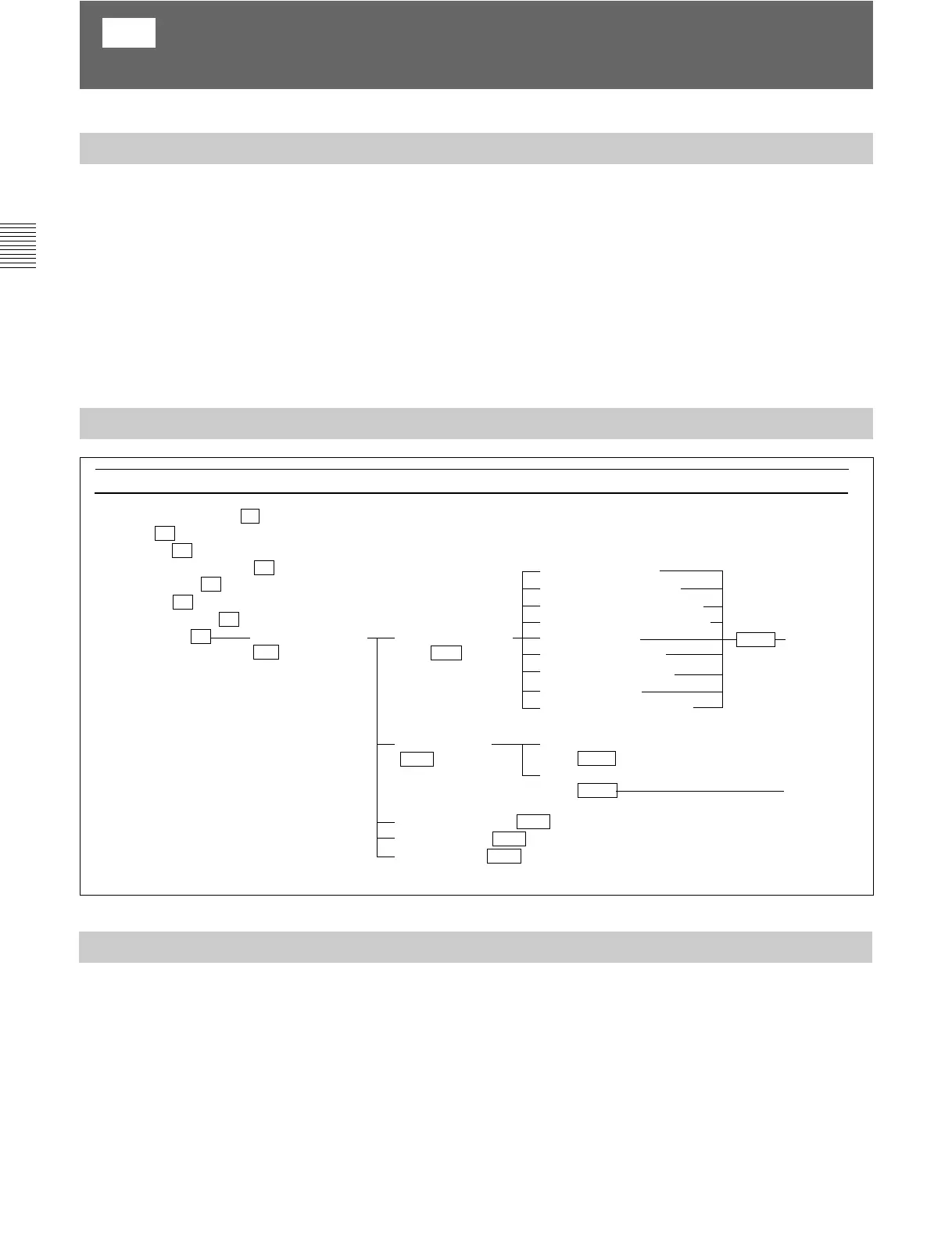

Structure of the EXTEND Menu
Confirmation
message
Confirmation
message
The following six functions can be executed with the
EXTEND menu.
•Loading factory default data for installed boards
into memory (RE-LOAD FACTORY DATA menu)
•Writing monitor setting and adjustment data to
the monitor memory card, or read setting and
adjustment data from the monitor memory card
(MEMORY CARD menu)
•Restarting the monitor (RE-START MONITOR
menu)
•Calibrating the internal signal level (ADJ INT
SIGNAL menu)
•Displaying the menu for maintenance
(MAINTENANCE menu)
To Next Page
