User Manual 4 Mechanical Mounting

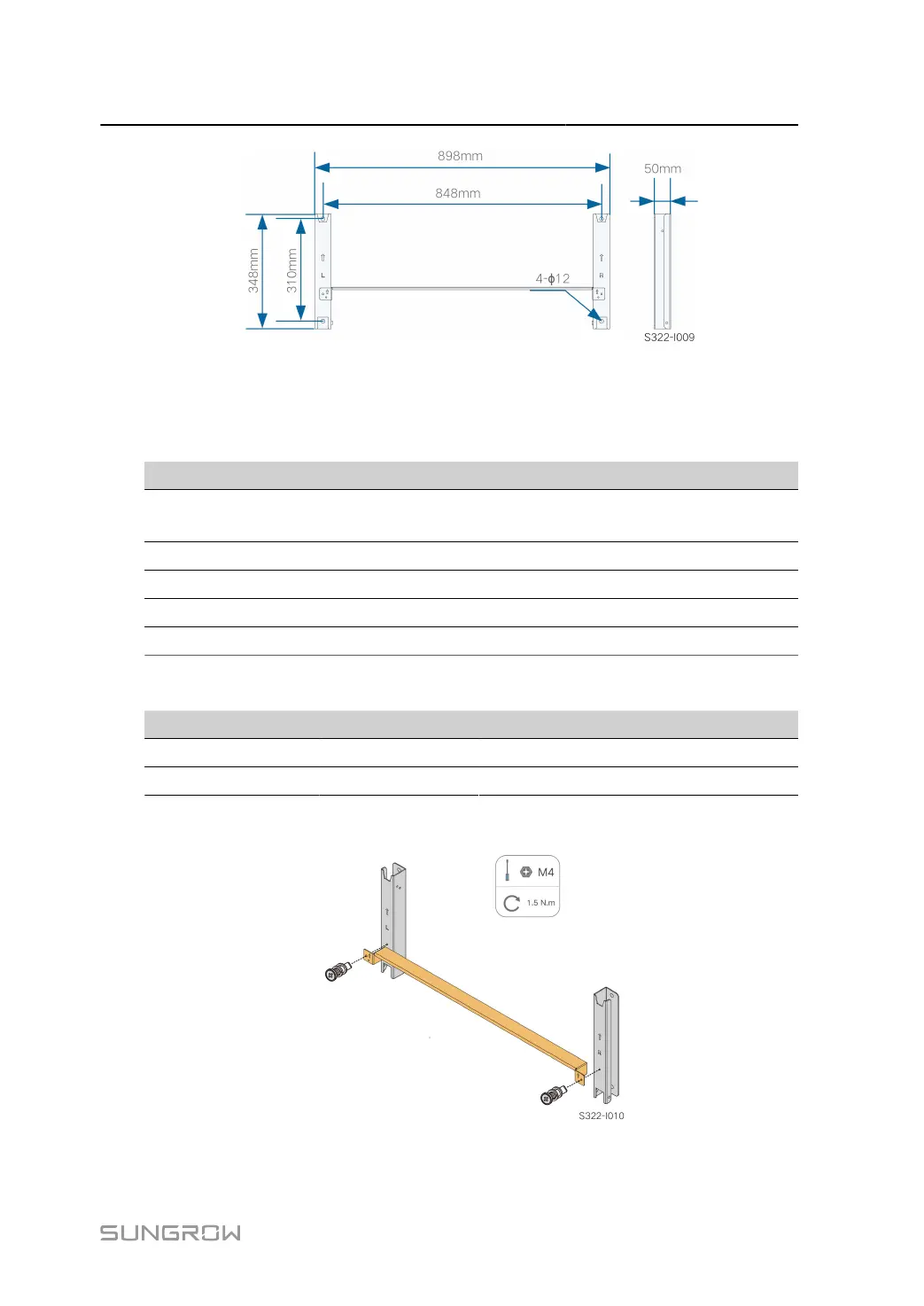

figure 4-1 Dimensions of Mounting-bracket
4.5.1 PV Bracket-Mounted Installation
Tools
Item Specification
Phillips screwdriver / electric screw
driver
M4
Marker -
Level -
Electric drill Drill bit: φ12
Wrench Opening: 16 mm
Spare parts
Item Quantity Specification Source
Grub screw 2 M4×10 Delivery scope
Bolt assembly 4 M10 Delivery scope
step 1 Assemble the mounting-bracket.
27
