5 Electrical Connection User Manual
Open Circuit Voltage Limit Max. Current for Input Connector
1100 V 20 A

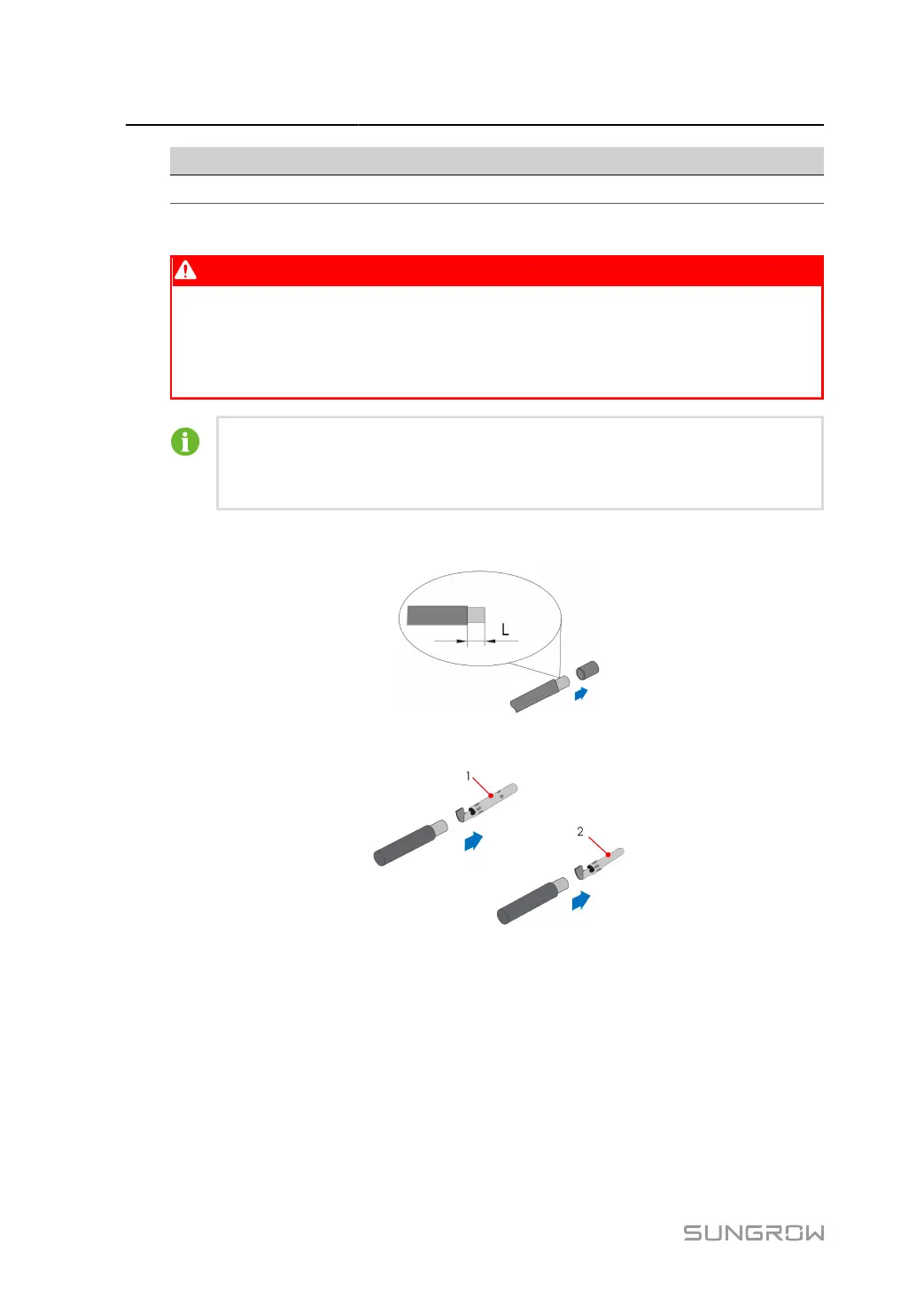

5.7.2 Assembling PV Connectors
DANGER
High voltage may be present in the inverter!
Ensure all cables are voltage-free before performing electrical operations.
Do not connect the AC circuit breaker before finishing electrical connection.
SUNGROW provides corresponding PV connectors in the scope of delivery for quick
connection of PV inputs. To ensure IP66 protection, use only the supplied connector
or the connector with the same ingress of protection.
step 1 Strip the insulation from each DC cable by 8 mm ~ 10 mm.
step 2
Assemble the cable ends with the crimping pliers.
1: Positive crimp contact
2:
Negative crimp contact
step 3
Lead the cable through the cable gland, and insert the crimp contact into the insulator until it snaps
into place. Gently pull the cable backward to ensure firm connection.
60

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Sungrow SG125CX-P2 and is the answer not in the manual?

Sungrow SG125CX-P2 Specifications

General IconGeneral
Max. DC Voltage1100 V
Rated AC Power125 kW
Max. DC Power150 kW
Start-up Voltage200 V
MPPT Voltage Range200 V - 1000 V
Max. Short-circuit Current per MPPT40 A
Max. AC Power137.5 kW
Max. AC Current198 A
Rated AC Voltage400 V
Rated Grid Frequency50/60 Hz
Total Harmonic Distortion<3%
Power Factor Adjustment Range0.8 leading to 0.8 lagging
DC Connection TypeMC4
Protection ClassIP66
Maximum DC Input Power150 kW
DC Inputs per MPPT2
Cooling MethodSmart forced air cooling
Operating Temperature Range-25°C to +60°C
Humidity Range0 - 100%
CommunicationRS485, Ethernet
