5 Mechanical Installation User Manual
24
5.3 Installing the Inverter
Inverter is installed onto the wall by means of backplate enclosed in the packaging.
If you don’t use the supplied backplate, you may drill holes refer to its dimension
below.

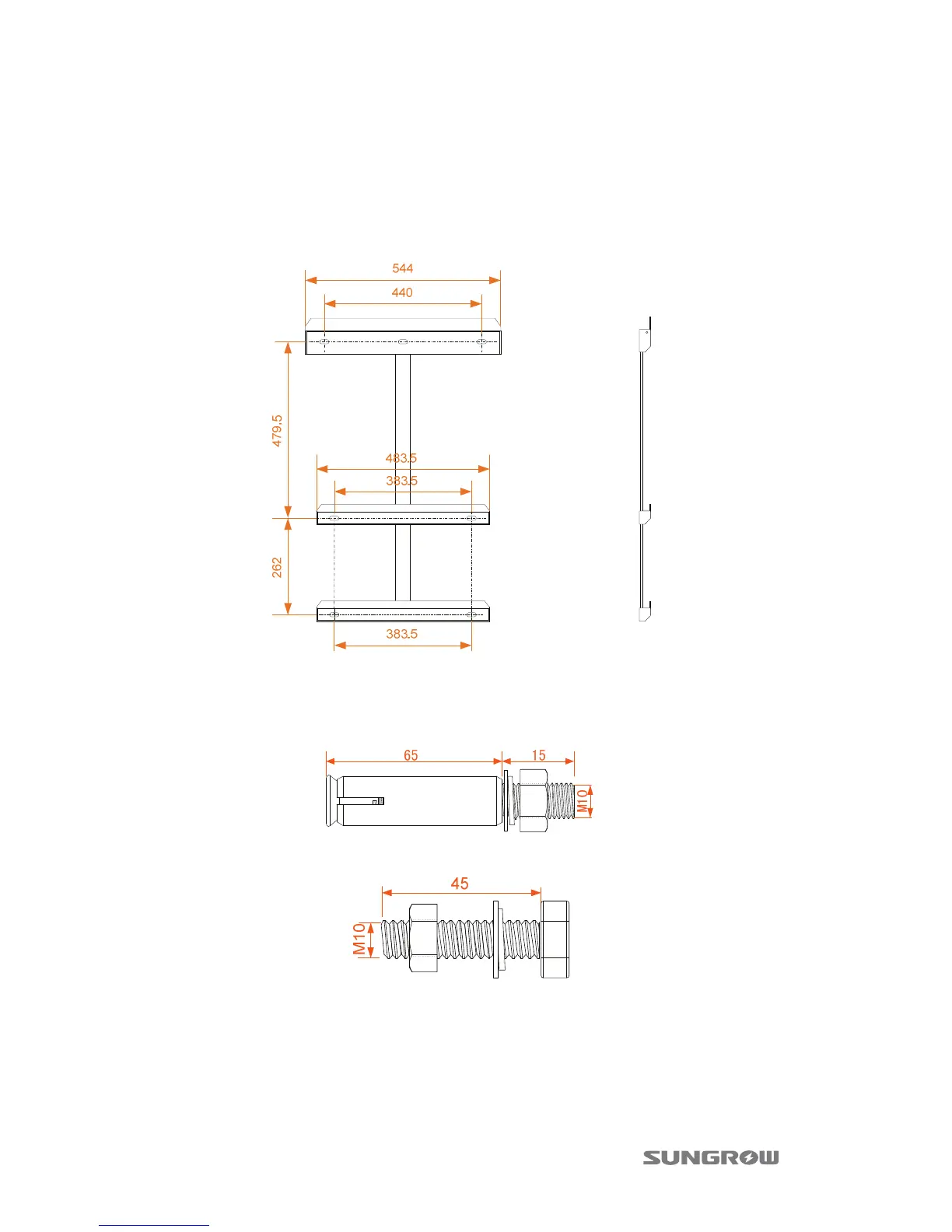

Fig. 5-1 Dimensions of Backplate(unit: mm)
There are two sets of stainless fasteners supplied for attaching the backplate to
concrete wall and metal frame.
Fig. 5-2 Dimensions of Expansion Bolt Set for Concrete Wall (unit: mm)
Fig. 5-3 Dimensions of Fastener Set for Metal Frame(unit: mm)
