6.5.2 Second Protective Earth Terminal
The inverter is equipped with second protective earth terminal as specified in EN
50178.
Second PE Terminals
There are two second PE terminals on the right side of the inverter. Users may
choose one to connect PE connection.

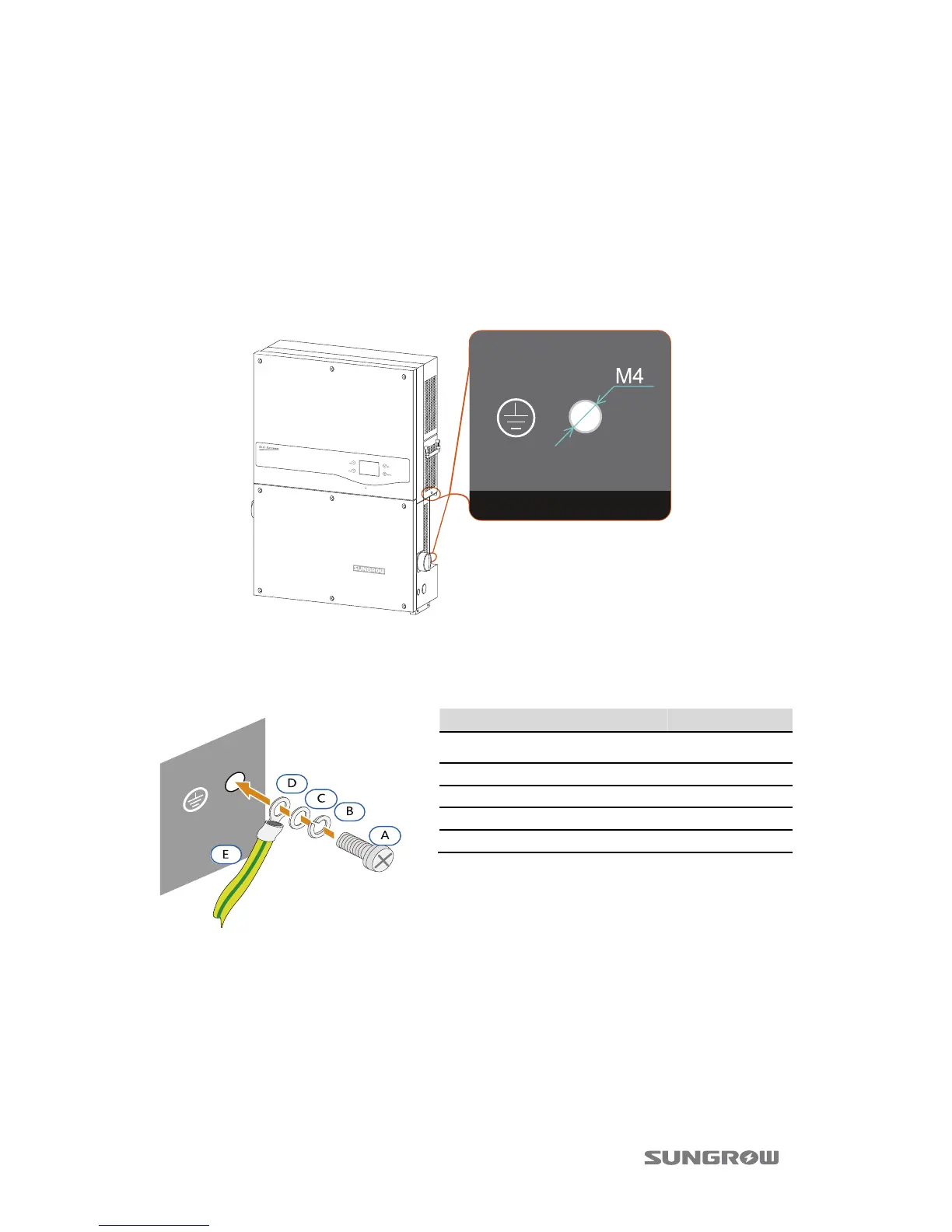

Fig. 6-5 Second PE Terminals
Second PE Connection
Fig. 6-6 Connection of the Second PE Connection
*The connection parts are not included in the delivery scope.
Item Description Remar
To Next Page
