5.3.3 Installing on the Floor

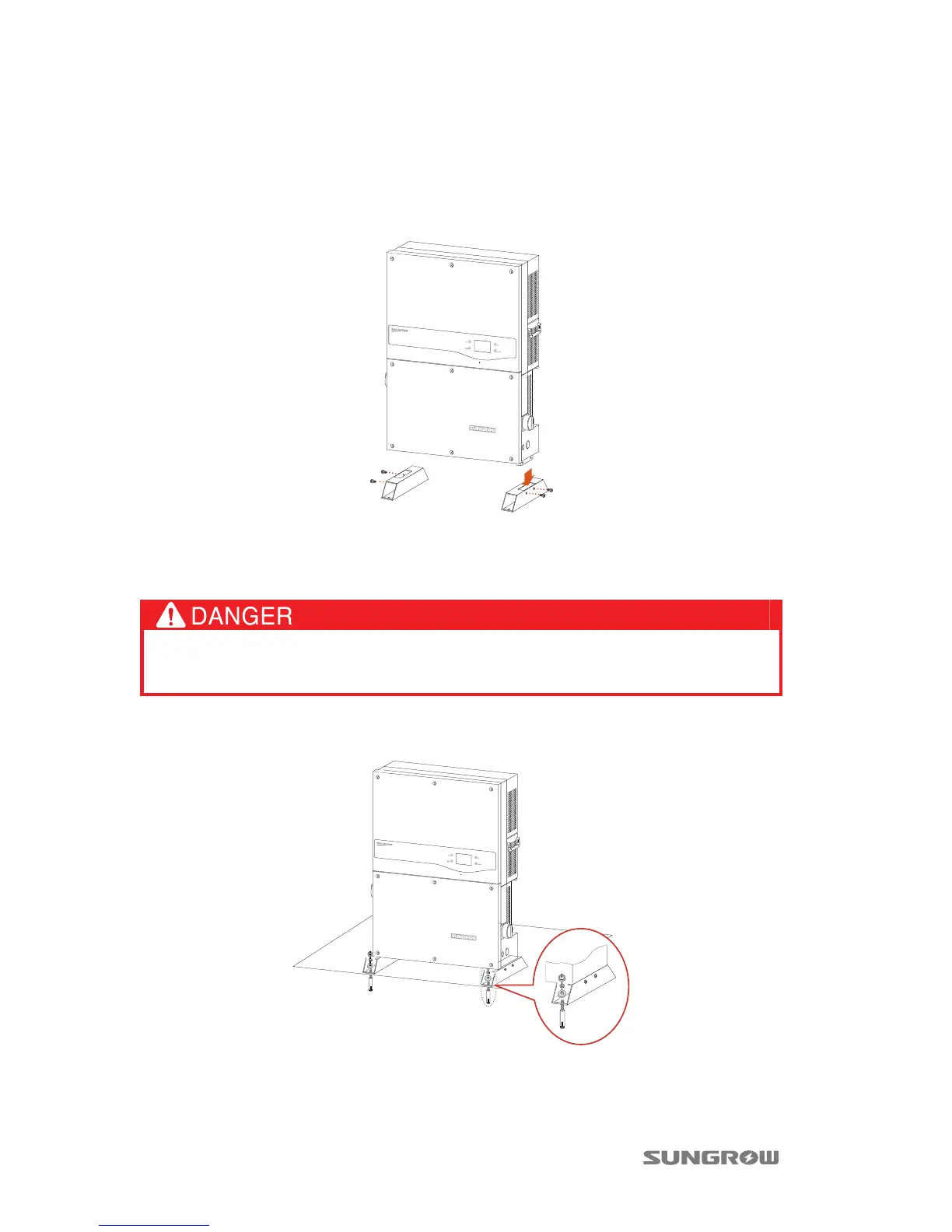

Step 1 Remove floor bracket and fasteners from the packaging.
Step 2 Fixing the floor bracket to the inverter.
Step 3 Place the floor bracket onto the chosen floor position.
Step 4 Mark the positions to drill holes using the floor bracket as the template.
Step 5 Drill holes according to the marks made before.
In order to avoid electrical shock or other injury, inspect existing electronic
or plumbing installations before drilling holes.
Step 6 Attach the floor bracket to the floor firmly with the supplied expansion bolt
set. The torque for fastening the nut is 35 Nm.
Step 7 Assemble the cap onto the inverter for better weatherproof function.
