User Manual 8 Disconnecting, Dismantling and Disposing the Inverter
55
8.2 Dismantling the Inverter

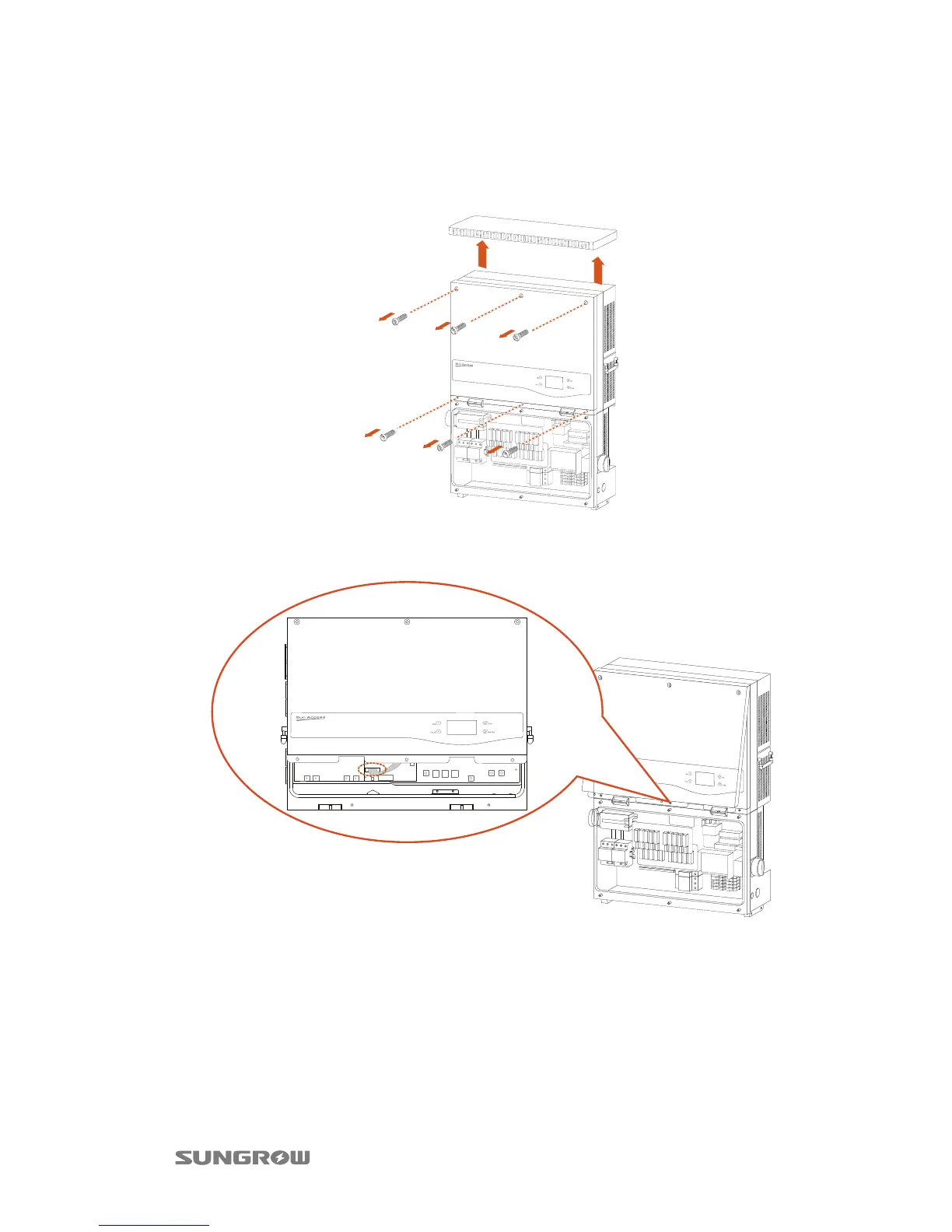

1. Remove the cap and loose the screws from the upper lid.
2. Lift up the upper lid slightly, release the locking part of the ribbing of the LED
screen and remove the lid.
3. Disconnect all connection cables between the electrical cabinet and the
combiner box and insert all cables in the wire mount.
To Next Page
